# INTEL CORPORATION
PREMIERE/PCI (P5-PCI BATMAN)
Processor Pentium
Processor 60/66MHz
Speed
Chip Set Intel
Max. Onboard 128MB
DRAM
Cache 256KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface, IDE
interfaces (2), parallel port, serial ports (2)
NPU Options None

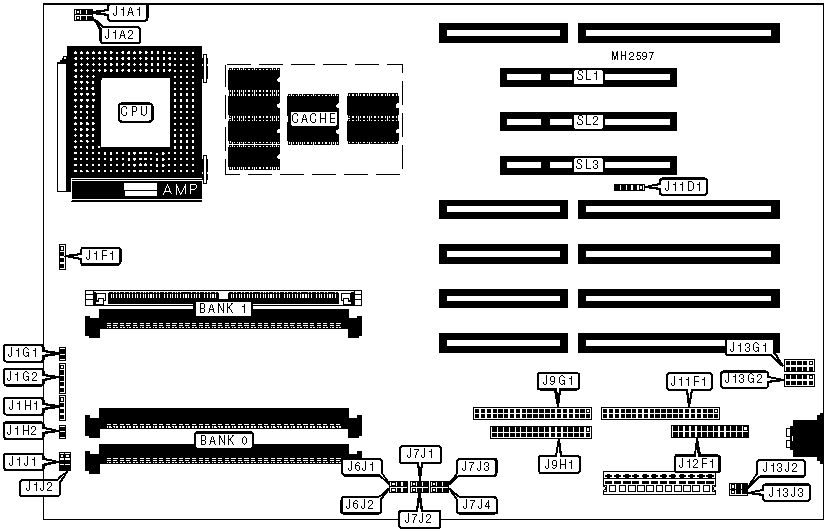

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Chassis fan power | J1A1 | IDE interface | J9G1 |
| (fast) | | | |
|-------------------+----------+------------------+----------|
| Chassis fan power | J1A2 | Floppy drive | J9H1 |
| (slow) | | interface | |
|-------------------+----------+------------------+----------|
| Speaker | J1F1 | Auxiliary power | J11D1 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Power LED & | J1G2 | IDE interface | J11F1 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Reset switch | J1G1 | Parallel port | J12F1 |
|-------------------+----------+------------------+----------|
| IDE interface LED | J1H1 | Serial port 1 | J13G1 |
|-------------------+----------+------------------+----------|
| Turbo LED | J1H2 | Serial port 2 | J13G2 |
|-------------------+----------+------------------+----------|
| Turbo switch | J1J1 | 32-bit PCI slots | SL1 - |
| | | | SL3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS memory normal operation | J6J1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J6J1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash recovery select normal | J6J2 | pins 2 & 3 |
| | mode | | closed |
|---+----------------------------------+--------+------------|
| | Flash recovery select recovery | J6J2 | pins 1 & 2 |
| | mode | | closed |
|---+----------------------------------+--------+------------|
| » | Setup entry enabled | J7J1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Setup entry disabled | J7J1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS write protect enabled | J7J2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS write protect | J7J2 | pins 1 & 2 |
| | disabled | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J7J3 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J7J3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Password enabled | J7J4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password disabled | J7J4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J13J3 | Open |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 512K x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 1M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 12MB | (2) 512K x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 2M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 20MB | (2) 512K x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 4M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 36MB | (2) 512K x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 |
|------------------+--------------------+--------------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 8M x 36 | (2) 512K x 36 |
|------------------+--------------------+--------------------|
| 68MB | (2) 512K x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: This board is factory installed with 256KB cache. It |
| is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J1J2 |
|----------------------------+-------------------------------|
| 60MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 66MHz | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | J13j2 |
|----------------------------+-------------------------------|
| 5v (60MHz) | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 5.27v (66MHz) | pins 2 & 3 closed |
+------------------------------------------------------------+
