# ICL
TEAMSERVER F5/60
Processor Pentium
Processor 60MHz
Speed
Chip Set Unidentified
Max. Onboard 384MB (256MB on external memory card)
DRAM
Cache 256KB (on external cache card)
BIOS Unidentified
Dimensions 355mm x 305mm
I/O Options PS/2 mouse port, parallel port, serial ports (2),
VGA port, floppy drive interface, IDE interface,
CPU slot, external memory slot
NPU Options None
IMG IMG 1
+------------------------------------------------------------+

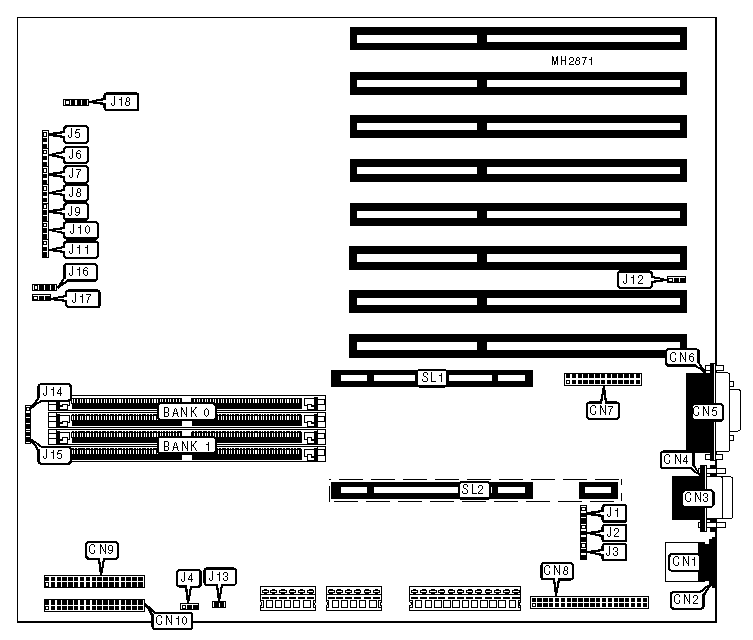

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN1 | IDE interface | CN8 |
|------------------+----------+-------------------+----------|
| Keyboard | CN2 | Floppy drive | CN9 |
| connector | | interface | |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN3 | Speaker | J14 |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN4 | Reset switch | J15 |
|------------------+----------+-------------------+----------|
| Parallel port | CN5 | External memory | SL1 |
| | | card slot | |
|------------------+----------+-------------------+----------|
| VGA port | CN6 | External CPU card | SL2 |
| | | slot | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | CN7 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | CN10 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | On board video controller | J3 | pins 1 & 2 |
| | address select 03C3H | | closed |
|---+----------------------------------+--------+------------|
| | On board video controller | J3 | pins 2 & 3 |
| | address select 046E8H | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS normal operation | J2 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS flash programming | J2 | pins 1 & 2 |
| | enabled | | closed |
|---+----------------------------------+--------+------------|
| » | On board VRAM memory size select | J1 | pins 1 & 2 |
| | 512KB | | closed |
|---+----------------------------------+--------+------------|
| | On board VRAM memory size select | J1 | pins 2 & 3 |
| | 1MB | | closed |
|---+----------------------------------+--------+------------|
| » | Boot block normal operation | J4 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Boot block write enabled | J4 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Flash BIOS normal operation | J5 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS boot block disabled | J5 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | On board VGA disabled | J6 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | On board VGA enabled | J6 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Floppy drive normal operation | J7 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Floppy drive write protected | J7 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J8 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J8 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Password disabled | J9 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password enabled | J9 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | j12 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | j13 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | j16 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | j17 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | j18 | N/A |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Bank | SIMM installed | J10 | J11 |
|--------+-----------------+----------------+----------------|
| Bank 0 | 1M x 36 or 2M x | pins 1 & 2 | N/A |
| | 36 | closed | |
|--------+-----------------+----------------+----------------|
| Bank 0 | 4M x 36 or 8M x | pins 2 & 3 | N/A |
| | 36 | closed | |
|--------+-----------------+----------------+----------------|
| Bank 1 | 1M x 36 or 2M x | N/A | pins 1 & 2 |
| | 36 | | closed |
|--------+-----------------+----------------+----------------|
| Bank 1 | 4M x 36 or 8M x | N/A | pins 2 & 3 |
| | 36 | | closed |
+------------------------------------------------------------+
IMG IMG 2
+------------------------------------------------------------+

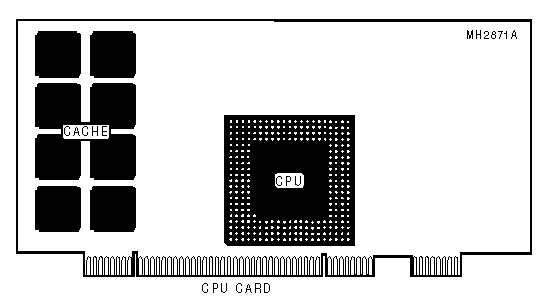

| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB cache is factory installed and is not |
| configurable. |
+------------------------------------------------------------+
IMG IMG 3
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 1M x 36 | (2) 1M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 2M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 24MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 24MB | (2) 1M x 36 | (2) 2M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | (2) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 1M x 36 | (2) 1M x | (2) 2M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 2M x 36 | (2) 2M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (2) 4M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 40MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | (2) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (2) 1M x 36 | (2) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 1M x 36 | (2) 1M x | (2) 2M x | (2) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 1M x 36 | (2) 1M x | (2) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 2M x 36 | (2) 2M x | (2) 2M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 48MB | (2) 2M x 36 | (2) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 56MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | (2) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 2M x 36 | (2) 2M x | (2) 2M x | (2) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 2M x 36 | (2) 2M x | (2) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 4M x 36 | (2) 4M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (2) 8M x 36 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 72MB | (2) 1M x 36 | (2) 8M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 1M x 36 | (2) 1M x | (2) 8M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 80MB | (2) 2M x 36 | (2) 8M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 88MB | (2) 1M x 36 | (2) 1M x | (2) 1M x | (2) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 2M x 36 | (2) 2M x | (2) 8M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 4M x 36 | (2) 4M x | (2) 4M x | NONE |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 96MB | (2) 4M x 36 | (2) 8M x | NONE | NONE |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 112MB | (2) 2M x 36 | (2) 2M x | (2) 2M x | (2) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 4M x 36 | (2) 4M x | (2) 4M x | (2) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (2) 4M x 36 | (2) 4M x | (2) 8M x | NONE |
| | | 36 | 36 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-----------+------------+-----------+-----------+-----------|
| 128MB | (2) 8M x | (2) 8M x | NONE | NONE |
| | 36 | 36 | | |
|-----------+------------+-----------+-----------+-----------|
| 160MB | (2) 4M x | (2) 4M x | (2) 4M x | (2) 8M x |
| | 36 | 36 | 36 | 36 |
|-----------+------------+-----------+-----------+-----------|
| 192MB | (2) 8M x | (2) 8M x | (2) 8M x | NONE |
| | 36 | 36 | 36 | |
|-----------+------------+-----------+-----------+-----------|
| 256MB | (2) 8M x | (2) 8M x | (2) 8M x | (2) 8M x |
| | 36 | 36 | 36 | 36 |
|------------------------------------------------------------|
| Note: System board must be filled with memory before |
| memory card can be used. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Bank | SIMM installed | J1 | J2 | J3 | J4 |
|--------+-------------------+-------+-------+-------+-------|
| Bank 0 | 1M x 36 or 2M x | N/A | N/A | N/A | 1 & 2 |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 0 | 4M x 36 or 8M x | N/A | N/A | N/A | 2 & 3 |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 1 | 1M x 36 or 2M x | N/A | N/A | 1 & 2 | N/A |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 1 | 4M x 36 or 8M x | N/A | N/A | 2 & 3 | N/A |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 2 | 1M x 36 or 2M x | N/A | 1 & 2 | N/A | N/A |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 2 | 4M x 36 or 8M x | N/A | 2 & 3 | N/A | N/A |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 3 | 1M x 36 or 2M x | 1 & 2 | N/A | N/A | N/A |
| | 36 | | | | |
|--------+-------------------+-------+-------+-------+-------|
| Bank 3 | 4M x 36 or 8M x | 2 & 3 | N/A | N/A | N/A |
| | 36 | | | | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
