# ICL
VALUEPLUS MD/P60 SERIES
Processor Pentium
Processor 60MHz
Speed
Chip Set Intel
Max. Onboard 96MB
DRAM
Cache 256/512KB
BIOS Acer
Dimensions 330mm x 218mm
I/O Options PS/2 mouse port, parallel port, serial ports (2),
32-bit PCI slots (3), floppy drive interface, IDE
interface
NPU Options None

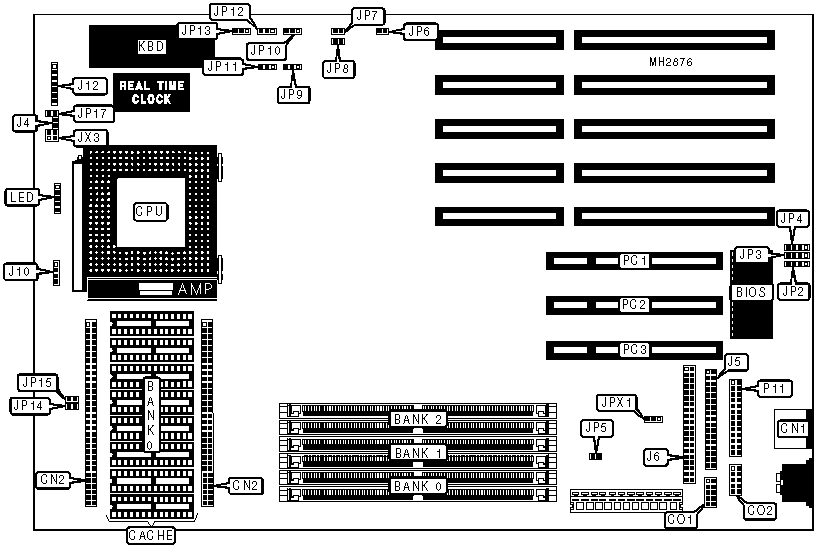

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN1 | Auxiliary | J12 |
| | | keyboard | |
| | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CO1 | +5v ground | JP9 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CO2 | IDE interface | JX3 |
| | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface LED | J4 | Power LED & | LED |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Floppy drive | J5 | Parallel port | P11 |
| interface | | | |
|-------------------+----------+------------------+----------|
| IDE interface | J6 | 32-bit PCI slots | PC1 - |
| | | | PC3 |
|-------------------+----------+------------------+----------|
| Chassis fan power | J10 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | On board I/O enabled | JP5 | Closed |
|---+----------------------------------+--------+------------|
| | On board I/O disabled | JP5 | Open |
|---+----------------------------------+--------+------------|
| » | Parallel port bidirectional | JP6 | Closed |
|---+----------------------------------+--------+------------|
| | Parallel port unidirectional | JP6 | Open |
|---+----------------------------------+--------+------------|
| » | Password disabled | JP11 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password enabled | JP11 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Cache type select standard cache | JP13 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Cache type select burst cache | JP13 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Keylock disabled | JP17 | Closed |
|---+----------------------------------+--------+------------|
| | Keylock enabled | JP17 | Open |
|---+----------------------------------+--------+------------|
| » | Ground pin 28 hard disk drive | JPX1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | HALE pin 28 | JPX1 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (2) 1M x 36 | (2) 1M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 1M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 72MB | (2) 1M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 4M x 36 | (2) 1M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 4M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 4M x 36 | (2) 4M x 36 | (2) 4M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | CN2 |
|--------------+--------------------+------------------------|
| 256KB | (8) 32K x 8 | NONE |
|--------------+--------------------+------------------------|
| 512KB | (8) 32K x 8 | Card installed |
|------------------------------------------------------------|
| Note: To use 512KB cache, a cache card must be installed |
| at CN2. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP10 | JP12 |
|------------------+--------------------+--------------------|
| None | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 256KB | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 512KB | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE OE# SIGNAL CONFIGURATION |
|------------------------------------------------------------|
| Size | JP14 | JP15 |
|----------------------+------------------+------------------|
| 256KB cache enabled | Closed | Closed |
|----------------------+------------------+------------------|
| 256KB cache disabled | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| L2 PARITY CHECK CONFIGURATION |
|------------------------------------------------------------|
| Setting | JP7 | JP8 |
|--------------------+-------------------+-------------------|
| Disabled | Closed | Closed |
|--------------------+-------------------+-------------------|
| Enabled | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI IRQ CONFIGURATION (INT B) |
|------------------------------------------------------------|
| IRQ | JP2 |
|----------------------------+-------------------------------|
| Disabled | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| IRQ14 | pins 3 & 4 closed |
|----------------------------+-------------------------------|
| IRQ15 | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI IRQ CONFIGURATION (INT C) |
|------------------------------------------------------------|
| IRQ | JP3 |
|----------------------------+-------------------------------|
| Disabled | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| IRQ11 | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| IRQ15 | pins 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PCI IRQ CONFIGURATION (INT D) |
|------------------------------------------------------------|
| IRQ | JP4 |
|----------------------------+-------------------------------|
| Disabled | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| IRQ10 | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| IRQ15 | pins 3 & 4 closed |
+------------------------------------------------------------+
