# ICL
ERGOPRO D5/60
Processor Pentium
Processor 60/66MHz
Speed
Chip Set OPTI
Max. Onboard 128MB
DRAM
Cache 256KB
BIOS ICL
Dimensions 330mm x 218mm
I/O Options PS/2 mouse port, parallel port, serial ports (2),
VGA port, VGA feature connector, floppy drive
interface, IDE interface, riser slots (2)
NPU Options None

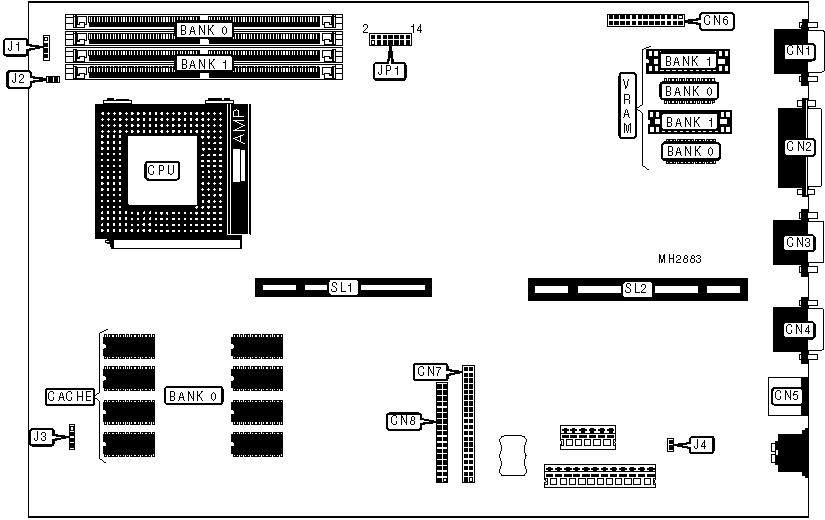

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| VGA port | CN1 | Floppy drive | CN8 |
| | | interface | |
|------------------+----------+-------------------+----------|
| Parallel port | CN2 | IDE interface LED | J1 |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN3 | Chassis fan power | J2 |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN4 | Front panel | J3 |
| | | connector | |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN5 | Chassis fan power | J4 |
|------------------+----------+-------------------+----------|
| VGA feature | CN6 | Riser Card | SL1 & |
| connector | | | SL2 |
|------------------+----------+-------------------+----------|
| IDE interface | CN7 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-------------------------------------+--------+-------------|
| » | On board VGA enabled | JP1 | pins 1 & 2 |
| | | | open |
|---+---------------------------------+--------+-------------|
| | On board VGA disabled | JP1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| » | CMOS memory normal operation | JP1 | pins 3 & 4 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | CMOS memory clear | JP1 | pins 5 & 6 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| » | System lock disabled | JP1 | pins 11 & |
| | | | 12 closed |
|---+---------------------------------+--------+-------------|
| | System lock enabled | JP1 | pins 9 & 10 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| » | Boot block BL RE normal | JP1 | pins 13 & |
| | operation | | 14 open |
|---+---------------------------------+--------+-------------|
| | Boot block BL RE reload enabled | JP1 | pins 13 & |
| | | | 14 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | NONE |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | NONE |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 256KB | (8) 32K x 8 |
|------------------------------------------------------------|
| Note:Cache is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP1 |
|----------------------------+-------------------------------|
| 60MHz | pins 7 & 8 open |
|----------------------------+-------------------------------|
| 66MHz | pins 7 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|--------------+----------------------+----------------------|
| 1MB | (2) 256K X 16 | NONE |
|--------------+----------------------+----------------------|
| 2MB | (2) 256K X 16 | (2) 256K X 16 |
|------------------------------------------------------------|
| Note:Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
