# ICL
TEAMSERVER H53NI
Processor Pentium
Processor 100MHz
Speed
Chip Set Unidentified
Max. Onboard 768MB
DRAM
Cache 512KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options PS/2 mouse port, parallel port, serial ports (2),
floppy drive interface, IDE interface, SCSI
interfaces (2), external memory cards (2), CPU
slots (2) PCI slots (5)
NPU Options None

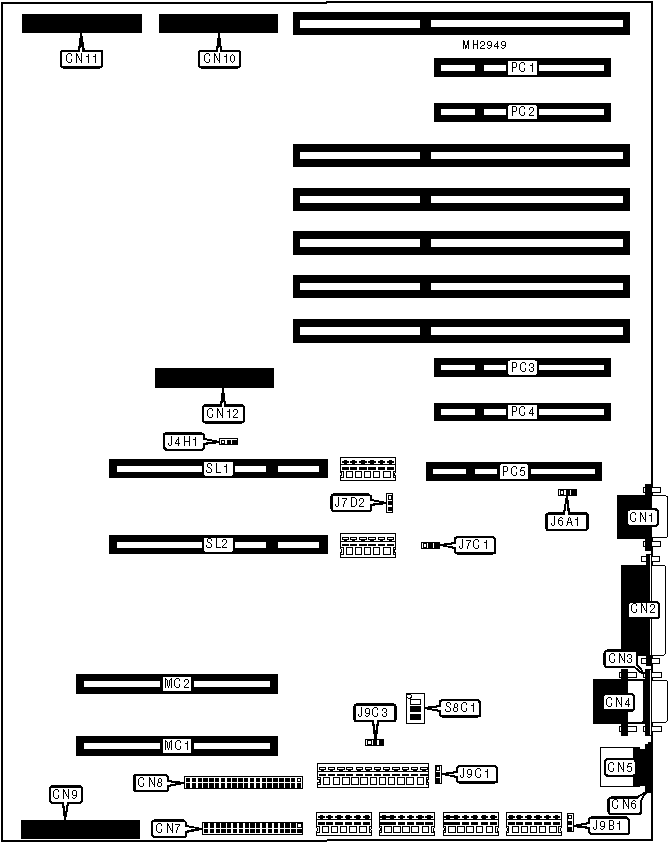

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| VGA port | CN1 | Front panel | CN9 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Parallel port | CN2 | SCSI channel | CN10 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN3 | SCSI channel | CN11 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN4 | Reserved PCI | CN12 |
| | | connector | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN5 | External memory | MC1 & |
| | | card | MC2 |
|-------------------+----------+------------------+----------|
| Keyboard | CN6 | 32-bit PCI slots | PC1 - |
| connector | | | PC5 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN7 | CPU slots | SL1 & |
| interface | | | SL2 |
|-------------------+----------+------------------+----------|
| IDE interface | CN8 | | |
| (not used) | | | |
|------------------------------------------------------------|
| Note: The sizes of CN9 - CN12 are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|-------------------------------+---------------+------------|
| » | TDV enabled | J4H1 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | TDV disabled | J4H1 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Video sleep starting | J6A1 | pins 1 & 2 |
| | address select 46E8 | | closed |
|---+---------------------------+---------------+------------|
| | Video sleep starting | J6A1 | pins 2 & 3 |
| | address select 3C3 | | closed |
|---+---------------------------+---------------+------------|
| » | BIOS write protect | J7C1 | pins 1 & 2 |
| | enabled | | closed |
|---+---------------------------+---------------+------------|
| | BIOS write protect | J7C1 | pins 2 & 3 |
| | disabled | | closed |
|---+---------------------------+---------------+------------|
| » | BIOS boot block disabled | J7D2 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | BIOS boot block enabled | J7D2 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | Floppy drive 1 size | J9B1 | pins 1 & 2 |
| | select 1.44MB | | closed |
|---+---------------------------+---------------+------------|
| | Floppy drive 1 size | J9B1 | pins 2 & 3 |
| | select 2.88MB | | closed |
|---+---------------------------+---------------+------------|
| » | Floppy drive 0 size | J9C1 | pins 1 & 2 |
| | select 1.44MB | | closed |
|---+---------------------------+---------------+------------|
| | Floppy drive 0 size | J9C1 | pins 2 & 3 |
| | select 2.88MB | | closed |
|---+---------------------------+---------------+------------|
| » | Power control enabled | J9C3 | pins 1 & 2 |
| | | | closed |
|---+---------------------------+---------------+------------|
| | Power control disabled | J9C3 | pins 2 & 3 |
| | | | closed |
|---+---------------------------+---------------+------------|
| » | CMOS memory normal | S8C1/1 | Off |
| | operation | | |
|---+---------------------------+---------------+------------|
| | CMOS memory clear | S8C1/1 | On |
|---+---------------------------+---------------+------------|
| » | Password normal operation | S8C1/2 | Off |
|---+---------------------------+---------------+------------|
| | Password clear | S8C1/2 | On |
|---+---------------------------+---------------+------------|
| » | Flash BIOS enabled | S8C1/3 | On |
|---+---------------------------+---------------+------------|
| | Flash BIOS disabled | S8C1/3 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 16MB | (4) 1M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (4) 1M x 36 | (4) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (4) 2M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (4) 1M x 36 | (4) 1M x 36 | (4) 1M x 36 |
|------------+---------------+---------------+---------------|
| 48MB | (4) 1M x 36 | (4) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (4) 2M x 36 | (4) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 64MB | (4) 2M x 36 | (4) 1M x 36 | (4) 1M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (4) 2M x 36 | (4) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 64MB | (4) 4M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 80MB | (4) 1M x 36 | (4) 2M x 36 | (4) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 80MB | (4) 1M x 36 | (4) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 80MB | (4) 4M x 36 | (4) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 96MB | (4) 2M x 36 | (4) 2M x 36 | (4) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (4) 2M x 36 | (4) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 96MB | (4) 4M x 36 | (4) 1M x 36 | (4) 1M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (4) 4M x 36 | (4) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 128MB | (4) 4M x 36 | (4) 2M x 36 | (4) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (4) 4M x 36 | (4) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 128MB | (4) 8M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 144MB | (4) 1M x 36 | (4) 4M x 36 | (4) 4M x 36 |
|------------+---------------+---------------+---------------|
| 144MB | (4) 1M x 36 | (4) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 144MB | (4) 8M x 36 | (4) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 160MB | (4) 2M x 36 | (4) 4M x 36 | (4) 4M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (4) 2M x 36 | (4) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 160MB | (4) 8M x 36 | (4) 1M x 36 | (4) 1M x 36 |
|------------+---------------+---------------+---------------|
| 160MB | (4) 8M x 36 | (4) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 192MB | (4) 4M x 36 | (4) 4M x 36 | (4) 4M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (4) 4M x 36 | (4) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 192MB | (4) 8M x 36 | (4) 2M x 36 | (4) 2M x 36 |
|------------+---------------+---------------+---------------|
| 192MB | (4) 8M x 36 | (4) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 256MB | (4) 8M x 36 | (4) 4M x 36 | (4) 4M x 36 |
|------------+---------------+---------------+---------------|
| 256MB | (4) 8M x 36 | (4) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 272MB | (4) 1M x 36 | (4) 8M x 36 | (4) 8M x 36 |
|------------+---------------+---------------+---------------|
| 288MB | (4) 2M x 36 | (4) 8M x 36 | (4) 8M x 36 |
|------------+---------------+---------------+---------------|
| 320MB | (4) 4M x 36 | (4) 8M x 36 | (4) 8M x 36 |
|------------+---------------+---------------+---------------|
| 384MB | (4) 8M x 36 | (4) 8M x 36 | (4) 8M x 36 |
|------------------------------------------------------------|
| Note: To use 768MB, install two memory cards. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 512KB cache is factory installed. The location is |
| unidentified. |
+------------------------------------------------------------+
