# KLH
80386SX
Processor 80386SX
Processor Unidentified
Speed
Chip Set Unidentified
Max. Onboard 8MB
DRAM
Cache None
BIOS Unidentified
Dimensions 395mm x 393mm
I/O Options PS/2 mouse port, parallel port, serial port, IDE
interface, VGA port, floppy drive connnector
NPU Options 80387SX

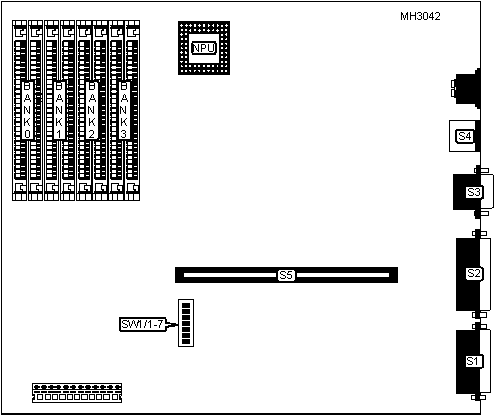

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| VGA port | S1 | PS/2 mouse | S4 |
| | | interface | |
|----------------+----------+---------------------+----------|
| Parallel port | S2 | Riser Card | S5 |
|----------------+----------+---------------------+----------|
| Serial port | S3 | | |
|------------------------------------------------------------|
| Note: The location on HDD and of the floppy drive |
| connector are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Switch | Position |
|----------------------------------------+--------+----------|
| » | Factory configured - do not alter | SW1/1 | N/A |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | SW1/4 | Off |
|---+------------------------------------+--------+----------|
| » | Factory configured - do not alter | SW1/5 | Off |
|---+------------------------------------+--------+----------|
| » | PS/2 style monitor modes | SW1/6 | On |
|---+------------------------------------+--------+----------|
| | PC/AT style monitor modes | SW1/6 | Off |
|---+------------------------------------+--------+----------|
| » | PS/2 fixed frequency display | SW1/7 | Off |
| | timing | | |
|---+------------------------------------+--------+----------|
| | Older multi-frequency display | SW1/7 | On |
| | timing | | |
|------------------------------------------------------------|
| Note: The position of on and off are unidentified |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 2.5MB | (2) 256K x | (2) 1M x 9 | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 3MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 4.5MB | (2) 1M x 9 | (2) 1M x 9 | (2) 256K x | NONE |
| | | | 9 | |
|-------+-------------+------------+------------+------------|
| 5MB | (2) 256K x | (2) 256K x | (2) 1M x 9 | (2) 1M x 9 |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON-BOARD VGA CONFIGURATION |
|------------------------------------------------------------|
| Setting | SW1/1 | SW1/2 | SW1/3 |
|---------------+--------------+--------------+--------------|
| Enabled | On | On | Off |
|---------------+--------------+--------------+--------------|
| Disabled | Off | Off | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TECHNICAL NOTE |
|------------------------------------------------------------|
| Note: Switch 1 on SW1 is unidentified. |
+------------------------------------------------------------+
