# INTEL CORPORATION
ADVANCED/MA (MONACO)
Processor Pentium
Processor 75/90/100/120/133/166MHz
Speed
Chip Set Unidentified
Max. Onboard 128MB
DRAM
Cache 256KB
BIOS Intel
Dimensions 254mm x 218mm
I/O Options PS/2 mouse port, parallel port, serial ports (2),
VGA port, VGA feature connector, IDE interface,
Wave table connector, Audio I/O connector, CD ROM
connector, Green PC connector, floppy drive
interface, Riser slot
NPU Options None

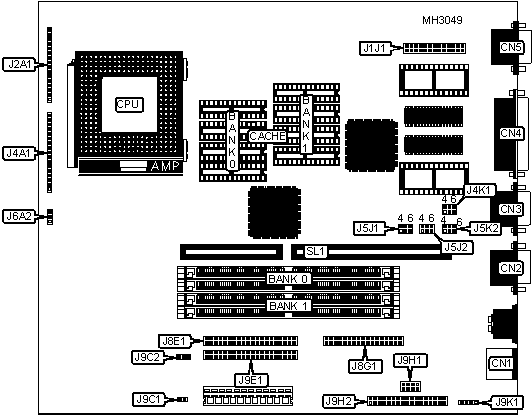

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------+-------------+------------------+------------|
| PS/2 mouse | CN1 | Chassis fan | J4A1 (pins |
| port | | power | 10 - 12) |
|--------------+-------------+------------------+------------|
| Serial port | CN2 | Speaker | J4A1 (pins |
| 1 | | | 16 & 17) |
|--------------+-------------+------------------+------------|
| Serial port | CN3 | IDE interface | J8E1 |
| 2 | | (secondary) | |
|--------------+-------------+------------------+------------|
| Parallel | CN4 | Floppy drive | J8G1 |
| port | | interface | |
|--------------+-------------+------------------+------------|
| VGA port | CN5 | Green PC | J9C1 |
| | | connector | |
|--------------+-------------+------------------+------------|
| VGA feature | J1J1 | Power supply | J9C2 |
| connector | | control | |
|--------------+-------------+------------------+------------|
| Turbo LED | J2A1 (pins | IDE interface | J9E1 |
| | 1 & 2 ) | (primary) | |
|--------------+-------------+------------------+------------|
| IDE | J2A1 (pins | Wave table | J9H1 |
| interface | 4 - 7) | connector | |
| LED | | | |
|--------------+-------------+------------------+------------|
| Power LED & | J2A1 (pins | Audio I/O | J9H2 |
| keylock | 9 - 13) | connector | |
|--------------+-------------+------------------+------------|
| Reset switch | J2A1 (pins | CD-ROM connector | J9K1 |
| | 15 & 16) | | |
|--------------+-------------+------------------+------------|
| Green PC | J4A1(pins 1 | Riser slot | SL1 |
| connector | & 2) | | |
|--------------+-------------+------------------+------------|
| Green PC LED | J4A1 (pins | | |
| | 4 - 8) | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | CMOS setup access enabled | J4K1 | pins 4 & 5 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS setup access disabled | J4K1 | pins 5 & 6 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | ISA clock speed override select | J4K1 | pins 1 & 2 |
| | 1/3 PCI clock | | closed |
|---+----------------------------------+--------+------------|
| | ISA clock speed override select | J4K1 | pins 2 & 3 |
| | 1/2 PCI clock | | closed |
|---+----------------------------------+--------+------------|
| » | Password Enabled | J5K2 | pins 4 & 5 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password Disabled/Clear | J5K2 | pins 5 & 6 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | J5K2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | J5K2 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | NONE |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | NONE |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | NONE |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 32 | (2) 8M x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 80MB | (2) 2M x 32 | (2) 8M x 32 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 96MB | (2) 4M x 32 | (2) 8M x 32 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
|------------------------------------------------------------|
| Note: EDO DRAM supported. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | J5J1 pins 1 - 3 | J5J1 pins 4 - 6 |
|------------------+--------------------+--------------------|
| 75MHz | pins 1 & 2 closed | pins 4 & 5 closed |
|------------------+--------------------+--------------------|
| 90Mhz | pins 1 & 2 closed | pins 5 & 6 closed |
|------------------+--------------------+--------------------|
| 100MHz | pins 2 & 3 closed | pins 4 & 5 closed |
|------------------+--------------------+--------------------|
| 120MHz | pins 1 & 2 closed | pins 5 & 6 closed |
|------------------+--------------------+--------------------|
| 133MHz | pins 2 & 3 closed | pins 4 & 5 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| » Voltage | J6A2 |
|----------------------------+-------------------------------|
| » | 3.3 v | pins 1 & 2 closed |
|---+------------------------+-------------------------------|
| » | 5 v | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK RATIO CONFIGURATION |
|------------------------------------------------------------|
| Ratio | J5J2 pins 1 - 3 | J5J2 pins 4 - 6 |
|------------------+--------------------+--------------------|
| 2 | pins 2 & 3 closed | pins 4 & 5 closed |
|------------------+--------------------+--------------------|
| 3/2 | pins 1 & 2 closed | pins 4 & 5 closed |
+------------------------------------------------------------+
