# KLH
MODEL 195
Processor 80286
Processor 8/12MHz
Speed
Chip Set SIS
Max. Onboard 5MB
DRAM
Cache None
BIOS Phoenix
Dimensions 400mm x 400mm
I/O Options Riser slot, VGA port, parallel port, serial ports
(2), IDE interface, floppy drive interface
NPU Options 80287
IMG IMG 1
+------------------------------------------------------------+

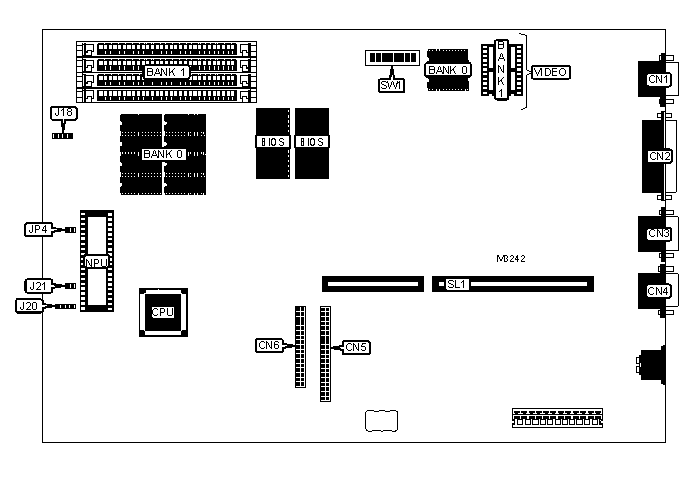

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| VGA port | CN1 | Power LED | J7 |
|-------------------+----------+------------------+----------|
| Parallel port | CN2 | Keylock | J18 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN3 | External battery | J20 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN4 | IDE interface | J21 |
| | | LED | |
|-------------------+----------+------------------+----------|
| IDE interface | CN5 | Riser slot | SL1 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN6 | | |
| interface | | | |
|------------------------------------------------------------|
| Note: The location of J7 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper/Switch | Position |
|---------------------------------+---------------+----------|
| | Monitor type select color | JP4 | Closed |
|---+-----------------------------+---------------+----------|
| | Monitor type select | JP4 | Open |
| | monochrome | | |
|---+-----------------------------+---------------+----------|
| | On board video enabled | SW1/1 | On |
|---+-----------------------------+---------------+----------|
| | On board video disabled | SW1/1 | Off |
|---+-----------------------------+---------------+----------|
| | Monitor type select | SW1/2 | On |
| | Multisync | | |
|---+-----------------------------+---------------+----------|
| | Monitor type select any | SW1/2 | Off |
| | other monitor | | |
|---+-----------------------------+---------------+----------|
| | VGA mode select PS/2 mode | SW1/3 | On |
|---+-----------------------------+---------------+----------|
| | VGA mode select AT VGA mode | SW1/3 | Off |
|---+-----------------------------+---------------+----------|
| | Parallel port enabled | SW1/4 | On |
|---+-----------------------------+---------------+----------|
| | Parallel port disabled | SW1/4 | Off |
|---+-----------------------------+---------------+----------|
| | Serial port 1 enabled | SW1/5 | On |
|---+-----------------------------+---------------+----------|
| | Serial port 1 disabled | SW1/5 | Off |
|---+-----------------------------+---------------+----------|
| | Serial port 2 enabled | SW1/6 | On |
|---+-----------------------------+---------------+----------|
| | Serial port 2 disabled | SW1/6 | Off |
|---+-----------------------------+---------------+----------|
| | Floppy drive interface | SW1/7 | On |
| | enabled | | |
|---+-----------------------------+---------------+----------|
| | Floppy drive interface | SW1/7 | Off |
| | disabled | | |
|---+-----------------------------+---------------+----------|
| | IDE interface enabled | SW1/8 | On |
|---+-----------------------------+---------------+----------|
| | IDE interface disabled | SW1/8 | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+------------------+------------------------|
| 1MB | 1MB | None |
|----------------+------------------+------------------------|
| 2MB | 1MB | (4) 256K x 9 |
|----------------+------------------+------------------------|
| 5MB | 1MB | (4) 1M x 9 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|--------------------+-------------------+-------------------|
| 256KB | 256KB | None |
|--------------------+-------------------+-------------------|
| 512KB | 256KB | 256KB |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
