# IBM CORPORATION
PS/VALUEPOINT 6381 433DX/466DX2
Processor 80486DX/80486DX2
Processor Speed 33/66(internal)MHz
Chip Set Unidentified
Maximum Onboard 64MB
Memory
Cache 128/256KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options Parallel port, PS/2 mouse port, serial ports
(2), VGA port
NPU Options None

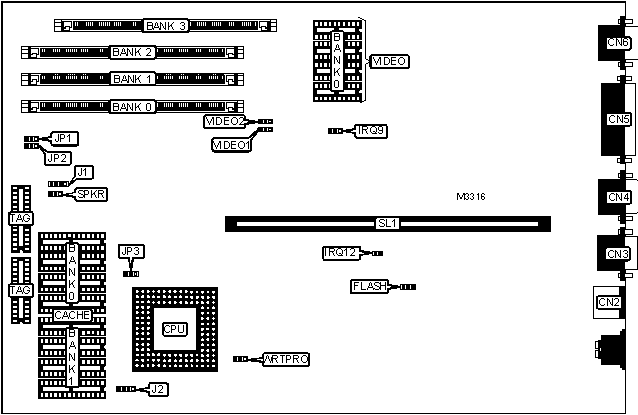

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+---------+------------------+---------|
| PS/2 mouse port | CN2 | Parallel port | CN5 |
|---------------------+---------+------------------+---------|
| Serial port | CN3 | VGA port | CN6 |
|---------------------+---------+------------------+---------|
| Serial port | CN4 | Riser slot | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|--------------------------------------+--------+------------|
| » | Jumper information unavailable | J1 | N/A |
|---+----------------------------------+--------+------------|
| » | Jumper information unavailable | J2 | N/A |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | FLASH | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| | Video IRQ9 enabled | IRQ9 | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Video IRQ9 disabled | IRQ9 | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Mouse IRQ12 enabled | IRQ12 | Closed |
|---+----------------------------------+--------+------------|
| | Mouse IRQ disabled | IRQ12 | Open |
|---+----------------------------------+--------+------------|
| | Beeper enabled | SPKR | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Speaker enabled/beeper disabled | SPKR | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Floppy drive write protect | WRTPRO | Pins 1 & 2 |
| | disabled | | closed |
|---+----------------------------------+--------+------------|
| | Floppy drive write protect | WRTPRO | Pins 2 & 3 |
| | enabled | | closed |
|------------------------------------------------------------|
| Note: The FLASH jumper may not be present on all boards. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+---------------+-------------+------------+----------|
| 1MB | (1) 256K x 36 | None | None | None |
|------+---------------+-------------+------------+----------|
| 2MB | (1) 512K x 36 | None | None | None |
|------+---------------+-------------+------------+----------|
| 2MB | (1) 256K x 36 | (1) 256K x | None | None |
| | | 36 | | |
|------+---------------+-------------+------------+----------|
| 4MB | (1) 256K x 36 | (1) 256K x | (1) 512K x | None |
| | | 36 | 36 | |
|------+---------------+-------------+------------+----------|
| 4MB | (1) 512K x 36 | (1) 512K x | None | None |
| | | 36 | | |
|------+---------------+-------------+------------+----------|
| 4MB | (1) 1M x 36 | None | None | None |
|------+---------------+-------------+------------+----------|
| 6MB | (1) 256K x 36 | (1) 256K x | (1) 1M x | None |
| | | 36 | 36 | |
|------+---------------+-------------+------------+----------|
| 6MB | (1) 512K x 36 | (1) 1M x 36 | None | None |
|------+---------------+-------------+------------+----------|
| 8MB | (1) 256K x 36 | (1) 256K x | (1) 512K x | (1) 1M x |
| | | 36 | 36 | 36 |
|------+---------------+-------------+------------+----------|
| 8MB | (1) 512K x 36 | (1) 512K x | (1) 1M x | None |
| | | 36 | 36 | |
|------+---------------+-------------+------------+----------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | None | None |
|------+---------------+-------------+------------+----------|
| 8MB | (1) 2M x 36 | None | None | None |
|------+---------------+-------------+------------+----------|
| 10MB | (1) 256K x 36 | (1) 256K x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|------+---------------+-------------+------------+----------|
| 12MB | (1) 512K x 36 | (1) 512K x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|------+---------------+-------------+------------+----------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | None |
| | | | 36 | |
|------+---------------+-------------+------------+----------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+---------------+-------------+------------+----------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 | None | None |
|------+---------------+-------------+------------+----------|
| 16MB | (1) 4M x 36 | None | None | None |
|------+---------------+-------------+------------+----------|
| 18MB | (1) 256K x 36 | (1) 1M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+---------------+-------------+------------+----------|
| 18MB | (1) 512K x 36 | (1) 4M x 36 | None | None |
|------+---------------+-------------+------------+----------|
| 20MB | (1) 512K x 36 | (1) 512K x | (1) 2M x | None |
| | | 36 | 36 | |
|------+---------------+-------------+------------+----------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 | None | None |
|------+---------------+-------------+------------+----------|
| 24MB | (1) 512K x 36 | (1) 512K x | (1) 1M x | (1) 4M x |
| | | 36 | 36 | 36 |
|------+---------------+-------------+------------+----------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+---------------+-------------+------------+----------|
| 24MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | None |
| | | | 36 | |
|------+---------------+-------------+------------+----------|
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 512K x | (1) 512K x | (1) 4M x | (1) 4M x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE SIZE |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | None | (2) 32K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (2) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER |
|------------------------------------------------------------|
| Size | JP1 | JP2 | JP3 |
|-------+-----------------+-----------------+----------------|
| None | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 128KB | Pins 1 & 2 | Pins 1 & 2 | Pins 1 & 2 |
| | closed | closed | closed |
|-------+-----------------+-----------------+----------------|
| 256KB | Pins 2 & 3 | Pins 2 & 3 | Pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 512KB | (4) 256K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| ON BOARD VIDEO |
|------------------------------------------------------------|
| Setting | VIDEO1 | VIDEO2 |
|------------------+--------------------+--------------------|
| Enabled | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| Disabled | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
