       # ICL

          TEAMSERVER FI

          Processor        Pentium
          Processor Speed  75/100MHz
          Chip Set         Unidentified
          Video Chip Set   None
          Maximum Onboard  256MB
          Memory
          Maximum Video    None
          Memory
          Cache            256/512KB
          BIOS             Unidentified
          Dimensions       355mm x 304mm
          I/O Options      32-bit PCI slots (3), floppy drive interface,
                           IDE interface, parallel port, VGA port, PS/2
                           mouse port, backplane connector, riser board,
                           cache slot
          NPU Options      None

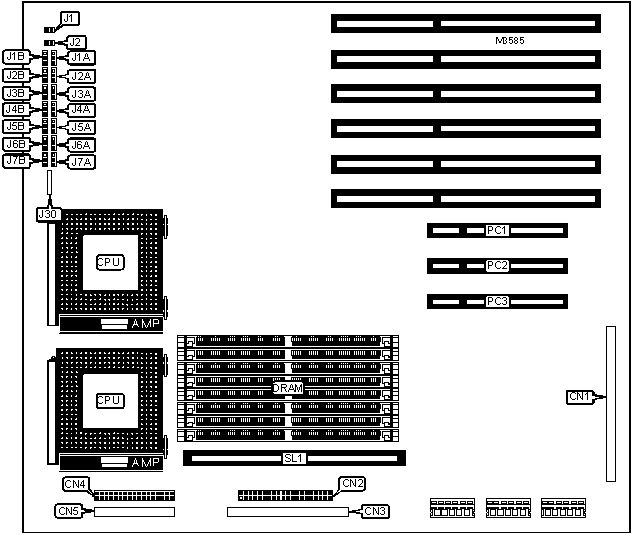

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location | Purpose           | Location |
          |------------------+----------+-------------------+----------|
          | Riser board      |   CN1    | Front panel       |   CN5    |
          |                  |          | connector         |          |
          |------------------+----------+-------------------+----------|
          | IDE interface    |   CN2    | Speaker/reset     |   J30    |
          | (not used)       |          | switch            |          |
          |------------------+----------+-------------------+----------|
          | Backplane        |   CN3    | 32-bit PCI slots  |  PC1 -   |
          | connector        |          |                   |   PC3    |
          |------------------+----------+-------------------+----------|
          | Floppy drive     |   CN4    | Cache slot        |   SL1    |
          | interface        |          |                   |          |
          |------------------------------------------------------------|
          | Note: Parallel port, VGA port and mouse port are located   |
          | on the riser board.                                        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J1   | Unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J2   | Unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J1A  |  Pins 1 & 2  |
          |   | alter                           |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | CMOS memory normal operation    |  J1B  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | CMOS memory clear               |  J1B  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Password normal operation       |  J2B  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Password clear                  |  J2B  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | CPU socket 1 set as primary     |  J3B  |  Pins 1 & 2  |
          |   | socket                          |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | CPU socket 2 set as primary     |  J3B  |  Pins 2 & 3  |
          |   | socket                          |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Monitor type select color       |  J4A  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Monitor type select monochrome  |  J4A  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J4B  |  Pins 1 & 2  |
          |   | alter (disable & ground)        |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J4B  |  Pins 2 & 3  |
          |   | alter (enable & kickstart)      |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Flash BIOS write protect        |  J5A  |  Pins 1 & 2  |
          |   | enabled                         |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Flash BIOS write protect        |  J5A  |  Pins 2 & 3  |
          |   | disabled                        |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Flash BIOS access to system     |  J6A  |  Pins 1 & 2  |
          |   | configuration utility enabled   |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Flash BIOS access to system     |  J6A  |  Pins 2 & 3  |
          |   | configuration utility disabled  |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Flash BIOS normal operation     |  J7A  |  Pins 1 & 2  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          |   | Flash BIOS recovery mode        |  J7A  |  Pins 2 & 3  |
          |   |                                 |       |    closed    |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  J7B  |  Pins 1 & 2  |
          |   | alter                           |       |    closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |   Bank 0    |   Bank 1    |   Bank 2   |   Bank 3   |
          |------+-------------+-------------+------------+------------|
          | 16MB | (2) 2M x 36 |    None     |    None    |    None    |
          |------+-------------+-------------+------------+------------|
          | 32MB | (2) 2M x 36 | (2) 2M x 36 |    None    |    None    |
          |------+-------------+-------------+------------+------------|
          | 32MB | (2) 4M x 36 |    None     |    None    |    None    |
          |------+-------------+-------------+------------+------------|
          | 48MB | (2) 2M x 36 | (2) 2M x 36 |  (2) 2M x  |    None    |
          |      |             |             |     36     |            |
          |------+-------------+-------------+------------+------------|
          | 48MB | (2) 4M x 36 | (2) 2M x 36 |    None    |    None    |
          |------+-------------+-------------+------------+------------|
          | 64MB | (2) 2M x 36 | (2) 2M x 36 |  (2) 2M x  |  (2) 2M x  |
          |      |             |             |     36     |     36     |
          |------+-------------+-------------+------------+------------|
          | 64MB | (2) 4M x 36 | (2) 4M x 36 |    None    |    None    |
          |------+-------------+-------------+------------+------------|
          | 64MB | (2) 8M x 36 |    None     |    None    |    None    |
          |------+-------------+-------------+------------+------------|
          | 64MB | (2) 4M x 36 | (2) 2M x 36 |  (2) 2M x  |    None    |
          |      |             |             |     36     |            |
          |------+-------------+-------------+------------+------------|
          | 80MB | (2) 4M x 36 | (2) 2M x 36 |  (2) 2M x  |  (2) 2M x  |
          |      |             |             |     36     |     36     |
          |------+-------------+-------------+------------+------------|
          | 80MB | (2) 8M x 36 | (2) 2M x 36 |    None    |    None    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 DRAM CONFIGURATION (CON’T)                 |
          |------------------------------------------------------------|
          | Size  |   Bank 0    |   Bank 1   |   Bank 2   |   Bank 3   |
          |-------+-------------+------------+------------+------------|
          | 96MB  | (2) 4M x 36 |  (2) 4M x  |  (2) 4M x  |    None    |
          |       |             |     36     |     36     |            |
          |-------+-------------+------------+------------+------------|
          | 96MB  | (2) 8M x 36 |  (2) 2M x  |  (2) 2M x  |    None    |
          |       |             |     36     |     36     |            |
          |-------+-------------+------------+------------+------------|
          | 96MB  | (2) 8M x 36 |  (2) 4M x  |    None    |    None    |
          |       |             |     36     |            |            |
          |-------+-------------+------------+------------+------------|
          | 112MB | (2) 8M x 36 |  (2) 2M x  |  (2) 2M x  |  (2) 2M x  |
          |       |             |     36     |     36     |     36     |
          |-------+-------------+------------+------------+------------|
          | 128MB | (2) 4M x 36 |  (2) 4M x  |  (2) 4M x  |  (2) 4M x  |
          |       |             |     36     |     36     |     36     |
          |-------+-------------+------------+------------+------------|
          | 128MB | (2) 8M x 36 |  (2) 8M x  |    None    |    None    |
          |       |             |     36     |            |            |
          |-------+-------------+------------+------------+------------|
          | 128MB | (2) 8M x 36 |  (2) 4M x  |  (2) 4M x  |    None    |
          |       |             |     36     |     36     |            |
          |-------+-------------+------------+------------+------------|
          | 160MB | (2) 8M x 36 |  (2) 4M x  |  (2) 4M x  |  (2) 4M x  |
          |       |             |     36     |     36     |     36     |
          |-------+-------------+------------+------------+------------|
          | 192MB | (2) 8M x 36 |  (2) 8M x  |  (2) 8M x  |    None    |
          |       |             |     36     |     36     |            |
          |-------+-------------+------------+------------+------------|
          | 256MB | (2) 8M x 36 |  (2) 8M x  |  (2) 8M x  |  (2) 8M x  |
          |       |             |     36     |     36     |     36     |
          |------------------------------------------------------------|
          | Note: The location of banks 0, 1, 2 & 3 are unidentified.  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CACHE CONFIGURATION                     |
          |------------------------------------------------------------|
          |            Size            |              SL1              |
          |----------------------------+-------------------------------|
          |           256KB            |    256KB module installed     |
          |----------------------------+-------------------------------|
          |           512KB            |    512KB module installed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    CPU SPEED SELECTION                     |
          |------------------------------------------------------------|
          |      Speed       |        J5B         |        J6B         |
          |------------------+--------------------+--------------------|
          |      50MHz       | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |      60MHz       | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |      66MHz       | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     CPU TYPE SELECTION                     |
          |------------------------------------------------------------|
          |            Type            |              J2A              |
          |----------------------------+-------------------------------|
          |            P54C            |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |           P54CS            |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   CPU VOLTAGE SELECTION                    |
          |------------------------------------------------------------|
          |          Voltage           |              J3A              |
          |----------------------------+-------------------------------|
          |       Standard or VR       |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |            VRE             |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+
