# IBM CORPORATION
486SLC2
Processor 486SLC2
Processor Speed Unidentified
Chip Set Unidentified
Video Chip Set None
Maximum Onboard Memory 16MB
Maximum Video Memory None
Cache None
BIOS Award
Dimensions 221mm x 191mm
I/O Options None
NPU Options 80387SX

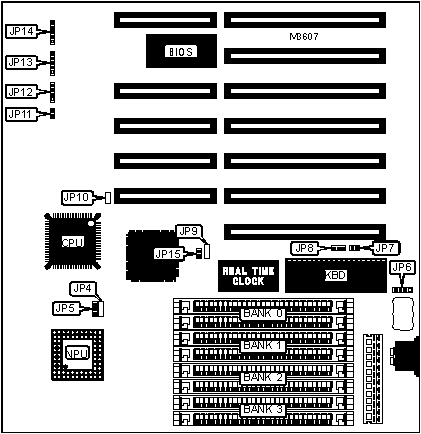

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| External battery | JP6 | Turbo LED | JP13 pins |
| | | | 1 & 2 |
|------------------+----------+------------------+-----------|
| Reset switch | JP11 | Turbo switch | JP13 pins |
| | | | 4 & 5 |
|------------------+----------+------------------+-----------|
| Speaker | JP12 | Power LED & | JP14 |
| | | keylock | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| | NPU synchronous with CPU | JP5 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | NPU asynchronous with CPU | JP5 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Battery type select DS1287 | JP7 | Closed |
|---+---------------------------------+-------+--------------|
| | Battery type select 146818 | JP7 | Open |
|---+---------------------------------+-------+--------------|
| | Monitor type select color | JP8 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select monochrome | JP8 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP9 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP10 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| | Parity check enabled | JP15 | Open |
|---+---------------------------------+-------+--------------|
| | Parity check disabled | JP15 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | None | None | None |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | None | None |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | None | None | None |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | None | None |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 4M x 9 | None | None | None |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | None | None |
+------------------------------------------------------------+
