# INTEL CORPORATION
ADVANCED/EV (REV. 2)
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/200MHz
Chip Set Intel
Video Chip Set S3
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video 2MB
Memory
Cache 256/512/768KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), VESA feature connector, riser slot,
cache slot, IR connector, wave table
connector, audio connector, CD-ROM connector
NPU Options None

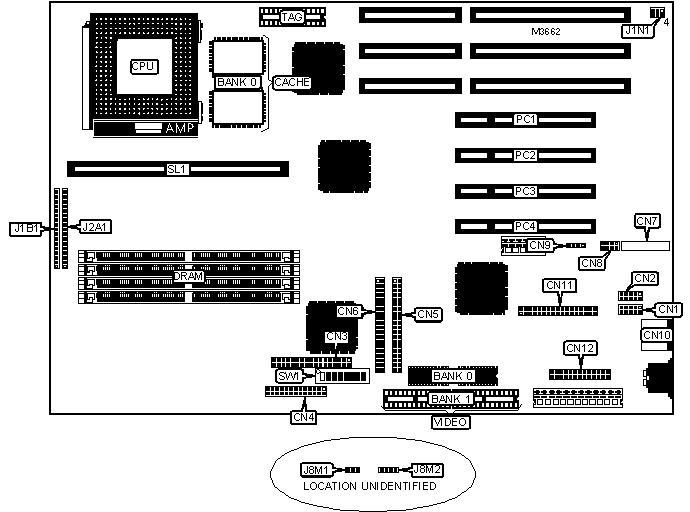

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-----------------+------------|
| Serial port 1 | CN1 | Turbo LED | J1B1 pins |
| | | | 1 & 2 |
|------------------+----------+-----------------+------------|
| Serial port 2 | CN2 | IDE interface | J1B1 pins |
| | | LED | 5 - 8 |
|------------------+----------+-----------------+------------|
| Floppy drive | CN3 | Power LED & | J1B1 pins |
| interface | | keylock | 10 - 15 |
|------------------+----------+-----------------+------------|
| Parallel port | CN4 | Reset switch | J1B1 pins |
| | | | 16 & 17 |
|------------------+----------+-----------------+------------|
| IDE interface 1 | CN5 | Green PC | J2A1 pins |
| | | connector | 1 & 2 |
|------------------+----------+-----------------+------------|
| IDE interface 2 | CN6 | IR connector | J2A1 pins |
| | | | 4 - 8 |
|------------------+----------+-----------------+------------|
| Video connector | CN7 | Chassis fan | J2A1 pins |
| (optional) | | power | 10 - 12 |
|------------------+----------+-----------------+------------|
| Wave table | CN8 | Speaker | J2A1 pins |
| connector | | | 14 - 17 |
|------------------+----------+-----------------+------------|
| CD-ROM interface | CN9 | Soft power | J8M1 |
| | | supply on | |
|------------------+----------+-----------------+------------|
| PS/2 mouse port | CN10 | Soft off/sleep | J8M2 |
|------------------+----------+-----------------+------------|
| Audio connector | CN11 | 32-bit PCI | PC1 - PC4 |
| | | slots | |
|------------------+----------+-----------------+------------|
| VESA feature | CN12 | Cache slot | SL1 |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | Flash BIOS normal operation | J1N1 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Flash BIOS recovery mode | J1N1 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| » | Password normal operation | SW1/3 | Off |
|---+------------------------------+-------+-----------------|
| | Password clear | SW1/3 | On |
|---+------------------------------+-------+-----------------|
| » | CMOS memory normal operation | SW1/4 | Off |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | SW1/4 | On |
|---+------------------------------+-------+-----------------|
| » | Setup access enabled | SW1/5 | Off |
|---+------------------------------+-------+-----------------|
| | Setup access disabled | SW1/5 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 1M x 32 | (2) 8M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+----------------------+---------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
|---------------+----------------------+---------------------|
| 80MB | (2) 2M x 32 | (2) 8M x 32 |
|---------------+----------------------+---------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|---------------+----------------------+---------------------|
| 96MB | (2) 4M x 32 | (2) 8M x 32 |
|---------------+----------------------+---------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. The location of banks 0 & |
| 1 are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | SL1 | TAG |
|--------+---------------+--------------------+--------------|
| 256KB | (2) 32K x 32 | None | (1) 32K x 8 |
|--------+---------------+--------------------+--------------|
| 256KB | None | 256KB module | None |
| | | installed | |
|--------+---------------+--------------------+--------------|
| 512KB | None | 512KB module | None |
| | | installed | |
|--------+---------------+--------------------+--------------|
| 512KB | (2) 32K x 32 | 256KB module | (1) 32K x 8 |
| | | installed | |
|--------+---------------+--------------------+--------------|
| 768KB | (2) 32K x 32 | 512KB module | (1) 32K x 8 |
| | | installed | |
|------------------------------------------------------------|
| Note: Bank 0 and the TAG are optional and may not be |
| present on all boards. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+------------------+------------------------|
| 1MB | 1MB | None |
|----------------+------------------+------------------------|
| 2MB | 1MB | (2) 256K x 16 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock | Multiplier | J1N1 | SW1/6 | SW1/7 | SW1/8 |
| speed | speed | | | | | |
|--------+-------+------------+------+-------+-------+-------|
| 75MHz | 50MHz | 1.5x | 4 & | Off | On | Off |
| | | | 5 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 90MHz | 60MHz | 1.5x | 4 & | Off | Off | Off |
| | | | 5 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 100MHz | 66MHz | 1.5x | 4 & | Off | On | On |
| | | | 5 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 120MHz | 60MHz | 2x | 4 & | On | Off | Off |
| | | | 5 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 133MHz | 66MHz | 2x | 4 & | On | On | On |
| | | | 5 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 150MHz | 60MHz | 2.5x | 5 & | On | Off | Off |
| | | | 6 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 166MHz | 66MHz | 2.5x | 5 & | On | Off | Off |
| | | | 6 | | | |
|--------+-------+------------+------+-------+-------+-------|
| 200MHz | 66MHz | 3x | 5 & | Off | On | On |
| | | | 6 | | | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE SELECTION |
|------------------------------------------------------------|
| Voltage | SW1/2 |
|-------------------------------+----------------------------|
| 3.3v - 3.3465v | Off |
|-------------------------------+----------------------------|
| 3.465v - 3.63v | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU ISA BUS CLOCK SELECTION |
|------------------------------------------------------------|
| Clock speed | Bus speed | SW1/1 |
|----------------------+--------------------+----------------|
| | 50MHz | 8.33MHz | Off/On |
|----+-----------------+--------------------+----------------|
| » | 60MHz | 7.5MHz | Off |
|----+-----------------+--------------------+----------------|
| | 60MHz | 10MHz | On |
|----+-----------------+--------------------+----------------|
| » | 66MHz | 8.25MHz | Off |
|----+-----------------+--------------------+----------------|
| | 66MHz | 11MHz | On |
+------------------------------------------------------------+
