# INTEL CORPORATION
ADVANCED/ML
Processor Pentium
Processor Speed 75/90/100/120/133/150/166MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Phoenix
Dimensions 304mm x 178mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector
NPU Options None

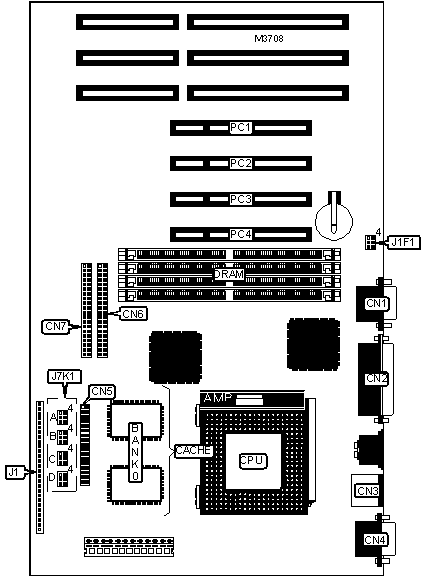

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN1 | Reset switch | J1 pins |
| | | | 4 & 5 |
|-------------------+----------+------------------+----------|
| Parallel port | CN2 | Power LED & | J1 pins |
| | | keylock | 6 - 10 |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN3 | IDE interface | J1 pins |
| | | LED | 11 - 14 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN4 | Green PC | J1 pins |
| | | connector | 15 - 19 |
|-------------------+----------+------------------+----------|
| Floppy drive | CN5 | IR connector | J1 pins |
| interface | | | 20 - 25 |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN6 | Speaker | J1 pins |
| | | | 26 - 29 |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN7 | 32-bit PCI slots | PC1 - |
| | | | PC4 |
|-------------------+----------+------------------+----------|
| Chassis fan power | J1 pins | | |
| | 1 - 3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Flash BIOS normal operation | J1F1 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS recovery mode | J1F1 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Flash BIOS write protect enabled | J1F1 | Pins 4 & 5 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS write protect disabled | J1F1 | Pins 5 & 6 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Password normal operation | J7K1A | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Password clear | J7K1A | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | J7K1A | Pins 4 & 5 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | J7K1A | Pins 5 & 6 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Setup access enabled | J7K1B | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Setup access disabled | J7K1B | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+-----------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|---------------+-----------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|---------------+-----------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|---------------+-----------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|---------------+-----------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|---------------+-----------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|---------------+-----------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|---------------+-----------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|---------------+-----------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|---------------+-----------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x |
| 32 SIMMs. The location of banks 0 & 1 are |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|------------------------+-----------------------------------|
| 256KB | (2) 32K x 32 |
|------------------------+-----------------------------------|
| 512KB | (2) 64K x 32 |
|------------------------------------------------------------|
| Note: Board comes from the factory with 256KB or 512KB |
| cache installed. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | J7K1C | J7K1D |
| | speed | | | |
|------------+----------+------------+------------+----------|
| 75MHz | 50MHz | 1.5x | 2 & 3, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 90MHz | 60MHz | 1.5x | 2 & 3, 4 & | 1 & 2, 4 |
| | | | 5 | & 5 |
|------------+----------+------------+------------+----------|
| 100MHz | 66MHz | 1.5x | 1 & 2, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 120MHz | 60MHz | 2x | 2 & 3, 4 & | 2 & 3, 4 |
| | | | 5 | & 5 |
|------------+----------+------------+------------+----------|
| 133MHz | 66MHz | 2x | 1 & 2, 5 & | 2 & 3, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 150MHz | 60MHz | 2.5x | 2 & 3, 4 & | 2 & 3, 5 |
| | | | 5 | & 6 |
|------------+----------+------------+------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 2 & 3, 5 |
| | | | 6 | & 6 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | J7K1B |
|----------------------------+-------------------------------|
| | OVD | Pins 5 & 6 closed |
|---+------------------------+-------------------------------|
| » | VRE | Pins 4 & 5 closed |
+------------------------------------------------------------+
