# INTEL CORPORATION
AG430HX
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/200MHz
Chip Set Intel
Video Chip Set ATI
Maximum Onboard 128MB (EDO supported)
Memory
Maximum Video 2MB
Memory
Cache 256KB
BIOS Intel
Dimensions 304mm x 243mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), VESA feature connector, VGA port, IR
connector, USB connectors (2), soft off power
supply, wavetable connectors (2), telephony
connector, audio out connector, microphone in
connector, audio in connector, MIDI/game
port, CD-ROM connector
NPU Options None

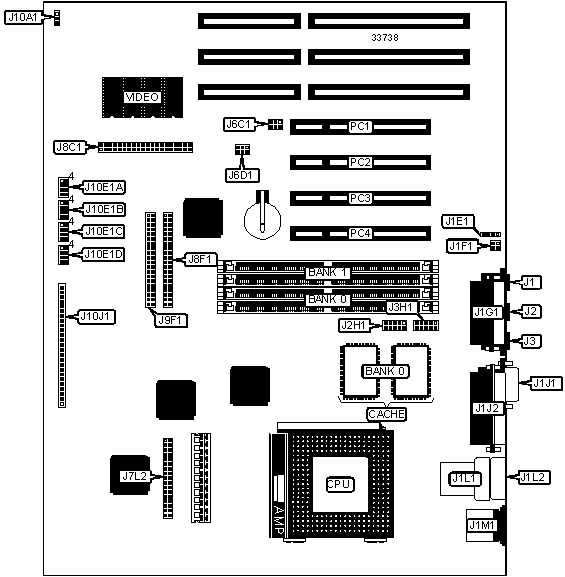

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-----------------+------------|
| Microphone in | J1 | Wavetable | J6D1 |
| connector | | connector | |
|------------------+----------+-----------------+------------|
| Audio in | J2 | Floppy drive | J7L2 |
| connector | | interface | |
|------------------+----------+-----------------+------------|
| Audio out | J3 | VESA feature | J8C1 |
| connector | | connector | |
|------------------+----------+-----------------+------------|
| CD-ROM connector | J1E1 | IDE interface 2 | J8F1 |
|------------------+----------+-----------------+------------|
| Telephony | J1F1 | IDE interface 1 | J9F1 |
| connector | | | |
|------------------+----------+-----------------+------------|
| MIDI/game port | J1G1 | Chassis fan | J10A1 |
| | | power | |
|------------------+----------+-----------------+------------|
| VGA port | J1J1 | Front panel | J10J1 pins |
| | | power switch | 1 & 2 |
|------------------+----------+-----------------+------------|
| Parallel port | J1J2 | Green PC | J10J1 pins |
| | | connector | 3 & 4 |
|------------------+----------+-----------------+------------|
| USB connector | J1L1 | IR connector | J10J1 pins |
| | | | 6 - 11 |
|------------------+----------+-----------------+------------|
| USB connector | J1L2 | IDE interface | J10J1 pins |
| | | LED | 13 - 16 |
|------------------+----------+-----------------+------------|
| PS/2 mouse port | J1M1 | Green PC LED | J10J1 pins |
| | | | 18 - 21 |
|------------------+----------+-----------------+------------|
| Serial port 1 | J2H1 | Reset switch | J10J1 pins |
| | | | 22 & 23 |
|------------------+----------+-----------------+------------|
| Serial port 2 | J3H1 | Speaker | J10J1 pins |
| | | | 24 - 27 |
|------------------+----------+-----------------+------------|
| Wavetable | J6C1 | 32-bit PCI | PC1 - PC4 |
| connector | | slots | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+--------+----------------|
| » | Password enabled | J10E1A | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+--------+----------------|
| | Password disabled | J10E1A | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+--------+----------------|
| » | CMOS memory normal operation | J10E1A | Pins 4 & 5 |
| | | | closed |
|---+------------------------------+--------+----------------|
| | CMOS memory clear | J10E1A | Pins 5 & 6 |
| | | | closed |
|---+------------------------------+--------+----------------|
| » | Setup access enabled | J10E1B | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+--------+----------------|
| | Setup access disabled | J10E1B | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+--------+----------------|
| » | Flash BIOS normal operation | J10E1B | Pins 4 & 5 |
| | | | closed |
|---+------------------------------+--------+----------------|
| | Flash BIOS recovery mode | J10E1B | Pins 5 & 6 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 32 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 24MB | (2) 1M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 32 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 32 | (2) 1M x 32 |
|------------------+--------------------+--------------------|
| 40MB | (2) 1M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 32 | (2) 2M x 32 |
|------------------+--------------------+--------------------|
| 48MB | (2) 2M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 32 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 32 | (2) 4M x 32 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 32 | (2) 1M x 32 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+-----------------------+--------------------|
| 72MB | (2) 1M x 32 | (2) 8M x 32 |
|---------------+-----------------------+--------------------|
| 80MB | (2) 8M x 32 | (2) 2M x 32 |
|---------------+-----------------------+--------------------|
| 80MB | (2) 2M x 32 | (2) 8M x 32 |
|---------------+-----------------------+--------------------|
| 96MB | (2) 8M x 32 | (2) 4M x 32 |
|---------------+-----------------------+--------------------|
| 96MB | (2) 4M x 32 | (2) 8M x 32 |
|---------------+-----------------------+--------------------|
| 128MB | (2) 8M x 32 | (2) 8M x 32 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x 36 |
| SIMMs. Banks are interchangeable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB cache is factory installed and is not |
| configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: 2MB video memory is factory installed and is not |
| configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | J10E1C | J10E1D |
| | speed | | | |
|------------+----------+------------+------------+----------|
| 75MHz | 50MHz | 1.5x | 2 & 3, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 90MHz | 60MHz | 1.5x | 2 & 3, 4 & | 1 & 2, 4 |
| | | | 5 | & 5 |
|------------+----------+------------+------------+----------|
| 100MHz | 66MHz | 1.5x | 1 & 2, 5 & | 1 & 2, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 120MHz | 60MHz | 2x | 2 & 3, 4 & | 2 & 3, 4 |
| | | | 5 | & 5 |
|------------+----------+------------+------------+----------|
| 133MHz | 66MHz | 2x | 1 & 2, 5 & | 2 & 3, 4 |
| | | | 6 | & 5 |
|------------+----------+------------+------------+----------|
| 150MHz | 60MHz | 2.5x | 2 & 3, 4 & | 2 & 3, 5 |
| | | | 5 | & 6 |
|------------+----------+------------+------------+----------|
| 166MHz | 66MHz | 2.5x | 1 & 2, 5 & | 2 & 3, 5 |
| | | | 6 | & 6 |
|------------+----------+------------+------------+----------|
| 200MHz | 66MHz | 3x | 1 & 2, 5 & | 1 & 2, 5 |
| | | | 6 | & 6 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
