# IBM CORPORATION
APTIVA 2134/2176 A-1
Processor Pentium
Processor Speed 100/120/133/150/166/200MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 128MB
Memory
Maximum Video None
Memory
Cache 256/512KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), VESA video feature connector, VGA port,
riser slot, cache slot, feature connector,
VGA interface, power supply connectors (2)
NPU Options None

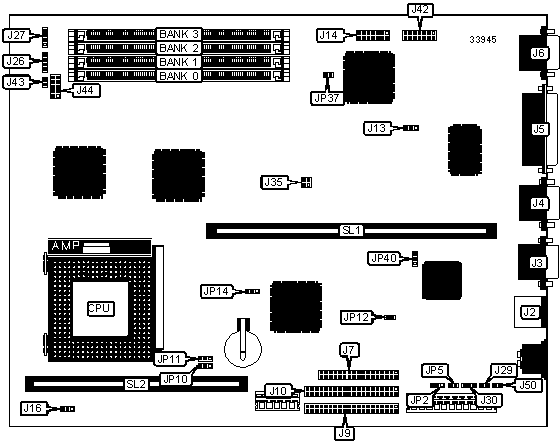

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | J2 | Speaker | J27 |
|-------------------+----------+------------------+----------|
| Serial port 1 | J3 | Power supply | J29 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Serial port 2 | J4 | Power supply | J30 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Parallel port | J5 | VGA interface | J42 |
|-------------------+----------+------------------+----------|
| VGA port | J6 | Chassis fan | J43 |
| | | power | |
|-------------------+----------+------------------+----------|
| Floppy drive | J7 | Feature | J44 |
| interface | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | J9 | External speaker | J50 |
| | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | J10 | Wake up on ring | JP5 |
| | | connector | |
|-------------------+----------+------------------+----------|
| VESA video | J14 | Riser slot | SL1 |
| feature connector | | | |
|-------------------+----------+------------------+----------|
| LED connector | J26 | Cache slot | SL2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|------------------------------------+-------+---------------|
| | Flash BIOS normal operation | J13 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Flash BIOS recovery mode | J13 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | Smart energy system enabled | JP2 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | Smart energy system disabled | JP2 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | PS/2 mouse enabled | JP12 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | PS/2 mouse disabled | JP12 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| » | CMOS memory normal operation | JP14 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | CMOS memory clear | JP14 | Pins 2 & 3 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | On board video enabled | JP37 | Closed |
|---+--------------------------------+-------+---------------|
| | On board video disabled | JP37 | Open |
|---+--------------------------------+-------+---------------|
| | PS/2 mouse & keyboard enabled | JP40 | Pins 1 & 2 |
| | | | closed |
|---+--------------------------------+-------+---------------|
| | PS/2 mouse & keyboard disabled | JP40 | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 2M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | None | None | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | None | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | None | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | None | None | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | None | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | (1) 2M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 4M x 36 | None | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | None | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 8M x 36 | None | None | None |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 2M x 36 | (1) 2M x | (1) 2M x | (1) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 32MB | (1) 4M x 36 | None | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 32MB | None | None | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 36MB | (1) 1M x 36 | None | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 4M x 36 | (1) 4M x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 1M x 36 | (1) 1M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 8M x 36 | None | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 40MB | (1) 2M x 36 | None | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x | (1) 2M x | (1) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 2M x 36 | (1) 2M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 8M x 36 | None | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 48MB | (1) 4M x 36 | None | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 8M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 36 | None | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 64MB | None | None | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 68MB | (1) 1M x 36 | None | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 8M x 36 | (1) 8M x | (1) 1M x | (1) 1M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 1M x 36 | (1) 1M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 2M x 36 | None | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 8M x 36 | (1) 8M x | (1) 2M x | (1) 2M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 2M x 36 | (1) 2M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 4M x 36 | None | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | (1) 8M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 4M x 36 | (1) 4M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | None | (1) 8M x | (1) 8M x |
| | | | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J16 |
|----------------------------+-------------------------------|
| 256KB | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 512KB | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU clock speed | JP35 |
|----------------------------+-------------------------------|
| 50MHz | Pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 55MHz | Open |
|----------------------------+-------------------------------|
| 60MHz | Pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 66MHz | Pins 1 & 2, 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU MULTIPLIER SELECTION |
|------------------------------------------------------------|
| Multiplier | Clock speed | JP10 | JP11 |
|------------+-------------+----------------+----------------|
| 1/3 | 50MHz | Pins 2 & 3 | Pins 1 & 2 |
| | | closed | closed |
|------------+-------------+----------------+----------------|
| 2/5 | 60MHz | Pins 1 & 2 | Pins 1 & 2 |
| | | closed | closed |
|------------+-------------+----------------+----------------|
| 1/2 | 66MHz | Pins 1 & 2 | Pins 2 & 3 |
| | | closed | closed |
|------------+-------------+----------------+----------------|
| 2/3 | 60MHz | Pins 2 & 3 | Pins 2 & 3 |
| | | closed | closed |
+------------------------------------------------------------+
