# INSIDE TECHNOLOGY A/S
486-586LCD/S
Processor TI486DX4/AM5X86
Processor Speed 100(internal)/133(internal)MHz
Chip Set UMC
Video Chip Set C & T
Maximum Onboard 128MB
Memory
Maximum Video 1MB
Memory
Cache None
BIOS AMI
Dimensions 179mm x 123mm
I/O Options Floppy drive interface, IDE interface,
parallel port, PS/2 mouse interface, serial
ports (2), VGA feature connector, VGA port,
flat panel connector, PC104 connectors (2),
LCD connector
NPU Options None

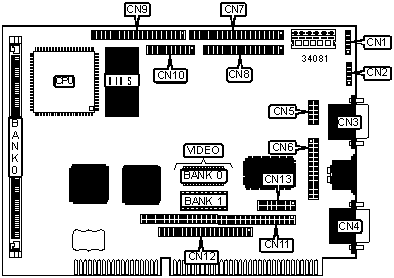

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------------+----------+-----------------+----------|
| Auxiliary keyboard | CN1 | Floppy drive | CN8 |
| connector | | interface | |
|--------------------+----------+-----------------+----------|
| PS/2 mouse | CN2 | Flat panel | CN9 |
| interface | | connector | |
|--------------------+----------+-----------------+----------|
| Serial port 1 | CN3 | VGA feature | CN10 |
| | | connector | |
|--------------------+----------+-----------------+----------|
| VGA port | CN4 | PC104 connector | CN11 |
| | | XT | |
|--------------------+----------+-----------------+----------|
| Serial port 2 | CN5 | PC104 connector | CN12 |
| | | AT | |
|--------------------+----------+-----------------+----------|
| Parallel port | CN6 | LCD connector | CN13 |
|--------------------+----------+-----------------+----------|
| IDE interface | CN7 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 4MB | (1) 1M x 36 |
|----------------------------+-------------------------------|
| 8MB | (1) 2M x 36 |
|----------------------------+-------------------------------|
| 16MB | (1) 4M x 36 |
|----------------------------+-------------------------------|
| 32MB | (1) 8M x 36 |
|----------------------------+-------------------------------|
| 64MB | (1) 16M x 36 |
|----------------------------+-------------------------------|
| 128MB | (1) 32M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------------+-------------------+------------------|
| 512KB | 512KB | None |
|---------------------+-------------------+------------------|
| 1MB | 512KB | 512KB |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not |
| configurable. The size of the video memory chips is |
| unidentifed. |
+------------------------------------------------------------+
