# INSIDE TECHNOLOGY A/S
686LCD/S
Processor CX M1/AM K5/Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Video Chip Set Chips and Technology
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video 2MB
Memory
Cache 256/512KB
BIOS AMI
Dimensions 191mm x 123mm
I/O Options Ethernet 10BaseT connector, AUI connector,
floppy drive interface, IDE interface,
parallel port, PS/2 mouse interface, serial
ports (2), VGA port, cache slot, PC104
connectors (2), YUV connector, panel link
port, flat panel connector, VGA port
NPU Options None

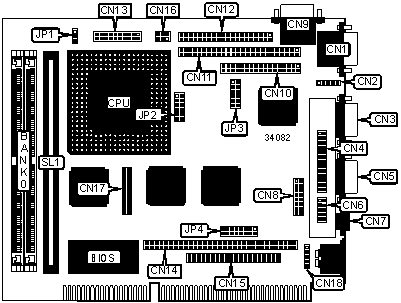

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| USB connector | CN1 | Floppy drive | CN10 |
| | | interface | |
|------------------+----------+-------------------+----------|
| PS/2 mouse | CN2 | Flat panel | CN11 |
| interface | | connector | |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN3 | IDE interface | CN12 |
|------------------+----------+-------------------+----------|
| Parallel port | CN4 | VGA feature | CN13 |
| | | connector | |
|------------------+----------+-------------------+----------|
| VGA port | CN5 | PC104 connector | CN14 |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN6 | PC104 connector | CN15 |
|------------------+----------+-------------------+----------|
| Ethernet 10BaseT | CN7 | YUV connector | CN17 |
| connector | | | |
|------------------+----------+-------------------+----------|
| AUI connector | CN8 | Auxiliary | CN18 |
| | | keyboard | |
| | | connector | |
|------------------+----------+-------------------+----------|
| Panel link port | CN9 | Cache slot | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | CN16 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP4 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 8MB | (2) 1M x 36 |
|----------------------------+-------------------------------|
| 16MB | (2) 2M x 36 |
|----------------------------+-------------------------------|
| 32MB | (2) 4M x 36 |
|----------------------------+-------------------------------|
| 64MB | (2) 8M x 36 |
|----------------------------+-------------------------------|
| 128MB | (2) 16M x 36 |
|----------------------------+-------------------------------|
| 256MB | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: Board is installed with 2MB of video memory. The |
| location is unidentified. |
+------------------------------------------------------------+
