# INDUSTRIAL COMPUTER SOURCE
SB586T SERIES
Processor Pentium
Processor Speed 100/133/166/200/233MHz
Chip Set Intel
Video Chip Set Cirrus Logic
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video 1MB
Memory
Cache 512KB
BIOS AMI
Dimensions Unidentified
I/O Options Floppy drive interface, IDE interfaces (2),
SCSI interface, parallel port, PS/2 mouse
port, serial ports (2), VGA feature
connector, VGA port, IPC connector, Ultra
SCSI interface
NPU Options None

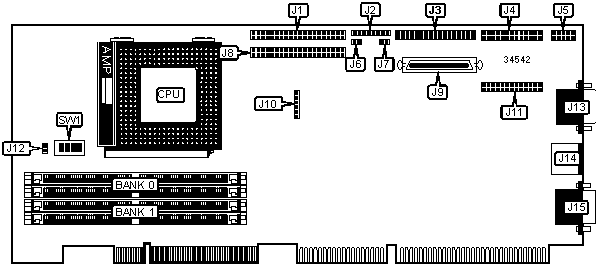

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| IDE interface 1 | J1 | Ultra SCSI | J9 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Speaker, | J2 | IPC connector | J10 |
| keyboard, keylock | | | |
| ,reset | | | |
|-------------------+----------+------------------+----------|
| Floppy drive | J3 | VGA feature | J11 |
| interface | | connector | |
|-------------------+----------+------------------+----------|
| Parallel port | J4 | Chassis fan | J12 |
| | | power | |
|-------------------+----------+------------------+----------|
| Serial port 2 | J5 | Serial port 1 | J13 |
|-------------------+----------+------------------+----------|
| IDE interface LED | J6 | PS/2 mouse port | J14 |
|-------------------+----------+------------------+----------|
| SCSI interface | J7 | VGA port | J15 |
| LED | | | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | J8 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+---------+------------|
| | Watchdog timer disabled | SW1/3 | Off |
|---+---------------------------------+---------+------------|
| | Watchdog timer enabled | SW1/3 | On |
|---+---------------------------------+---------+------------|
| ยป | CMOS memory normal operation | SW1/4 | Off |
|---+---------------------------------+---------+------------|
| | CMOS memory clear | SW1/4 | On |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|---------------+----------------------+---------------------|
| 8MB | (2) 1M x 36 | None |
|---------------+----------------------+---------------------|
| 16MB | (2) 2M x 36 | None |
|---------------+----------------------+---------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|---------------+----------------------+---------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|---------------+----------------------+---------------------|
| 32MB | (2) 4M x 36 | None |
|---------------+----------------------+---------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|---------------+----------------------+---------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|---------------+----------------------+---------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|---------------+----------------------+---------------------|
| 64MB | (2) 8M x 36 | None |
|---------------+----------------------+---------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|---------------+----------------------+---------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|---------------+----------------------+---------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|---------------+----------------------+---------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|---------------+----------------------+---------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|---------------+----------------------+---------------------|
| 128MB | (2) 16M x 36 | None |
|---------------+----------------------+---------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|---------------+----------------------+---------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|---------------+----------------------+---------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|---------------+----------------------+---------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|---------------+----------------------+---------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. Board also accepts x |
| 32 SIMMs. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|--------------------------+---------------------------------|
| 256KB | (2) 32K x 32 |
|------------------------------------------------------------|
| Note: The location of bank 0 is unidentified. The location |
| is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: Board is factory installed with 1MB video memory. |
| The location of the video memory is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | SW1/1 | SW1/2 |
|------------+-------------+------------+----------+---------|
| 100MHz | 66MHz | 1.5x | Off | Off |
|------------+-------------+------------+----------+---------|
| 133MHz | 66MHz | 2x | On | Off |
|------------+-------------+------------+----------+---------|
| 166MHz | 66MHz | 2.5x | On | On |
|------------+-------------+------------+----------+---------|
| 200MHz | 66MHz | 3x | Off | On |
|------------+-------------+------------+----------+---------|
| 233MHz | 66MHz | 2x | Off | Off |
+------------------------------------------------------------+
