# INDUSTRIAL COMPUTER SOURCE
SB686PV200, SB686PV5200
Processor Pentium Pro
Processor Speed 200MHz
Chip Set Intel
Video Chip Set Cirrus Logic
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video 2MB
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions Unidentified
I/O Options Floppy drive interface, IDE interfaces (2),
Ultra SCSI interface, parallel port, PS/2
mouse port, PS/2 mouse interface, serial
ports (2), VGA port, VRM connector
NPU Options None

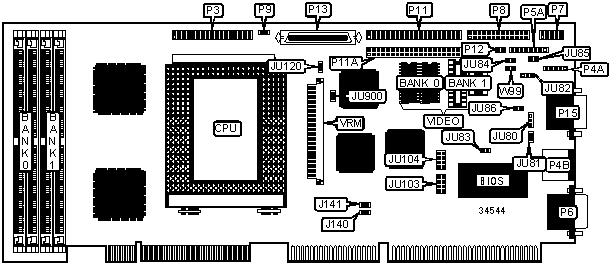

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Floppy drive | P3 | Chassis fan | P9 |
| interface | | power | |
|-------------------+----------+------------------+----------|
| PS/2 mouse | P4A | IDE interface 1 | P11 |
| interface | | | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | P4B | IDE interface 2 | P11A |
|-------------------+----------+------------------+----------|
| Combo I/O | P5A | IDE interface | P12 |
| connector | | LED | |
|-------------------+----------+------------------+----------|
| Serial port 1 | P6 | Ultra SCSI | P13 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Serial port 2 | P7 | VGA port | P15 |
|-------------------+----------+------------------+----------|
| Parallel port | P8 | VRM connector | VRM |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Monitor type select color | JU80 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Monitor type select monochrome | JU80 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Password normal operation | JU81 | Open |
|---+-----------------------------------+-------+------------|
| | Password clear | JU81 | Closed |
|---+-----------------------------------+-------+------------|
| » | Watchdog timer disabled | JU82 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Watchdog timer enabled | JU82 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | JU83 | Open |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | JU83 | Closed |
|---+-----------------------------------+-------+------------|
| » | Speaker installed on P5A/pin 8 | JU84 | Closed |
|---+-----------------------------------+-------+------------|
| | Speaker not installed on P5A/pin | JU84 | Open |
| | 8 | | |
|---+-----------------------------------+-------+------------|
| » | Reset installed on P5A/pin 1 | JU85 | Closed |
|---+-----------------------------------+-------+------------|
| | Reset not installed on P5A/pin 1 | JU85 | Open |
|---+-----------------------------------+-------+------------|
| » | PS/2 mouse IRQ12 enabled | JU86 | Closed |
|---+-----------------------------------+-------+------------|
| | PS/2 mouse IRQ12 disabled | JU86 | Open |
|---+-----------------------------------+-------+------------|
| » | SCSI termination enabled | JU120 | Open |
|---+-----------------------------------+-------+------------|
| | SCSI termination disabled | JU120 | Closed |
|---+-----------------------------------+-------+------------|
| » | VGA IRQ disabled | JU900 | Closed |
|---+-----------------------------------+-------+------------|
| | VGA IRQ enabled | JU900 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: The SB686PV200 has 256KB cache. The SB686PV5200 has |
| 512KB cache. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 16 | None |
|------------------+--------------------+--------------------|
| 2MB | (2) 256K x 16 | (2) 256K x 16 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | J140 | J141 | W99 |
| | speed | | | | |
|-----------+----------+------------+------+--------+--------|
| 200MHz | 66MHz | 3x | Open | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JU103 | JU104 |
|------------------+--------------------+--------------------|
| 3 | Pins 7 & 8 closed | Pins 7 & 8 closed |
|------------------+--------------------+--------------------|
| 5 | Pins 5 & 6 closed | Pins 5 & 6 closed |
|------------------+--------------------+--------------------|
| 6 | Pins 3 & 4 closed | Pins 3 & 4 closed |
|------------------+--------------------+--------------------|
| 7 | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
