SB686P200, SB686P5200
Processor Pentium Pro
Processor Speed 200MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 256MB (EDO supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS AMI
Dimensions Unidentified
I/O Options Floppy drive interface, IDE interfaces (2),
Ultra SCSI interface, parallel port, PS/2
mouse port, PS/2 mouse interface, serial
ports (2), VRM connector
NPU Options None

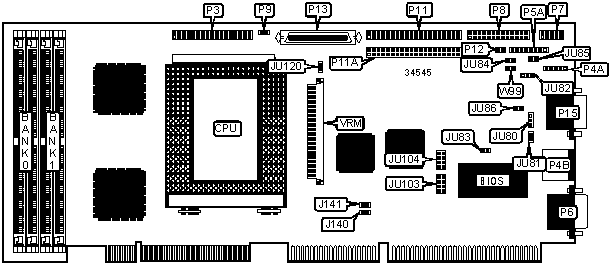

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Floppy drive | P3 | Parallel port | P8 |
| interface | | | |
|-------------------+----------+------------------+----------|
| PS/2 mouse | P4A | Chassis fan | P9 |
| interface | | power | |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | P4B | IDE interface 1 | P11 |
|-------------------+----------+------------------+----------|
| Combo I/O | P5A/pin | IDE interface 2 | P11A |
| connector | 8 | | |
| (speaker) | | | |
|-------------------+----------+------------------+----------|
| Combo I/O | P5A/pin | IDE interface | P12 |
| connector (reset) | 1 | LED | |
|-------------------+----------+------------------+----------|
| Serial port 1 | P6 | Ultra SCSI | P13 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Serial port 2 | P7 | VRM connector | VRM |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| » | Monitor type select color | JU80 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Monitor type select monochrome | JU80 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Password normal operation | JU81 | Open |
|---+-----------------------------------+-------+------------|
| | Password clear | JU81 | Closed |
|---+-----------------------------------+-------+------------|
| » | Watchdog timer disabled | JU82 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Watchdog timer enabled | JU82 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | CMOS memory normal operation | JU83 | Open |
|---+-----------------------------------+-------+------------|
| | CMOS memory clear | JU83 | Closed |
|---+-----------------------------------+-------+------------|
| » | Speaker installed on P5A/pin 8 | JU84 | Closed |
|---+-----------------------------------+-------+------------|
| | Speaker not installed on P5A/pin | JU84 | Open |
| | 8 | | |
|---+-----------------------------------+-------+------------|
| » | Reset installed on P5A/pin 1 | JU85 | Closed |
|---+-----------------------------------+-------+------------|
| | Reset not installed on P5A/pin 1 | JU85 | Open |
|---+-----------------------------------+-------+------------|
| » | PS/2 mouse IRQ12 enabled | JU86 | Closed |
|---+-----------------------------------+-------+------------|
| | PS/2 mouse IRQ12 disabled | JU86 | Open |
|---+-----------------------------------+-------+------------|
| » | SCSI termination enabled | JU120 | Open |
|---+-----------------------------------+-------+------------|
| | SCSI termination disabled | JU120 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: The SB686P200 has 256KB cache. The SB686P5200 has |
| 512KB cache. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock | Multiplier | J140 | J141 | W99 |
| | speed | | | | |
|-----------+----------+------------+------+--------+--------|
| 200MHz | 66MHz | 3x | Open | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | JU103 | JU104 |
|------------------+--------------------+--------------------|
| 3 | Pins 7 & 8 closed | Pins 7 & 8 closed |
|------------------+--------------------+--------------------|
| 5 | Pins 5 & 6 closed | Pins 5 & 6 closed |
|------------------+--------------------+--------------------|
| 6 | Pins 3 & 4 closed | Pins 3 & 4 closed |
|------------------+--------------------+--------------------|
| 7 | Pins 1 & 2 closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
