# LANNER ELECTRONICS, INC.
AP-60IFA
Device Type Mainboard
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel
Video Chip Set Chips & Technologies
Maximum Onboard 512MB (EDO supported)
Memory
Maximum Video 2MB
Memory
Cache 256KB (located on Pentium Pro CPU)
BIOS AMI/Award
Dimensions Unidentified
I/O Options Floppy drive interface, green PC connector,
IDE interfaces (2), SCSI interface, Wide
Ultra SCSI interface, parallel port, PS/2
mouse port, serial ports (2), VGA port, IR
connector, USB connectors (2), flat panel
connectors (2)
NPU Options None

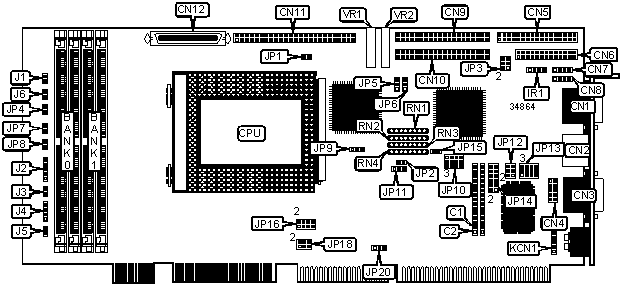

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Flat panel | C1 | SCSI interface | CN11 |
| connector | | | |
|------------------+----------+-------------------+----------|
| Flat panel | C2 | Wide Ultra SCSI | CN12 |
| connector | | interface | |
|------------------+----------+-------------------+----------|
| VGA port | CN1 | IDE interface LED | J1 |
|------------------+----------+-------------------+----------|
| PS/2 mouse port | CN2 | Power LED & | J2 |
| | | keylock | |
|------------------+----------+-------------------+----------|
| Serial port 1 | CN3 | Turbo LED | J3 |
|------------------+----------+-------------------+----------|
| Serial port 2 | CN4 | Speaker | J4 |
|------------------+----------+-------------------+----------|
| Floppy drive | CN5 | Reset switch | J5 |
| interface | | | |
|------------------+----------+-------------------+----------|
| Parallel port | CN6 | SCSI interface | J6 |
| | | LED | |
|------------------+----------+-------------------+----------|
| USB connector 1 | CN7 | Green PC | JP4 |
| | | connector | |
|------------------+----------+-------------------+----------|
| USB connector 2 | CN8 | IR connector | IR1 |
|------------------+----------+-------------------+----------|
| IDE interface 1 | CN9 | Auxiliary | KCN1 |
| | | keyboard | |
| | | connector | |
|------------------+----------+-------------------+----------|
| IDE interface 2 | CN10 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|--------------------------------+-------+-------------------|
| | SCSI termination enabled | JP1 | Open |
|---+----------------------------+-------+-------------------|
| | SCSI termination disabled | JP1 | Closed |
|---+----------------------------+-------+-------------------|
| » | VEE voltage select +12v - | JP5 | Pins 2 & 3 closed |
| | +35v | | |
|---+----------------------------+-------+-------------------|
| | VEE voltage select -12v - | JP5 | Pins 1 & 2 closed |
| | -34v | | |
|---+----------------------------+-------+-------------------|
| » | Contrast voltage enabled | JP6 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| | VEE voltage enabled | JP6 | Pins 2 & 3 closed |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | JP12 | Open |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | JP13 | Pins 2 & 3, 5 & |
| | not alter | | 6, 8 & 9 closed |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | JP14 | Pins 1 & 2, 3 & |
| | not alter | | 4, 5 & 6, 7 & 8, |
| | | | 9 & 10, 11 & 12 |
| | | | closed |
|---+----------------------------+-------+-------------------|
| » | PS/2 mouse IRQ12 enabled | JP15 | Closed |
|---+----------------------------+-------+-------------------|
| | PS/2 mouse IRQ12 disabled | JP15 | Open |
|---+----------------------------+-------+-------------------|
| » | Flash BIOS voltage select | JP20 | Pins 2 & 3 closed |
| | 5v | | |
|---+----------------------------+-------+-------------------|
| | Flash BIOS voltage select | JP20 | Pins 1 & 2 closed |
| | 12v | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | RN1 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | RN2 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | RN3 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | RN4 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | VR1 | Unidentified |
| | not alter | | |
|---+----------------------------+-------+-------------------|
| » | Factory configured - do | VR1 | Unidentified |
| | not alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 32M x 36 | None |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 264MB | (2) 32M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 272MB | (2) 32M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 288MB | (2) 32M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 320MB | (2) 32M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 384MB | (2) 32M x 36 | (2) 16M x 36 |
|------------------+--------------------+--------------------|
| 512MB | (2) 32M x 36 | (2) 32M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: Board accepts 1MB/2MB video memory. The location is |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU |Clock |Multiplier| JP7 | JP8 | JP16 |JP18 |
| speed |speed | | | | | |
|-------+------+----------+------+------+--------------+-----|
|150MHz |60MHz | 2.5x | Open |Closed|1 & 2, 3 & 4, |1 & 2|
| | | | | | 5 & 6 | |
|-------+------+----------+------+------+--------------+-----|
|166MHz |66MHz | 2.5x |Closed| Open |1 & 2, 3 & 4, |Open |
| | | | | | 5 & 6 | |
|-------+------+----------+------+------+--------------+-----|
|180MHz |60MHz | 3x | Open |Closed|1 & 2, 3 & 4, |1 & 2|
| | | | | | 7 & 8 | |
|-------+------+----------+------+------+--------------+-----|
|200MHz |66MHz | 3x |Closed| Open |1 & 2, 3 & 4, |Open |
| | | | | | 7 & 8 | |
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLAT PANEL SELECTION |
|------------------------------------------------------------|
| Setting | JP3 |
|--------------------------+---------------------------------|
| | 1024 x 768 DSTN | Pins 1 & 2, 3 & 4, 5 & 6 closed |
|---+----------------------+---------------------------------|
| | 1280 x 1024 TFT | Pins 3 & 4, 5 & 6 closed |
|---+----------------------+---------------------------------|
| | 640 x 480 DSTN | Pins 1 & 2, 5 & 6 closed |
|---+----------------------+---------------------------------|
| | 800 x 600 DSTN | Pins 5 & 6 closed |
|---+----------------------+---------------------------------|
| | 640 x 480 Sharp TFT | Pins 1 & 2, 3 & 4 closed |
|---+----------------------+---------------------------------|
| » | 640 x 480 18 bit TFT | Pins 3 & 4 closed |
|---+----------------------+---------------------------------|
| | 1024 x 768 TFT | Pins 1 & 2 closed |
|---+----------------------+---------------------------------|
| | 800 x 600 TFT | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WATCHDOG TIMER ACTIVE SELECTION |
|------------------------------------------------------------|
| Time out | JP10 |
|----------------------------+-------------------------------|
| | .5 sec | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | 1 sec | Pins 5 & 6 closed |
|---+------------------------+-------------------------------|
| | 2 sec | Pins 8 & 9 closed |
|---+------------------------+-------------------------------|
| » | 4 sec | Pins 11 & 12 closed |
|---+------------------------+-------------------------------|
| | 8 sec | Pins 10 & 11 closed |
|---+------------------------+-------------------------------|
| | 16 sec | Pins 7 & 8 closed |
|---+------------------------+-------------------------------|
| | 32 sec | Pins 4 & 5 closed |
|---+------------------------+-------------------------------|
| | 64 sec | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WATCHDOG TIMER ACTIVE SELECTION |
|------------------------------------------------------------|
| Time out | JP11 |
|-----------------------------+------------------------------|
| » | Reset system | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | NMI system | Pins 2 & 3 closed |
|---+-------------------------+------------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCSI SELECTION |
|------------------------------------------------------------|
| Setting | JP2 | JP9 |
|-----------------------+---------------+--------------------|
| » | 8 bit | Open | Pins 1 & 2 closed |
|---+-------------------+---------------+--------------------|
| | Wide | Closed | Pins 1 & 2 closed |
|---+-------------------+---------------+--------------------|
| | Ultra Wide | Closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
