# LANNER ELECTRONICS, INC.
AP-5200SH
Device Type Mainboard
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set SIS
Video Chip Set Unidentified
Maximum Onboard 64MB (EDO supported)
Memory
Maximum Video Unidentified
Memory
Cache 256/512KB
BIOS Award
Dimensions Unidentified
I/O Options Floppy drive interface, green PC connector,
IDE interface, parallel port, PS/2 mouse
port, serial ports (2), VGA port, cache slot,
IR connector
NPU Options None

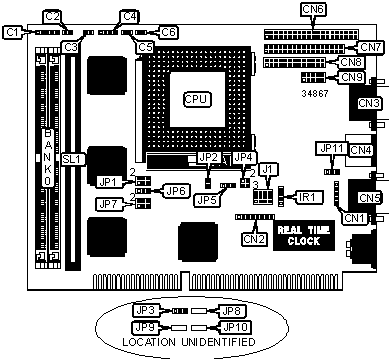

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Power LED & | C1 | PS/2 mouse port | CN4 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| IDE interface LED | C2 | Serial port 1 | CN5 |
|-------------------+----------+------------------+----------|
| Turbo LED | C3 | IDE interface | CN6 |
|-------------------+----------+------------------+----------|
| Speaker | C4 | Floppy drive | CN7 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Green PC | C5 | Parallel port | CN8 |
| connector | | | |
|-------------------+----------+------------------+----------|
| Reset switch | C6 | Serial port 2 | CN9 |
|-------------------+----------+------------------+----------|
| Auxiliary | CN1 | IR connector | IR1 |
| keyboard | | | |
| connector | | | |
|-------------------+----------+------------------+----------|
| Power connector | CN2 | Cache slot | SL1 |
|-------------------+----------+------------------+----------|
| VGA port | CN3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Closed |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Pins 1 & 2 |
| | alter | | closed |
|---+---------------------------------+-------+--------------|
| | Power good signal detect from | JP5 | Pins 2 & 3 |
| | power supply | | closed |
|---+---------------------------------+-------+--------------|
| | Power good signal detect from | JP5 | Pins 1 & 2 |
| | board | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP8 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP9 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP10 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 |
|----------------------------+-------------------------------|
| 8MB | (2) 1M x 36 |
|----------------------------+-------------------------------|
| 16MB | (2) 2M x 36 |
|----------------------------+-------------------------------|
| 32MB | (2) 4M x 36 |
|----------------------------+-------------------------------|
| 64MB | (2) 8M x 36 |
|------------------------------------------------------------|
| Note: Board accepts EDO memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 256KB | 256KB module installed |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Type | JP6 | JP7 |
|----------------+-------------------+-----------------------|
| Asynchronous | Pins 1 & 2 closed | Pins 1 & 3, 2 & 4 |
| | | closed |
|----------------+-------------------+-----------------------|
| Pipeline burst | Pins 2 & 3 closed | Pins 3 & 5, 4 & 6 |
| | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: the size & location of the video memory is |
| unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | JP1 | JP4 |
|-----------+-------------+------------+-------+-------------|
| 75MHz | 50MHz | 1.5x | 3 & 4 | Open |
|-----------+-------------+------------+-------+-------------|
| 90MHz | 60MHz | 1.5x | 1 & 2 | Open |
|-----------+-------------+------------+-------+-------------|
| 100MHz | 66MHz | 1.5x | Open | Open |
|-----------+-------------+------------+-------+-------------|
| 120MHz | 60MHz | 2x | 1 & 2 | 3 & 4 |
|-----------+-------------+------------+-------+-------------|
| 133MHz | 66MHz | 2x | Open | 3 & 4 |
|-----------+-------------+------------+-------+-------------|
| 150MHz | 60MHz | 2.5x | 1 & 2 | 1 & 2, 3 & |
| | | | | 4 |
|-----------+-------------+------------+-------+-------------|
| 166MHz | 66MHz | 2.5x | Open | 1 & 2, 3 & |
| | | | | 4 |
|-----------+-------------+------------+-------+-------------|
| 180MHz | 60MHz | 3x | 1 & 2 | 1 & 2 |
|-----------+-------------+------------+-------+-------------|
| 200MHz | 66MHz | 3x | Open | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WATCHDOG TIMER ACTIVE SELECTION |
|------------------------------------------------------------|
| Time out | J1 |
|----------------------------+-------------------------------|
| | .5 sec | Pins 2 & 3 closed |
|---+------------------------+-------------------------------|
| | 1 sec | Pins 5 & 6 closed |
|---+------------------------+-------------------------------|
| | 2 sec | Pins 8 & 9 closed |
|---+------------------------+-------------------------------|
| » | 4 sec | Pins 11 & 12 closed |
|---+------------------------+-------------------------------|
| | 8 sec | Pins 10 & 11 closed |
|---+------------------------+-------------------------------|
| | 16 sec | Pins 7 & 8 closed |
|---+------------------------+-------------------------------|
| | 32 sec | Pins 4 & 5 closed |
|---+------------------------+-------------------------------|
| | 64 sec | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WATCHDOG TIMER ACTIVE SELECTION |
|------------------------------------------------------------|
| Setting | JP11 |
|-----------------------------+------------------------------|
| » | Reset system | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | NMI system | Pins 2 & 3 closed |
|---+-------------------------+------------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
