# LANNER ELECTRONICS, INC.
AP-5200IF
Device Type Mainboard
Processor Pentium
Processor Speed 75/90/100/120/133/150/166/180/200MHz
Chip Set Intel
Video Chip Set Unidentified
Maximum Onboard 128MB
Memory
Maximum Video Unidentified
Memory
Cache 512KB
BIOS Award
Dimensions Unidentified
I/O Options Floppy drive interface, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), cache slot, PC/104 connectors (2), VGA
interface, PCI piggyback connector
NPU Options None

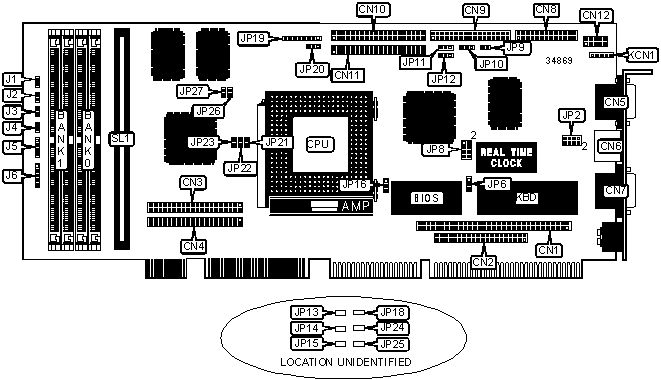

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| PC/104 connector | CN1 | VGA interface | CN12 |
|-------------------+----------+------------------+----------|
| PC/104 connector | CN2 | Reset switch | J1 |
|-------------------+----------+------------------+----------|
| PCI piggyback | CN3 | Turbo switch | J2 |
| connector | | | |
|-------------------+----------+------------------+----------|
| PCI piggyback | CN4 | IDE interface | J3 |
| connector | | LED | |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN5 | Turbo LED | J4 |
|-------------------+----------+------------------+----------|
| PS/2 mouse port | CN6 | Speaker | J5 |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN7 | Power LED & | J6 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Parallel port | CN8 | Green PC | JP9 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN9 | Power connector | JP19 |
| interface | | | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN10 | Auxiliary | KCN1 |
| | | keyboard | |
| | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN11 | Cache slot | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Flash BIOS voltage select 5v | JP6 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Flash BIOS voltage select 12v | JP6 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | IDE2 IRQ select IRQ15 | JP10 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | IDE2 IRQ select MIRQ0 | JP10 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP11 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP13 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP14 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP15 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP18 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Power good signal detect from | JP20 | Pins 1 & 2 |
| | board | | closed |
|---+---------------------------------+-------+--------------|
| | Power good signal detect from | JP20 | Pins 2 & 3 |
| | power supply | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP22 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP24 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP25 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | SL1 |
|----------------------------+-------------------------------|
| 512KB | 512KB module installed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU | Clock |Multiplier|JP12 | JP21 | JP23 | JP26 | JP27 |
| speed | speed | | | | | | |
|-------+-------+----------+-----+------+------+------+------|
| 75MHz | 50MHz | 1.5x |1 & 2| Open | Open | Open | Open |
|-------+-------+----------+-----+------+------+------+------|
| 90MHz | 60MHz | 1.5x |2 & 3| Open | Open | Open |Closed|
|-------+-------+----------+-----+------+------+------+------|
|100MHz | 66MHz | 1.5x |2 & 3| Open | Open |Closed|Closed|
|-------+-------+----------+-----+------+------+------+------|
|120MHz | 60MHz | 2x |2 & 3| Open |Closed| Open |Closed|
|-------+-------+----------+-----+------+------+------+------|
|133MHz | 66MHz | 2x |2 & 3| Open |Closed|Closed|Closed|
|-------+-------+----------+-----+------+------+------+------|
|150MHz | 60MHz | 2.5x |2 & 3|Closed|Closed| Open |Closed|
|-------+-------+----------+-----+------+------+------+------|
|166MHz | 66MHz | 2.5x |2 & 3|Closed|Closed|Closed|Closed|
|-------+-------+----------+-----+------+------+------+------|
|180MHz | 60MHz | 3x |2 & 3|Closed| Open | Open |Closed|
|-------+-------+----------+-----+------+------+------+------|
|200MHz | 66MHz | 3x |2 & 3|Closed| Open |Closed|Closed|
|------------------------------------------------------------|
|Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT 2 INTERRUPT SELECTION |
|------------------------------------------------------------|
| IRQ | COM port | JP8 |
|------------------+--------------------+--------------------|
| IRQ10 | 3 | Pins 5 & 7 closed |
|------------------+--------------------+--------------------|
| IRQ11 | 3 | Pins 7 & 8 closed |
|------------------+--------------------+--------------------|
| IRQ10 | 4 | Pins 5 & 6 closed |
|------------------+--------------------+--------------------|
| IRQ11 | 4 | Pins 6 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WATCHDOG TIMER ACTIVE SELECTION |
|------------------------------------------------------------|
| Time out | JP2 |
|----------------------------+-------------------------------|
| | .5 sec | Pins 1 & 2 closed |
|----+-----------------------+-------------------------------|
| | 1 sec | Pins 3 & 4 closed |
|----+-----------------------+-------------------------------|
| | 2 sec | Pins 5 & 6 closed |
|----+-----------------------+-------------------------------|
| » | 4 sec | Pins 7 & 8 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| WATCHDOG TIMER ACTIVE SELECTION |
|------------------------------------------------------------|
| Setting | JP16 |
|-----------------------------+------------------------------|
| » | Reset system | Pins 1 & 2 closed |
|---+-------------------------+------------------------------|
| | NMI system | Pins 2 & 3 closed |
|---+-------------------------+------------------------------|
| | Disabled | Open |
+------------------------------------------------------------+
