# LUCKY STAR TECHNOLOGY CO., LTD.
6BX2
Device Type Mainboard
Processor Pentium II/Celeron
Processor Speed 200/233/266/300/333/350/400/450/500MHz
Chip Set Intel 440BX
Maximum Onboard 768MB (EDO & SDRAM supported)
Memory
Cache 0/128/256/512KB (located on the CPU)
BIOS Award
Dimensions 220mm x 220mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse interface, serial
ports (2), IR connector, USB connector, ATX
power connector, AGP slot, SB-link connector,
wake on LAN connector

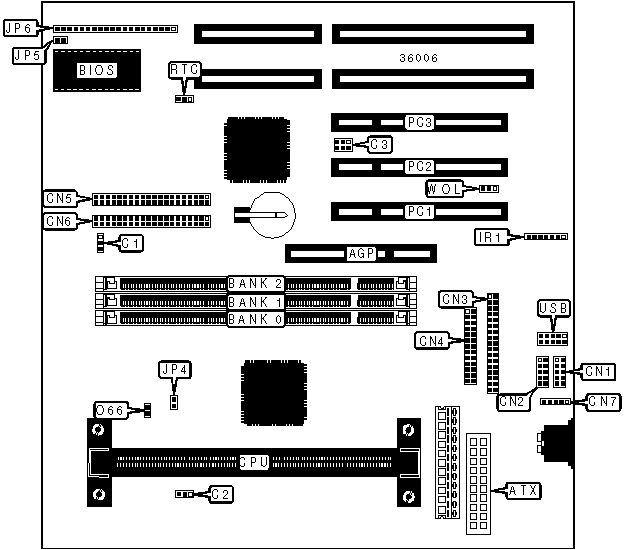

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+-------------------+-----------|
| AGP slot | AGP | IR connector | IR1 |
|-----------------+----------+-------------------+-----------|
| ATX power | ATX | CPU temperature | JP4 |
| connector | | sensor | |
|-----------------+----------+-------------------+-----------|
| Chassis fan | C1 | Soft off power | JP5 |
| power | | supply | |
|-----------------+----------+-------------------+-----------|
| Chassis fan | C2 | Power LED & | JP6/pins |
| power | | keylock | 1 – 5 |
|-----------------+----------+-------------------+-----------|
| SB-link | C3 | Speaker | JP6/pins |
| connector | | | 7 – 10 |
|-----------------+----------+-------------------+-----------|
| Serial port 2 | CN1 | Reset switch | JP6/pins |
| | | | 12 & 13 |
|-----------------+----------+-------------------+-----------|
| Serial port 1 | CN2 | IDE interface LED | JP6/pins |
| | | | 15 & 16 |
|-----------------+----------+-------------------+-----------|
| Floppy drive | CN3 | Turbo LED | JP6/pins |
| interface | | | 18 & 19 |
|-----------------+----------+-------------------+-----------|
| Parallel port | CN4 | Green PC | JP6/pins |
| | | connector | 21 & 22 |
|-----------------+----------+-------------------+-----------|
| IDE interface 2 | CN5 | 32-bit PCI slots | PC1 – PC3 |
|-----------------+----------+-------------------+-----------|
| IDE interface 1 | CN6 | USB connector | USB |
|-----------------+----------+-------------------+-----------|
| PS/2 mouse | CN7 | Wake on LAN | WOL |
| interface | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | RTC | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | RTC | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (1) 1M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 4M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|----------+----------------+----------------+---------------|
| 88MB | (1) 8M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|----------+----------------+----------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|----------+----------------+----------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+----------------+----------------+---------------|
| 104MB | (1) 8M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|----------+----------------+----------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+----------------+----------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|----------+----------------+----------------+---------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 | None |
|----------+----------------+----------------+---------------|
| 136MB | (1) 8M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|----------+----------------+----------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|----------+----------------+----------------+---------------|
| 152MB | (1) 16M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|----------+----------------+----------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|----------+----------------+----------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|----------+----------------+----------------+---------------|
| 168MB | (1) 16M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|----------+----------------+----------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+----------------+----------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|----------+----------------+----------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|----------+----------------+----------------+---------------|
| 200MB | (1) 16M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|----------+----------------+----------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|----------+----------------+----------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|----------+----------------+----------------+---------------|
| 256MB | (1) 32M x 64 | None | None |
|----------+----------------+----------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|----------+----------------+----------------+---------------|
| 288MB | (1) 32M x 64 | (1) 4M x 64 | None |
|----------+----------------+----------------+---------------|
| 320MB | (1) 32M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|----------+----------------+----------------+---------------|
| 320MB | (1) 32M x 64 | (1) 8M x 64 | None |
|----------+----------------+----------------+---------------|
| 384MB | (1) 32M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|----------+----------------+----------------+---------------|
| 384MB | (1) 32M x 64 | (1) 16M x 64 | None |
|----------+----------------+----------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|----------+----------------+----------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|----------+----------------+----------------+---------------|
| 512MB | (1) 32M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|----------+----------------+----------------+---------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
|----------+----------------+----------------+---------------|
| 768MB | (1) 32M x 64 | (1) 32M x 64 | (1) 32M x 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. Maximum SDRAM |
| is 384MB. Maximum EDO is 768MB. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II |
| CPU. 128KB cache is located on the Celeron 300A & 333 |
| CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| CPU speed | Clock speed | Multiplier | O66 |
|---------------+---------------+---------------+------------|
| 200MHz | 66MHz | 3x | Closed |
|---------------+---------------+---------------+------------|
| 233MHz | 66MHz | 3.5x | Closed |
|---------------+---------------+---------------+------------|
| 266MHz | 66MHz | 4x | Closed |
|---------------+---------------+---------------+------------|
| 300MHz | 66MHz | 4.5x | Closed |
|---------------+---------------+---------------+------------|
| 333MHz | 66MHz | 5x | Closed |
|---------------+---------------+---------------+------------|
| 350MHz | 100MHz | 3.5x | Open |
|---------------+---------------+---------------+------------|
| 400MHz | 100MHz | 4x | Open |
|---------------+---------------+---------------+------------|
| 450MHz | 100MHz | 4.5x | Open |
|---------------+---------------+---------------+------------|
| 500MHz | 100MHz | 5x | Open |
+------------------------------------------------------------+
