# LUCKY STAR TECHNOLOGY CO., LTD.
6IX-K
Device Type Mainboard
Processor Pentium Pro
Processor Speed 150/166/180/200MHz
Chip Set Intel 440FX
Maximum Onboard 256MB
Memory
Cache 256/512KB (located on Pentium Pro CPU)
BIOS Unidentified
Dimensions 305mm x 244mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
SCSI-2 interfaces (2), parallel port, PS/2
mouse port, serial ports (2), IR connector,
USB connector, RAID slot

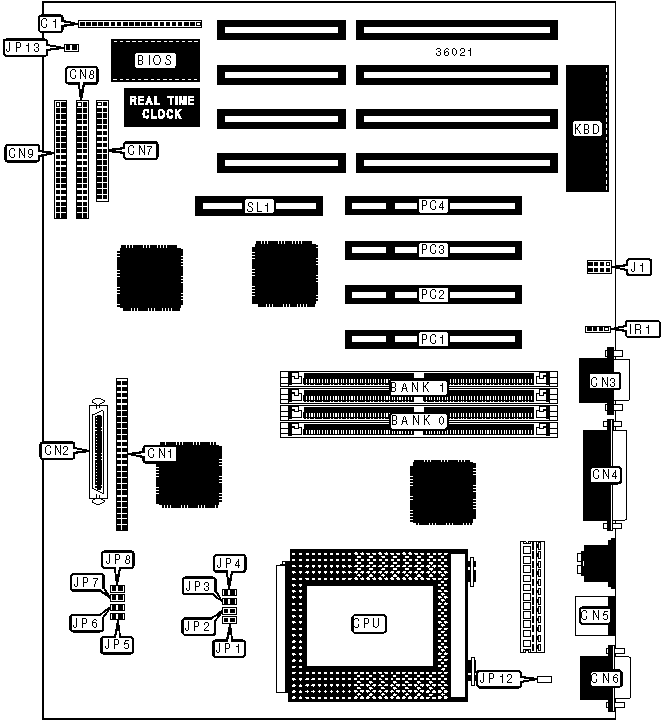

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+-----------+-----------------+-----------|
| Power LED & | C1/pins 1 | PS/2 mouse port | CN5 |
| keylock | – 5 | | |
|------------------+-----------+-----------------+-----------|
| Speaker | C1/pins 7 | Serial port 1 | CN6 |
| | – 10 | | |
|------------------+-----------+-----------------+-----------|
| Reset switch | C1/pins | IDE interface 1 | CN7 |
| | 12 & 13 | | |
|------------------+-----------+-----------------+-----------|
| IDE interface | C1/pins | IDE interface 2 | CN8 |
| LED | 15 & 16 | | |
|------------------+-----------+-----------------+-----------|
| Turbo LED | C1/pins | Floppy drive | CN9 |
| | 18 & 19 | interface | |
|------------------+-----------+-----------------+-----------|
| Green PC | C1/pins | IR connector | IR1 |
| connector | 21 & 22 | | |
|------------------+-----------+-----------------+-----------|
| SCSI-2 interface | CN1 | USB connector | J1 |
|------------------+-----------+-----------------+-----------|
| SCSI-2 interface | CN2 | 32-bit PCI | PC1 – PC4 |
| | | slots | |
|------------------+-----------+-----------------+-----------|
| Serial port 2 | CN3 | RAID slot | SL1 |
|------------------+-----------+-----------------+-----------|
| Parallel port | CN4 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP5 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP6 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP12 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JP13 | Open |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JP13 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 2M x 36 | None |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | None |
|------------------+--------------------+--------------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 64MB | (2) 8M x 36 | None |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 128MB | (2) 16M x 36 | None |
|------------------+--------------------+--------------------|
| 136MB | (2) 16M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 144MB | (2) 16M x 36 | (2) 2M x 36 |
|------------------+--------------------+--------------------|
| 160MB | (2) 16M x 36 | (2) 4M x 36 |
|------------------+--------------------+--------------------|
| 192MB | (2) 16M x 36 | (2) 8M x 36 |
|------------------+--------------------+--------------------|
| 256MB | (2) 16M x 36 | (2) 16M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
+------------------------------------------------------------+
+-----------------------------------------------------------------+
| CPU SPEED SELECTION |
|-----------------------------------------------------------------|
| CPU |Clock|Multiplier| JP1 | JP2 | JP3 | JP4 | JP7 | JP8 |
|speed |speed| | | | | | | |
|------+-----+----------+------+------+------+------+------+------|
|150MHz|60MHz| 2.5x |Closed|Closed|Closed| Open |Closed| Open |
|------+-----+----------+------+------+------+------+------+------|
|166MHz|66MHz| 2.5x |Closed|Closed|Closed| Open | Open |Closed|
|------+-----+----------+------+------+------+------+------+------|
|180MHz|60MHz| 3x |Closed|Closed| Open |Closed|Closed| Open |
|------+-----+----------+------+------+------+------+------+------|
|200MHz|66MHz| 3x |Closed|Closed| Open |Closed| Open |Closed|
+-----------------------------------------------------------------+
