# LUCKY STAR TECHNOLOGY CO., LTD.
6LX
Device Type Mainboard
Processor Celeron
Processor Speed 266/300/333/366/400/433/466MHz
Chip Set Intel 440LX
Maximum Onboard 768MB (EDO & SDRAM supported)
Memory
Cache 128KB (located on Celeron CPU)
BIOS Award
Dimensions 254mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
game interface, green PC connector, IDE
interfaces (2), parallel port, PS/2 mouse
interface, serial ports (2), IR connector, USB
connector, ATX power connector, AGP slot,
SB-link connector, wake on LAN connector
IMG IMG 1
+------------------------------------------------------------+

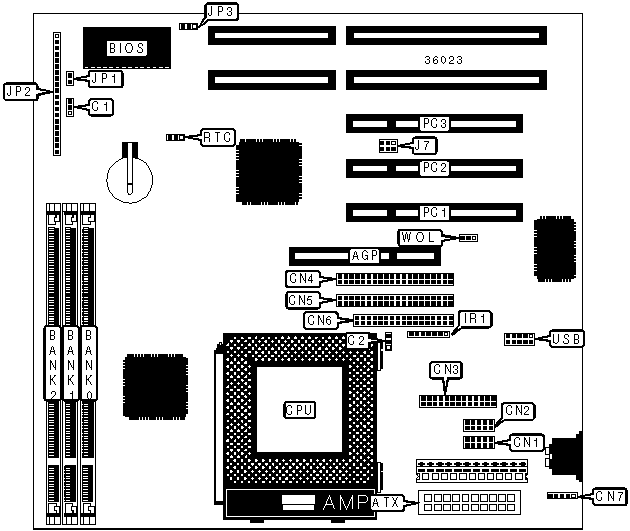

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+----------------+------------|
| AGP slot | AGP | SB-link | J7 |
| | | connector | |
|-------------------+----------+----------------+------------|
| ATX power | ATX | Soft off power | JP1 |
| connector | | supply | |
|-------------------+----------+----------------+------------|
| Chassis fan power | C1 | Power LED & | JP2/pins 1 |
| | | keylock | - 5 |
|-------------------+----------+----------------+------------|
| Chassis fan power | C2 | Speaker | JP2/pins 7 |
| | | | - 10 |
|-------------------+----------+----------------+------------|
| Serial port 1 | CN1 | Reset switch | JP2/pins |
| | | | 12 & 13 |
|-------------------+----------+----------------+------------|
| Serial port 2 | CN2 | IDE interface | JP2/pins |
| | | LED | 15 & 16 |
|-------------------+----------+----------------+------------|
| Parallel port | CN3 | Turbo LED | JP2/pins |
| | | | 18 & 19 |
|-------------------+----------+----------------+------------|
| IDE interface 2 | CN4 | Green PC | JP2/pins |
| | | connector | 21 & 22 |
|-------------------+----------+----------------+------------|
| IDE interface 1 | CN5 | 32-bit PCI | PC1 - PC3 |
| | | slots | |
|-------------------+----------+----------------+------------|
| Floppy drive | CN6 | USB connector | USB |
| interface | | | |
|-------------------+----------+----------------+------------|
| PS/2 mouse | CN7 | Wake on LAN | WOL |
| interface | | connector | |
|-------------------+----------+----------------+------------|
| IR connector | IR1 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-----------------------------------+-------+----------------|
| | Flash BIOS voltage select 12v | JP3 | Pins 2 & 3 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| | Flash BIOS voltage select 5v | JP3 | Pins 1 & 2 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| ยป | CMOS memory normal operation | RTC | Pins 1 & 2 |
| | | | closed |
|---+-------------------------------+-------+----------------|
| | CMOS memory clear | RTC | Pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON'T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|---------+------------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|---------+------------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|---------+------------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|---------+------------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|---------+------------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|---------+------------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|---------+------------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|---------+------------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|---------+------------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|---------+------------------+---------------+---------------|
| 256MB | (1) 32M x 64 | None | None |
|---------+------------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|---------+------------------+---------------+---------------|
| 264MB | (1) 32M x 64 | (1) 1M x 64 | None |
|---------+------------------+---------------+---------------|
| 272MB | (1) 32M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|---------+------------------+---------------+---------------|
| 272MB | (1) 32M x 64 | (1) 2M x 64 | None |
|---------+------------------+---------------+---------------|
| 288MB | (1) 32M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|---------+------------------+---------------+---------------|
| 288MB | (1) 32M x 64 | (1) 4M x 64 | None |
|---------+------------------+---------------+---------------|
| 320MB | (1) 32M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|---------+------------------+---------------+---------------|
| 320MB | (1) 32M x 64 | (1) 8M x 64 | None |
|---------+------------------+---------------+---------------|
| 384MB | (1) 32M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|---------+------------------+---------------+---------------|
| 384MB | (1) 32M x 64 | (1) 16M x 64 | None |
|---------+------------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|---------+------------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|---------+------------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|---------+------------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
|---------+------------------+---------------+---------------|
| 768MB | (1) 32M x 64 | (1) 32M x 64 | (1) 32M x 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. Maximum SDRAM is |
| 384MB. Maximum EDO is 768MB. |
+------------------------------------------------------------+
+-------------------------------------------------------+
| CACHE CONFIGURATION |
|-------------------------------------------------------|
| Note: 128KB cache is located on the Celeron 300A CPU. |
+-------------------------------------------------------+
