# NOVACOR, INC.
SUPER 386
Processor 80386DX
Processor Speed 25/33MHz
Chip Set OPTI
Max. Onboard DRAM 8MB
Cache None
BIOS AMI
Dimensions 332mm x 222mm
I/O Options 32-bit external memory card slot
NPU Options 80387/3167

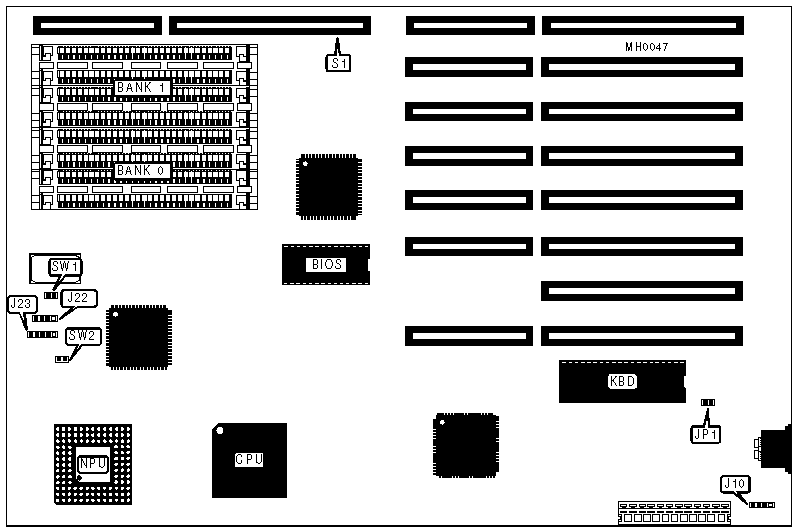

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| External battery | J10 | 32-bit external | S1 |
| | | memory card | |
|-------------------+----------+------------------+----------|
| Speaker | J22 | Reset switch | SW1 |
|-------------------+----------+------------------+----------|
| Power LED & | J23 | Turbo switch | SW2 |
| keylock | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+---------+-----------|
| ยป | Monitor type select color | JP1 | Closed |
|---+----------------------------------+---------+-----------|
| | Monitor type select monochrome | JP1 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+----------------+------------+----------+----------|
| 1MB | (4) 256K x 9 | NONE | NONE | NONE |
|--------+----------------+------------+----------+----------|
| 2MB | (4) 256K x 9 | (4) 256K x | NONE | NONE |
| | | 9 | | |
|--------+----------------+------------+----------+----------|
| 4MB | (4) 256K x 9 | (4) 256K x | (4) 256K | (4) 256K |
| | | 9 | x 9 | x 9 |
|--------+----------------+------------+----------+----------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|--------+----------------+------------+----------+----------|
| 5MB | (4) 256K x 9 | (4) 1 M x | NONE | NONE |
| | | 9 | | |
|--------+----------------+------------+----------+----------|
| 6MB | (4) 256K x 9 | (4) 1M x 9 | NONE | NONE |
|--------+----------------+------------+----------+----------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|--------+----------------+------------+----------+----------|
| 10MB | (4) 256K x 9 | (4) 256K x | (4) 1M x | (4) 1M x |
| | | 9 | 9 | 9 |
|--------+----------------+------------+----------+----------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x | NONE |
| | | | 9 | |
|--------+----------------+------------+----------+----------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x | (4) 1M x |
| | | | 9 | 9 |
|------------------------------------------------------------|
| Note:Banks 2 & 3 are used when a 32-bit external memory |
| card is installed at S1. |
+------------------------------------------------------------+
