# NEC TECHNOLOGIES, INC.
PowerMate Express 486/33e (Enhanced)
PowerMate Express DX2/50e
Processor 80486DX/80486DX2
Processor Speed 25/33/50(internal)/66(internal)MHz
Chip Set Intel
Max. Onboard DRAM 16MB
Cache 128KB (on CPU card)
BIOS NEC
Dimensions 330mm x 218mm
I/O Options Proprietary CPU module slot, keyboard/bus
mouse interface,serial ports (2), parallel
port, video port, proprietary video card
sockets, proprietary external memory card
slot, IDE interface, floppy drive interface
NPU Options None

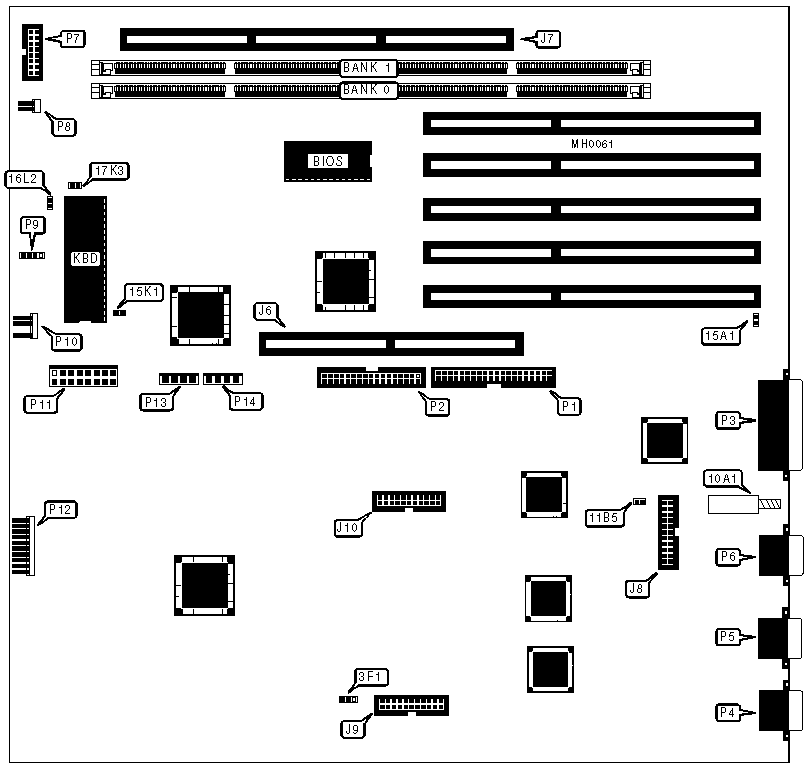

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+-------------------+----------|
| Proprietary CPU | J6 | Video port | P6 |
| module | | | |
|------------------+----------+-------------------+----------|
| Proprietary | J7 | Keyboard/Bus | P7 |
| external memory | | mouse interface | |
| card | | | |
|------------------+----------+-------------------+----------|
| Proprietary | J8, J9, | Fan power | P8 |
| video card | & J10 | | |
|------------------+----------+-------------------+----------|
| IDE interface | P1 | IDE interface LED | P9 |
|------------------+----------+-------------------+----------|
| Floppy drive | P2 | External battery | P10 |
| interface | | | |
|------------------+----------+-------------------+----------|
| Parallel port | P3 | Power supply | P11 & |
| | | | P12 |
|------------------+----------+-------------------+----------|
| Serial port | P4 | Drive power | P13 |
| (COM1) | | | |
|------------------+----------+-------------------+----------|
| Serial port | P5 | Drive power | P14 |
| (COM2) | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Password enabled | 3F1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Password disabled | 3F1 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Test mode disabled | 10A1 | Open |
|---+----------------------------------+--------+------------|
| | Test mode enabled | 10A1 | Closed |
|---+----------------------------------+--------+------------|
| » | I/O recovery disabled | 11B5 | Open |
|---+----------------------------------+--------+------------|
| | I/O recovery enabled | 11B5 | Closed |
|---+----------------------------------+--------+------------|
| » | NEC VGA adapter disabled (U.S. | 15A1 | Open |
| | setting) | | |
|---+----------------------------------+--------+------------|
| | NEC VGA adapter enabled | 15A1 | Closed |
|---+----------------------------------+--------+------------|
| » | Manufacturing loop disabled | 15K1 | Closed |
|---+----------------------------------+--------+------------|
| | Manufacturing loop enabled | 15K1 | Open |
|---+----------------------------------+--------+------------|
| » | Floppy drive interface enabled | 16L2 | Open |
|---+----------------------------------+--------+------------|
| | Floppy drive interface disabled | 16L2 | Closed |
|---+----------------------------------+--------+------------|
| » | BIOS flash reprogramming enabled | 17K3 | Open |
|---+----------------------------------+--------+------------|
| | BIOS flash reprogramming | 17K3 | Closed |
| | disabled | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (2) 1M x 36 | NONE |
|------------------+--------------------+--------------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 |
|------------------+--------------------+--------------------|
| 32MB | (2) 4M x 36 | NONE |
|------------------+--------------------+--------------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 |
+------------------------------------------------------------+

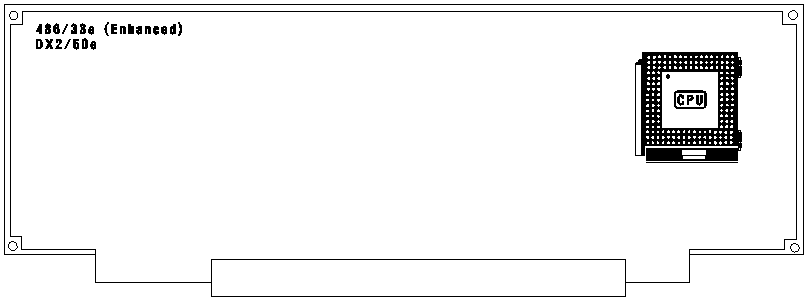

IMG IMG 2
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Notes:The CPU card comes standard with 128KB of cache and |
| is not configurable.. |
| |
| The locations of the cache chips are unidentified. |
+------------------------------------------------------------+
