# MECTEL INTERNATIONAL, INC.
AMW 386
Processor 80386DX
Processor Speed 25/33/40/50MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 32/64/128/256KB
BIOS MR
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387/3167

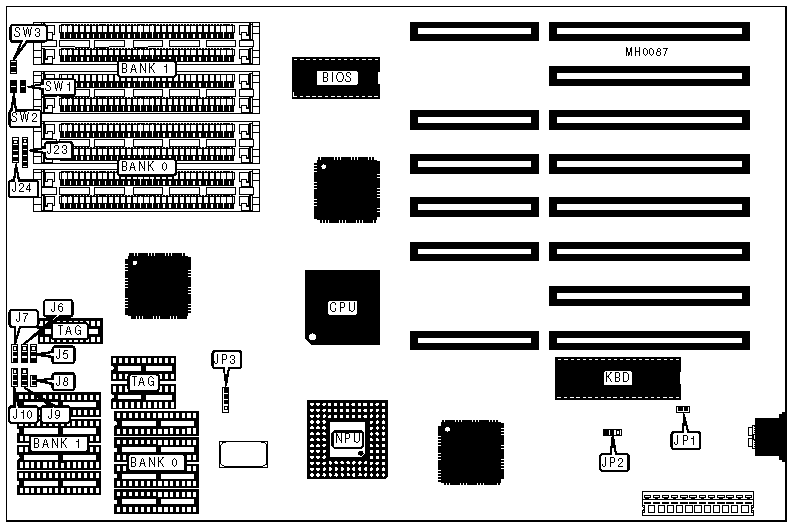

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| Power LED & keylock | J23 | Turbo switch | SW2 |
|---------------------+----------+----------------+----------|
| Speaker | J24 | Turbo LED | SW3 |
|---------------------+----------+----------------+----------|
| Reset switch | SW1 | | |
+------------------------------------------------------------+
.
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select color | JP1 | Open |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Bus speed select CPU CLK/6 | JP3 | pins 1 & 2 |
| | | | open |
|---+--------------------------------+--------+--------------|
| | Bus speed select CPU CLK/8 | JP3 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 1MB | (4) 256K x 9 | NONE |
|----------------+---------------------+---------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|----------------+---------------------+---------------------|
| 4MB | (4) 1M x 9 | NONE |
|----------------+---------------------+---------------------|
| 5MB | (4) 256K x 9 | (4) 1 M x 9 |
|----------------+---------------------+---------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 16MB | (4) 4M x 9 | NONE |
|----------------+---------------------+---------------------|
| 17MB | (4) 256K x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|----------------+---------------------+---------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|----------+----------------+----------------+---------------|
| 32KB | (4) 8K x 8 | NONE | (3) 4K x 4 |
|----------+----------------+----------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (3) 4K x 4 |
|----------+----------------+----------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (3) 16K x 4 |
|----------+----------------+----------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (3) 16K x 4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J5 | J6 | J7 | J8 | J9 | J10 |
|--------+--------+--------+--------+-------+--------+-------|
| 32KB | 1 & 2 | 1 & 2 | 1 & 2 | Open | 2 & 3 | 2 & 3 |
|--------+--------+--------+--------+-------+--------+-------|
| 64KB | 2 & 3 | 1 & 2 | 1 & 2 | Open | 2 & 3 | 1 & 2 |
|--------+--------+--------+--------+-------+--------+-------|
| 128KB | 2 & 3 | 1 & 2 | 2 & 3 | Open | 2 & 3 | 1 & 2 |
|--------+--------+--------+--------+-------+--------+-------|
| 256KB | 2 & 3 | 2 & 3 | 2 & 3 | Open | 1 & 2 | 1 & 2 |
|------------------------------------------------------------|
| Note:Pins designated should be in the closed position. |
+------------------------------------------------------------+
