       # MICRONICS COMPUTERS, INC.

          386-20

          Processor         80386DX
          Processor Speed   20MHz
          Chip Set          Micronics
          Max. Onboard DRAM 8MB (on system memory card)
          Cache             16KB (on M100C and M400C system memory cards
                            only)
          BIOS              Award/Phoenix
          Dimensions        355.6mm x 255.4mm
          I/O Options       32-bit system memory card slot
          NPU Options       80387/3167

   IMG IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose               | Location | Purpose      | Location |
          |-----------------------+----------+--------------+----------|
          | External battery      |    J1    | Speaker      |   J22    |
          |-----------------------+----------+--------------+----------|
          | 32-bit system memory  |   J11    | Turbo LED    |    W7    |
          | card power            |          |              |          |
          |-----------------------+----------+--------------+----------|
          | 32-bit system memory  |   J20    | Reset switch |    W9    |
          | card                  |          |              |          |
          |-----------------------+----------+--------------+----------|
          | Power LED & keylock   |   J21    |              |          |
          |------------------------------------------------------------|
          | Note:The system memory card is inserted into both J11 &    |
          | J20.                                                       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |           Function            | Jumper/Switch |  Position  |
          |-------------------------------+---------------+------------|
          | » | Factory configured - do   |     SW1/1     |     On     |
          |   | not alter                 |               |            |
          |---+---------------------------+---------------+------------|
          |   | NPU enabled               |     SW1/2     |     On     |
          |---+---------------------------+---------------+------------|
          |   | NPU disabled              |     SW1/2     |    Off     |
          |---+---------------------------+---------------+------------|
          | » | Factory configured - do   |     SW1/3     |    Off     |
          |   | not alter                 |               |            |
          |---+---------------------------+---------------+------------|
          | » | Video BIOS shadowing      |     SW1/4     |     On     |
          |   | enabled                   |               |            |
          |---+---------------------------+---------------+------------|
          |   | Video BIOS shadowing      |     SW1/4     |    Off     |
          |   | disabled                  |               |            |
          |---+---------------------------+---------------+------------|
          | » | Factory configured - do   |     SW1/5     |    Off     |
          |   | not alter                 |               |            |
          |---+---------------------------+---------------+------------|
          | » | Monitor type select color |     SW1/6     |     On     |
          |---+---------------------------+---------------+------------|
          |   | Monitor type select       |     SW1/6     |    Off     |
          |   | monochrome                |               |            |
          |---+---------------------------+---------------+------------|
          |   | Cache enabled             |     SW1/7     |     On     |
          |---+---------------------------+---------------+------------|
          |   | Cache disabled            |     SW1/7     |    Off     |
          |---+---------------------------+---------------+------------|
          | » | Factory configured - do   |     SW1/8     |    Off     |
          |   | not alter                 |               |            |
          |---+---------------------------+---------------+------------|
          |   | BIOS type select 27128    |      W1       | pins 1 & 2 |
          |   |                           |               |   closed   |
          |---+---------------------------+---------------+------------|
          |   | BIOS type select 27256    |      W1       | pins 2 & 3 |
          |   |                           |               |   closed   |
          |---+---------------------------+---------------+------------|
          |   | NPU mode select           |      W4       | pins 2 & 3 |
          |   | synchronous with CPU      |               |   closed   |
          |   |                           |      W6       |            |
          |   |                           |               |    open    |
          |---+---------------------------+---------------+------------|
          |   | NPU mode select           |      W4       | pins 1 & 2 |
          |   | asynchronous with CPU     |               |   closed   |
          |   |                           |      W6       |            |
          |   |                           |               |   closed   |
          |------------------------------------------------------------|
          | Note:Cache configuration applies to main memory boards     |
          | M100C and M400C only.                                      |
          +------------------------------------------------------------+

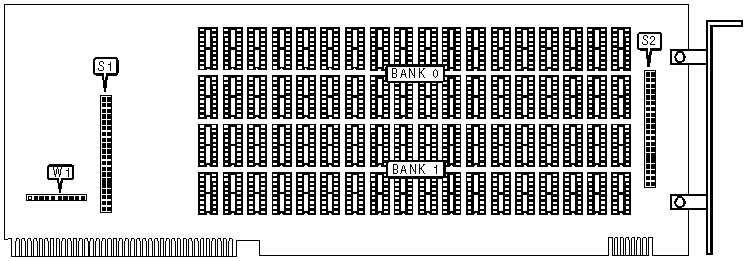

          SYSTEM MEMORY CARD MODEL M100

   IMG IMG 2


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose                                 |     Location     |
          |-----------------------------------------+------------------|
          | 32-bit piggy back memory card           |     S1 & S2      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |   Bank 0    |   Bank 1    |        Jumper W1        |
          |------+-------------+-------------+-------------------------|
          | 1MB  | (36) 256K x |    NONE     | pins 2 & 3, 4 & 5, 7 &  |
          |      |      1      |             |        8 closed         |
          |------+-------------+-------------+-------------------------|
          | 2MB  | (36) 256K x | (36) 256K x | pins 1 & 2, 4 & 5, 7 &  |
          |      |      1      |      1      |        8 closed         |
          +------------------------------------------------------------+

   IMG IMG 3


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose                                 |     Location     |
          |-----------------------------------------+------------------|
          | 32-bit piggy back memory card           |     S1 & S2      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |   Bank 0    |   Bank 1    |        Jumper W1        |
          |------+-------------+-------------+-------------------------|
          | 4MB  | (36) 1M x 1 |    NONE     |    pins 1 & 2, 3 & 4    |
          |      |             |             |         closed          |
          |------+-------------+-------------+-------------------------|
          | 8MB  | (36) 1M x 1 | (36) 1M x 1 |    pins 3 & 4 closed    |
          +------------------------------------------------------------+

          SYSTEM MEMORY CARD MODEL M300

   IMG IMG 4


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose                                 |     Location     |
          |-----------------------------------------+------------------|
          | 32-bit piggy back memory card           |     S1 & S2      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size | Bank  | Parity | Bank  | Parity | Bank 2 |   SW1    |
          |      |   0   | (P-0)  |   1   | (P-1)  |        |          |
          |------+-------+--------+-------+--------+--------+----------|
          | 1MB  |  (8)  |  (4)   | NONE  |  NONE  |  NONE  | switches |
          |      | 44256 |  4464  |       |        |        | 5, 6, &  |
          |      |       |        |       |        |        | 8 closed |
          |------+-------+--------+-------+--------+--------+----------|
          | 2MB  |  (8)  |  (4)   |  (8)  |  (4)   |  NONE  | switches |
          |      | 44256 |  4464  | 44256 |  4464  |        | 3, 5, 6, |
          |      |       |        |       |        |        |   & 8    |
          |      |       |        |       |        |        |  closed  |
          |------+-------+--------+-------+--------+--------+----------|
          | 6MB  |  (8)  |  (4)   |  (8)  |  (4)   |  (36)  | switches |
          |      | 44256 |  4464  | 44256 |  4464  | 411000 | 2, 3, 5, |
          |      |       |        |       |        |        |  6, & 8  |
          |      |       |        |       |        |        |  closed  |
          +------------------------------------------------------------+

   IMG IMG 5


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose                                 |     Location     |
          |-----------------------------------------+------------------|
          | 32-bit piggy back memory card           |     S1 & S2      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |  Bank 0   |  Bank 1   |   Jumper W1   | Jumper W3  |
          |-------+-----------+-----------+---------------+------------|
          |  1MB  | (36) 256K |   NONE    |  pins 1 & 2   |   closed   |
          |       |    x 1    |           |    closed     |            |
          |-------+-----------+-----------+---------------+------------|
          |  2MB  | (36) 256K | (36) 256K |  pins 2 & 3   |   closed   |
          |       |    x 1    |    x 1    |    closed     |            |
          |------------------------------------------------------------|
          | Note:Jumper W3 enables cache controller chip. Disabling    |
          | this jumper will decrease system speed.                    |
          +------------------------------------------------------------+

          SYSTEM MEMORY CARD MODEL M400C

   IMG IMG 6


          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size  |  Bank 0   |  Bank 1   |   Jumper W1   | Jumper W3  |
          |-------+-----------+-----------+---------------+------------|
          |  4MB  | (36) 1M x |   NONE    |  pins 1 & 2   |   closed   |
          |       |     1     |           |    closed     |            |
          |-------+-----------+-----------+---------------+------------|
          |  8MB  | (36) 1M x | (36) 1M x |  pins 2 & 3   |   closed   |
          |       |     1     |     1     |    closed     |            |
          |------------------------------------------------------------|
          | Note:Jumper W3 enables cache controller chip. Disabling    |
          | this jumper will decrease system speed.                    |
          +------------------------------------------------------------+
