# MITAC INTERNATIONAL CORPORATION
IH 3116/IH 3120/IH 3125
Processor 80386SX
Processor Speed 16/20MHz
Chip Set C & T SCAT
Max. Onboard DRAM 16MB
Cache None
BIOS AMI/Award/Phoenix
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387SX

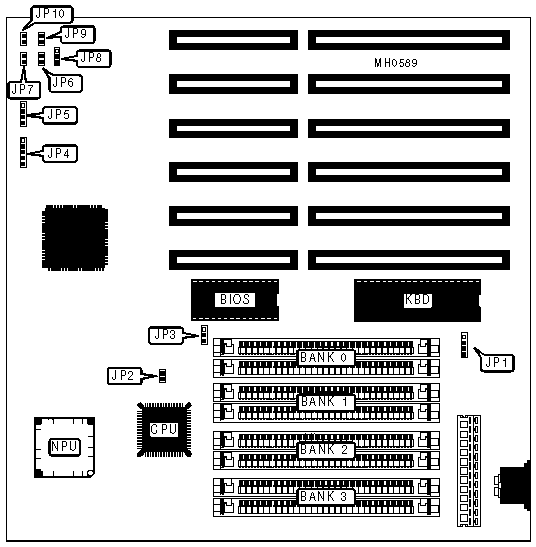

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | JP1 | Turbo LED | JP6 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | JP4 | Reset switch | JP7 |
|---------------------+----------+----------------+----------|
| Speaker | JP5 | Turbo switch | JP9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Pipeline mode enabled | JP2 | Closed |
|---+----------------------------------+--------+------------|
| | Pipeline mode disabled | JP2 | Open |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP3 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP3 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Power good signal detect from | JP8 | pins 2 & 3 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | JP8 | pins 1 & 2 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP10 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP10 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 512KB | (2) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|-------+-------------+------------+------------+------------|
| 1MB | (2) 256K x | (2) 256K x | NONE | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 1.5MB | (2) 256K x | (2) 256K x | (2) 256K x | NONE |
| | 9 | 9 | 9 | |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 256K x | (2) 256K x | (2) 256K x | (2) 256K x |
| | 9 | 9 | 9 | 9 |
|-------+-------------+------------+------------+------------|
| 2MB | (2) 1M x 9 | NONE | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 6MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | NONE |
|-------+-------------+------------+------------+------------|
| 8MB | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 | (2) 1M x 9 |
|-------+-------------+------------+------------+------------|
| 9MB | (2) 256K x | (2) 256K x | (2) 4M x 9 | NONE |
| | 9 | 9 | | |
|-------+-------------+------------+------------+------------|
| 10MB | (2) 1M x 9 | (2) 4M x 9 | NONE | NONE |
|-------+-------------+------------+------------+------------|
| 16MB | (2) 4M x 9 | (2) 4M x 9 | NONE | NONE |
+------------------------------------------------------------+
