# MAGUS DATA TECHNOLOGY, INC.
S486
Processor 80486SX/80486DX/80486DX2
Processor Speed 20/25/33/50(internal)/66(internal)MHz
Chip Set Headland
Max. Onboard DRAM 128MB
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options None
NPU Options 4167

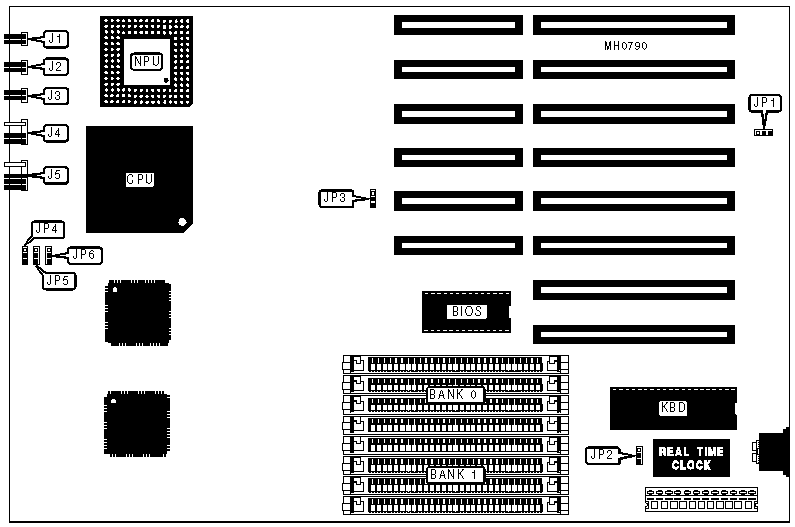

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| Turbo switch | J1 | Speaker | J4 |
|----------------+----------+---------------------+----------|
| Turbo LED | J2 | Power LED & keylock | J5 |
|----------------+----------+---------------------+----------|
| Reset switch | J3 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Power good signal detect from | JP1 | pins 1 & 2 |
| | power supply | | closed |
|---+----------------------------------+--------+------------|
| | Power good signal detect from | JP1 | pins 2 & 3 |
| | board | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP2 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP2 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|----------------+---------------------+---------------------|
| 1MB | (4) 256K x 9 | NONE |
|----------------+---------------------+---------------------|
| 2MB 1 | (4) 256K x 9 | (4) 256K x 9 |
|----------------+---------------------+---------------------|
| 4MB | (4) 1M x 9 | NONE |
|----------------+---------------------+---------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 8MB 1 | (4) 1M x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 16MB | (4) 4M x 9 | NONE |
|----------------+---------------------+---------------------|
| 17MB | (4) 4M x 9 | (4) 256K x 9 |
|----------------+---------------------+---------------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 32MB 1 | (4) 4M x 9 | (4) 4M x 9 |
|----------------+---------------------+---------------------|
| 64MB | (4) 16M x 9 | NONE |
|----------------+---------------------+---------------------|
| 65MB | (4) 16M x 9 | (4) 256K x 9 |
|----------------+---------------------+---------------------|
| 68MB | (4) 16M x 9 | (4) 1M x 9 |
|----------------+---------------------+---------------------|
| 80MB | (4) 16M x 9 | (4) 4M x 9 |
|----------------+---------------------+---------------------|
| 128MB 1 | (4) 16M x 9 | (4) 16M x 9 |
|------------------------------------------------------------|
| Note 1 :These configurations support zero wait state |
| reads. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP4 | JP5 | JP6 |
|----------+----------------+----------------+---------------|
| 80486SX | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80487SX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80486DX2 | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP3 |
|----------------------------+-------------------------------|
| 25MHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 33MHz | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 50iMHz | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 66iMHz | pins 1 & 2 closed |
+------------------------------------------------------------+
