# ORCHID TECHNOLOGY
TINY TURBO 286
Processor 80286
Processor Speed 8MHz
Chip Set None
Max. Onboard DRAM None
Cache None
BIOS None
Dimensions 152mm x 102mm
I/O Options None
NPU Options 80287

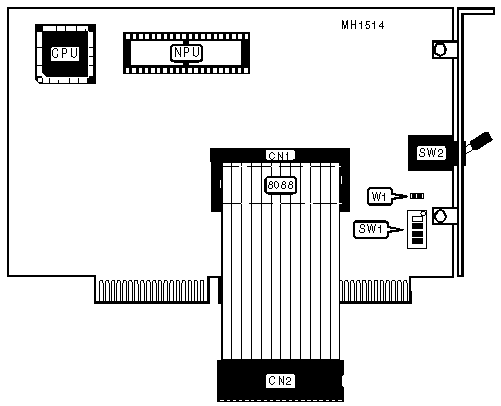

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------------+----------+--------------+----------|
| Daughtercard | CN1 | Turbo Switch | SW2 |
|-----------------------+----------+--------------+----------|
| Turbo cable for 8088 | CN2 | | |
| socket | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+---------+-----------|
| » | Turbo card installed in slots | W1 | Open |
| | other than J8 | | |
|----+---------------------------------+---------+-----------|
| | Turbo card installed in slot J8 | W1 | Closed |
|------------------------------------------------------------|
| Note: When the turbo card is installed in slot J8 and |
| jumper W1 is closed, a conflict may occur at I/O address |
| 200-21Fh. If this occurs install the turbo board in slot |
| J7 and open jumper W1. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| HOST COMPUTER MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Host |SW1/switch 1|SW1/switch 2|SW1/switch 3|SW1/switch |
| Memory | | | | 4 |
|---------+------------+------------+------------+-----------|
| | 64K | Off | Off | Off | Off |
|--+------+------------+------------+------------+-----------|
| | 128K | On | Off | Off | Off |
|--+------+------------+------------+------------+-----------|
| | 192K | Off | On | Off | Off |
|--+------+------------+------------+------------+-----------|
| | 256K | On | On | Off | Off |
|--+------+------------+------------+------------+-----------|
| | 320K | Off | Off | On | Off |
|--+------+------------+------------+------------+-----------|
| | 384K | On | Off | On | Off |
|--+------+------------+------------+------------+-----------|
| | 448K | Off | On | On | Off |
|--+------+------------+------------+------------+-----------|
| | 512K | On | Off | On | Off |
|--+------+------------+------------+------------+-----------|
| | 576K | Off | On | Off | On |
|--+------+------------+------------+------------+-----------|
|» | 640K | On | Off | Off | On |
+------------------------------------------------------------+
