# MYLEX CORPORATION
MPE-PNTM
Processor Pentium
Processor 60/66MHz
Speed
Chip Set Mercury
Max. onboard 192MB
DRAM
Cache 256/512KB
BIOS AMI
Dimensions 356mm x 304mm
I/O Options 32-bit PCI local bus slots (3), floppy drive
interface, IDE interface,
parallel port, serial ports (2)
NPU Options None

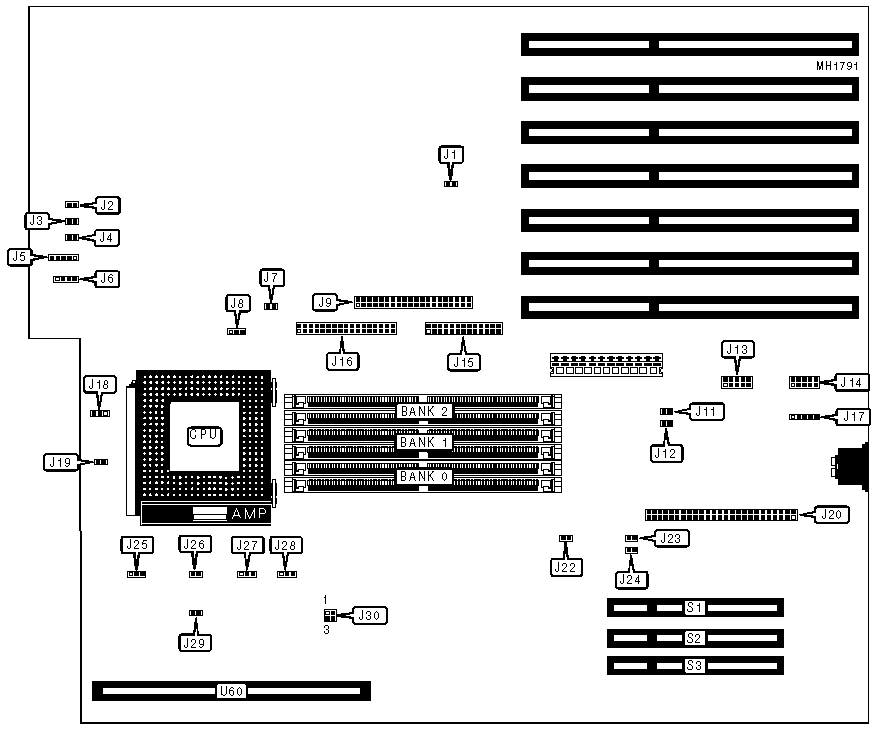

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Reset switch | J4 | Internal keyboard | J17 |
| | | connector | |
|---------------+----------+----------------------+----------|
| Power LED & | J5 | Chassis fan power | J18 |
| keylock | | | |
|---------------+----------+----------------------+----------|
| Speaker | J6 | SCSI connector | J20 |
|---------------+----------+----------------------+----------|
| IDE interface | J9 | IDE interface LED | J22 |
|---------------+----------+----------------------+----------|
| Serial port 1 | J13 | 32-bit PCI local bus | S1 |
| | | slot | |
|---------------+----------+----------------------+----------|
| Serial port 2 | J14 | 32-bit PCI local bus | S2 |
| | | slot | |
|---------------+----------+----------------------+----------|
| Parallel port | J15 | 32-bit PCI local bus | S3 |
| | | slot | |
|---------------+----------+----------------------+----------|
| Floppy drive | J16 | Cache SIMM module | U60 |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | IDE DMA disabled | J1 | Open |
|---+----------------------------------+--------+------------|
| | IDE DMA on channel 6 | J1 | Closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J2 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | J3 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | J3 | Open |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J7 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J8 | Pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J11 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J12 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Write-back cache enabled | J19 | Open |
|---+----------------------------------+--------+------------|
| | Write-thru cache enabled | J19 | Closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J26 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Standard asynchronous SRAM | J28 | Pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Burst synchronous SRAM | J28 | Pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | J29 | Open |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Cache parity support disabled | J30 | Pins 1 & 2 |
| | | | and 3 & 4 |
|---+----------------------------------+--------+------------|
| | Cache parity support enabled | J30 | Pins 1 & 3 |
| | | | and 2 & 4 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 2MB | (2) 256K x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 4MB | (2) 256K x 36 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 6MB | (2) 256K x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 8MB | (2) 1M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 10MB | (2) 1M x 36 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 12MB | (2) 1M x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 16MB | (2) 1M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 16MB | (2) 2M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 18MB | (2) 1M x 36 | (2) 1M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 18MB | (2) 2M x 36 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 20MB | (2) 2M x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 24MB | (2) 2M x 36 | (2) 1M x 36 | NONE |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 4M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 34MB | (2) 4M x 36 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 40MB | (2) 2M x 36 | (2) 2M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 40MB | (2) 4M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (2) 2M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 4M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 64MB | (2) 2M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 64MB | (2) 8M x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 66MB | (2) 8M x 36 | (2) 256K x 36 | NONE |
|------------+---------------+---------------+---------------|
| 68MB | (2) 8M x 36 | (2) 256K x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 72MB | (2) 8M x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 2M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 96MB | (2) 8M x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 98MB | (2) 8M x 36 | (2) 4M x 36 | (2) 256K x 36 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 4M x 36 | (2) 1M x 36 |
|------------+---------------+---------------+---------------|
| 114MB | (2) 8M x 36 | (2) 4M x 36 | (2) 2M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 4M x 36 | (2) 4M x 36 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 8M x 36 | (2) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 196MB | (2) 8M x 36 | (2) 8M x 36 | (2) 8M x 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J25 | J27 |
|------------------+--------------------+--------------------|
| » | 0KB | Pins 1 & 2 closed | Pins 1 & 2 closed |
|---+--------------+--------------------+--------------------|
| | 256KB | Pins 1 & 2 closed | Pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| | 512KB | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCSI INTERFACE CONFIGURATION |
|------------------------------------------------------------|
| Bus Power | Termination | J23 | J24 |
|-------------------+----------------+------------+----------|
| » | Internal | Internal | Closed | Open |
|-----+-------------+----------------+------------+----------|
| | External | External | Closed | Open |
|------------------------------------------------------------|
| Note:When SCSI cable is connected, J23 and J24 should be |
| closed. |
+------------------------------------------------------------+
