# OCEAN INFORMATION SYSTEMS, INC.
HIPPO VL+ REV. 3
Processor 80486SX/80487SX/80486DX/80486DX2/80486DX4/Pentium Overdrive
Processor 25/33/50(internal)/66(internal)/75(internal)/100(internal)MHz
Speed
Chip Set Headland
Max. 128MB
Onboard
DRAM
Cache None
BIOS AMI
Dimensions 330mm x 218mm
I/O 32-bit VESA local bus slots (3)
Options
NPU None
Options

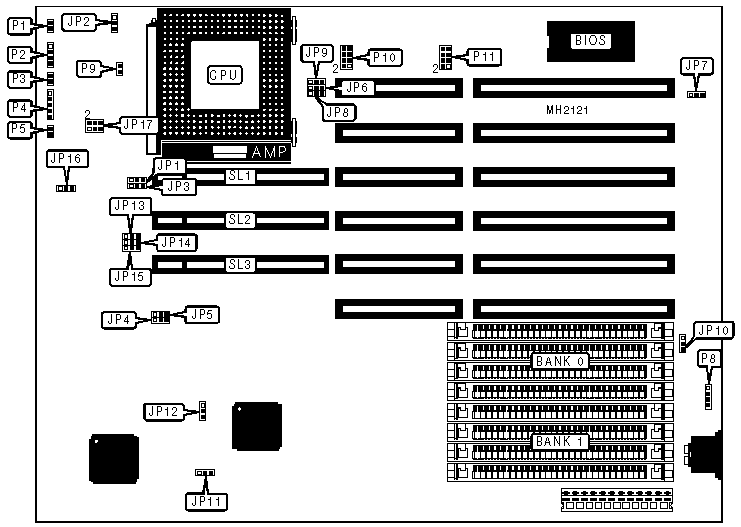

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------+----------+----------------------+----------|
| Turbo switch | P1 | Turbo LED | P5 |
|---------------+----------+----------------------+----------|
| Speaker | P2 | External battery | P8 |
|---------------+----------+----------------------+----------|
| Reset switch | P3 | Chassis fan power | P9 |
|---------------+----------+----------------------+----------|
| Power LED & | P4 | 32-bit VESA Local | SL1 - |
| keylock | | bus slots | SL3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Factory configured - do not | JP1 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP2 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP3 | pins 1 & 2 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select monochrome | JP7 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select color | JP7 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP10 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP10 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP11 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP12 | N/A |
| | alter | | |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP13 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP14 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP15 | pins 2 & 3 |
| | alter | | closed |
|---+----------------------------------+--------+------------|
| » | Factory configured - do not | JP16 | pins 1 & 2 |
| | alter | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 80MB | (4) 4M x 9 | (4) 16M x 9 |
|------------------+--------------------+--------------------|
| 128MB | (4) 16M x 9 | (4) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP6 | JP8 | JP9 |
|-----------------+----------------+------------+------------|
| 80486SX | pins 2 & 3 | N/A | pins 1 & 2 |
| | closed | | closed |
|-----------------+----------------+------------+------------|
| 80487SX | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|-----------------+----------------+------------+------------|
| 80486DX/DX2/DX4 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | P10 | P11 |
|----------------+----------------------+--------------------|
| 80486SX/DX/DX2 | pins 3 & 4, 5 & 6, 7 | pins 3 & 4, 5 & 6, |
| | & 8 closed | 7 & 8 closed |
|----------------+----------------------+--------------------|
| 80486DX4 | Open | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP4 | JP5 |
|------------------+--------------------+--------------------|
| 25MHz | pins 2 & 3 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 33MHz | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 50iMHz | pins 2 & 3 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 66iMHz | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 75iMHz | pins 2 & 3 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| 100iMHz | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP17 |
|----------------------------+-------------------------------|
| 2x | pins 3 & 4 closed |
|----------------------------+-------------------------------|
| 2.5x | pins 5 & 6 closed |
|----------------------------+-------------------------------|
| 3x | pins 1 & 2 closed |
+------------------------------------------------------------+
