# MICRO EXPRESS, INC.
FOREX 386/486 (REV. B2/B3)
Processor 80386DX/80486SX/80487SX/80486DX /80486DX2
Processor Speed 20/25/33/40/50(internal)/50/66(internal)MHz
Chip Set FOREX
Max. Onboard DRAM 32MB
Cache 64/128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387DX/3167

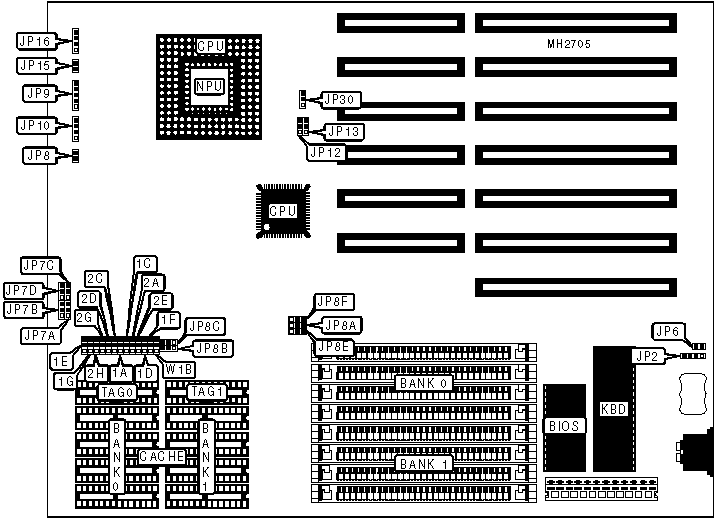

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | JP2 | Speaker | JP10 |
|---------------------+----------+----------------+----------|
| Reset switch | JP8 | Turbo switch | JP15 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | JP9 | Turbo LED | JP16 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|---------------------------------------+---------+----------|
| » | Factory configured - do not alter | 2E | N/A |
|---+-----------------------------------+---------+----------|
| » | Factory configured - do not alter | JP5 | N/A |
|---+-----------------------------------+---------+----------|
| » | CMOS memory normal operation | JP6 | Open |
|---+-----------------------------------+---------+----------|
| | CMOS memory clear | JP6 | Closed |
|------------------------------------------------------------|
| Note: The location of JP5 is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG 0 | TAG 1 |
|-------+-------------+------------+------------+------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 | NONE |
|-------+-------------+------------+------------+------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 | NONE |
|-------+-------------+------------+------------+------------|
| 256KB | (4) 32K x 8 | (4) 32K x | NONE | (1) 32K x |
| | | 8 | | 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP8A | JP8B | JP8C | JP8E | JP8F |
|----------+----------+----------+---------+--------+--------|
| 64KB | 2 & 3 | 1 & 2 | 1 & 2 | 2 & 3 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 128KB | 1 & 2 | 2 & 3 | 2 & 3 | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 256KB | 2 & 3 | 1 & 2 | 1 & 2 | 1 & 2 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins desingated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP12 | JP13 | JP30 |
|----------+----------------+----------------+---------------|
| 80486SX | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80487SX | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80486DX | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
|----------+----------------+----------------+---------------|
| 80486DX2 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | 1A | 1C | 1D | 1E | 1F | 1G | 2A |
|------------+-------+-------+-------+-----+-----+-----+-----|
| 80386 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & | 2 & | 2 & | 2 & |
| | | | | 3 | 3 | 3 | 3 |
|------------+-------+-------+-------+-----+-----+-----+-----|
| 80486 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & | 1 & | 1 & | 1 & |
| | | | | 2 | 2 | 2 | 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
| The location of W1X & W2X are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Type | 2C | 2D | 2G | 2H | W1B | W1X | W2X |
|------------+-----+-----+-----+-----+-------+-------+-------|
| 80386 | 2 & | 2 & | 2 & | 2 & | 2 & 3 | 2 & 3 | 2 & 3 |
| | 3 | 3 | 3 | 3 | | | |
|------------+-----+-----+-----+-----+-------+-------+-------|
| 80486 | 1 & | 1 & | 1 & | 1 & | 1 & 2 | 1 & 2 | 1 & 2 |
| | 2 | 2 | 2 | 2 | | | |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
| The location of W1X & W2X are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU CLOCK SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP7A | JP7B | JP7C | JP7D |
|--------+------------+------------+------------+------------|
| 20MHz | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 25MHz | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 33MHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 40MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 50iMHz | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 50MHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 66iMHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed | closed |
|--------+------------+------------+------------+------------|
| 80MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
