# M TECHNOLOGY, INC.
R526 PENTIUM PCI/ISA
Processor Pentium
Processor 75/90/100/120/133/150/166MHz
Speed
Chip Set SIS
Max. Onboard 512MB
DRAM
Cache 256/512/1024KB
BIOS Award
Dimensions 330mm x 220mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
green PC connector, IDE interfaces (2), parallel
port, PS/2 mouse interface, serial ports (2)
NPU Options None

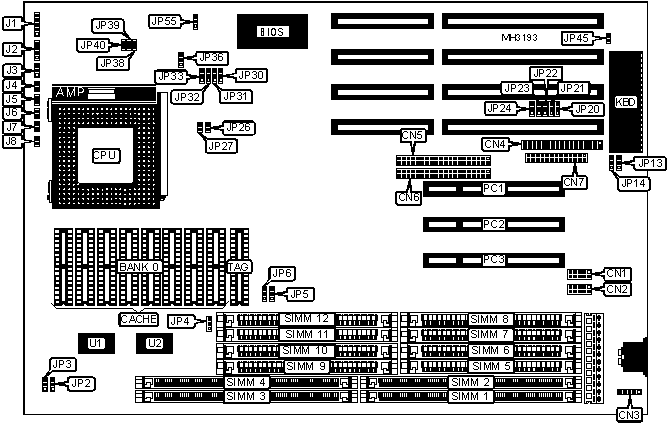

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 2 | CN1 | Speaker | J2 |
|-------------------+----------+------------------+----------|
| Serial port 1 | CN2 | Turbo switch | J3 |
|-------------------+----------+------------------+----------|
| PS/2 mouse | CN3 | Turbo LED | J4 |
| interface | | | |
|-------------------+----------+------------------+----------|
| Floppy drive | CN4 | Reset switch | J5 |
| interface | | | |
|-------------------+----------+------------------+----------|
| IDE interface 2 | CN5 | Green PC | J6 |
| | | connector | |
|-------------------+----------+------------------+----------|
| IDE interface 1 | CN6 | IDE interface | J7 |
| | | LED 1 | |
|-------------------+----------+------------------+----------|
| Parallel port | CN7 | IDE interface | J8 |
| | | LED 2 | |
|-------------------+----------+------------------+----------|
| Power LED & | J1 | 32-bit PCI slots | PC1 - |
| keylock | | | PC3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Pipeline disabled | JP32 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Pipeline enabled (only if burst | JP32 | pins 2 & 3 |
| | cache is installed) | | closed |
|---+----------------------------------+--------+------------|
| » | Cache type select write back | JP33 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Cache type select write through | JP33 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| » | CMOS memory normal operation | JP36 | pins 1 & 2 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | CMOS memory clear | JP36 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Monitor type select CGA | JP45 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select | JP45 | Open |
| | EGA/VGA/monochrome | | |
|---+----------------------------------+--------+------------|
| » | Flash BIOS mode select normal | JP55 | pins 2 & 3 |
| | operation | | closed |
|---+----------------------------------+--------+------------|
| | Flash BIOS mode select | JP55 | pins 1 & 2 |
| | programming mode | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION 1 |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-----------------+--------------------+---------------------|
| 4MB | (4) 1M x 9 | NONE |
|-----------------+--------------------+---------------------|
| 4MB | NONE | (1) 1M x 36 |
|-----------------+--------------------+---------------------|
| 16MB | (4) 4M x 9 | NONE |
|-----------------+--------------------+---------------------|
| 16MB | NONE | (1) 4M x 36 |
|-----------------+--------------------+---------------------|
| 64MB | (4) 16M x 9 | NONE |
|-----------------+--------------------+---------------------|
| 64MB | NONE | (1) 16M x 36 |
|------------------------------------------------------------|
| Note: Bank 0 = SIMM 5, 6, 7 & 8. Bank 1 = SIMM 1 or 4. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION 2 |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 2MB | (2) 256K x 36 | NONE | NONE |
|------------+---------------+---------------+---------------|
| 10MB | (2) 256K x 36 | (2) 1M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 18MB | (2) 256K x 36 | (2) 2M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 24MB | (2) 1M x 36 | (2) 1M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 32MB | (2) 2M x 36 | (2) 1M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 34MB | (2) 256K x 36 | (2) 4M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 48MB | (2) 1M x 36 | (2) 1M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 48MB | (2) 4M x 36 | (2) 1M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 56MB | (2) 2M x 36 | (2) 1M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 66MB | (2) 256K x 36 | (2) 8M x 36 | NONE |
|------------+---------------+---------------+---------------|
| 72MB | (2) 4M x 36 | (2) 1M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 8M x 36 | (2) 1M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 80MB | (2) 1M x 36 | (2) 8M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 88MB | (2) 2M x 36 | (2) 8M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 8M x 36 | (2) 1M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 1M x 36 | (2) 8M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 104MB | (2) 4M x 36 | (2) 8M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 112MB | (2) 2M x 36 | (2) 8M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 128MB | (2) 4M x 36 | (2) 8M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 136MB | (2) 8M x 36 | (2) 8M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 144MB | (2) 1M x 36 | (2) 1M x 36 | (8) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION 2 (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 144MB | (2) 16M x 36 | (2) 1M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 144MB | (2) 1M x 36 | (2) 16M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 152MB | (2) 2M x 36 | (2) 1M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 152MB | (2) 2M x 36 | (2) 16M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 160MB | (2) 8M x 36 | (2) 8M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 4M x 36 | (2) 1M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 16M x 36 | (2) 1M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 1M x 36 | (2) 16M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 168MB | (2) 4M x 36 | (2) 16M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 176MB | (2) 2M x 36 | (2) 16M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 192MB | (2) 4M x 36 | (2) 16M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 200MB | (2) 8M x 36 | (2) 1M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 200MB | (2) 1M x 36 | (2) 8M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 200MB | (2) 8M x 36 | (2) 16M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 200MB | (2) 16M x 36 | (2) 8M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 208MB | (2) 2M x 36 | (2) 8M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 224MB | (2) 4M x 36 | (2) 8M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 224MB | (2) 8M x 36 | (2) 16M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 224MB | (2) 16M x 36 | (2) 8M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 256MB | (2) 8M x 36 | (2) 8M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 264MB | (2) 16M x 36 | (2) 1M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 264MB | (2) 1M x 36 | (2) 16M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 264MB | (2) 16M x 36 | (2) 16M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 272MB | (2) 2M x 36 | (2) 16M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 272MB | (2) 32M x 36 | (2) 1M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 272MB | (2) 1M x 36 | (2) 32M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 280MB | (2) 2M x 36 | (2) 32M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 288MB | (2) 4M x 36 | (2) 16M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 296MB | (2) 32M x 36 | (2) 1M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 296MB | (2) 1M x 36 | (2) 32M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 296MB | (2) 4M x 36 | (2) 32M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 304MB | (2) 2M x 36 | (2) 32M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 320MB | (2) 8M x 36 | (2) 16M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 320MB | (2) 16M x 36 | (2) 8M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 320MB | (2) 4M x 36 | (2) 32M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 328MB | (2) 8M x 36 | (2) 32M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 328MB | (2) 32M x 36 | (2) 8M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 352MB | (2) 8M x 36 | (2) 32M x 36 | (8) 4M x 9 |
|------------+---------------+---------------+---------------|
| 384MB | (2) 16M x 36 | (2) 16M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 392MB | (2) 32M x 36 | (2) 1M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 392MB | (2) 1M x 36 | (2) 32M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 392MB | (2) 16M x 36 | (2) 32M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 392MB | (2) 32M x 36 | (2) 16M x 36 | (8) 1M x 9 |
|------------+---------------+---------------+---------------|
| 400MB | (2) 2M x 36 | (2) 32M x 36 | (8) 16M x 9 |
|------------+---------------+---------------+---------------|
| 416MB | (2) 4M x 36 | (2) 32M x 36 | (8) 16M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION 2 (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|---------+------------------+----------------+--------------|
| 416MB | (2) 16M x 36 | (2) 32M x 36 | (8) 4M x 9 |
|---------+------------------+----------------+--------------|
| 416MB | (2) 32M x 36 | (2) 16M x 36 | (8) 4M x 9 |
|---------+------------------+----------------+--------------|
| 448MB | (2) 8M x 36 | (2) 32M x 36 | (8) 16M x 9 |
|---------+------------------+----------------+--------------|
| 448MB | (2) 32M x 36 | (2) 8M x 36 | (8) 16M x 9 |
|---------+------------------+----------------+--------------|
| 512MB | (2) 16M x 36 | (2) 32M x 36 | (8) 16M x 9 |
|---------+------------------+----------------+--------------|
| 512MB | (2) 32M x 36 | (2) 16M x 36 | (8) 16M x 9 |
|------------------------------------------------------------|
| Note: Bank 0 = SIMM 1 & 2. Bank 1 = SIMM 3 & 4. Bank 2 = |
| SIMM 5 - 12. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION 3 |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (4) 16M x 9 | (1) 1M x 36 |
|------------------------------------------------------------|
| Note: Bank 0 = SIMM 5 - 8. Bank 1 = SIMM 2. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION 4 |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 20MB | (4) 4M x 9 | (1) 1M x 36 |
|------------------+--------------------+--------------------|
| 68MB | (4) 16M x 9 | (1) 1M x 36 |
|------------------------------------------------------------|
| Note: Bank 0 = SIMM 9 - 12. Bank 1 = SIMM 1. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Configuration | JP4 |
|----------------------------+-------------------------------|
| 1 | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 2 | pins 1 & 2 closed |
|----------------------------+-------------------------------|
| 3 | pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 4 | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | TAG | U1 & U2 |
|--------------+---------------+----------------+------------|
| 256KB (A) | (8) 32K x 8 | (1) 8K/16K/32K | NONE |
| | | x 8 | |
|--------------+---------------+----------------+------------|
| 256KB (B) | NONE | (1) 8K/16K/32K | (2) 32K x |
| | | x 8 | 32 |
|--------------+---------------+----------------+------------|
| 512KB | (8) 64K x 8 | (1) 16K/32K x | NONE |
| | | 8 | |
|--------------+---------------+----------------+------------|
| 1MB | (8) 128K x 8 | (1) 32K x 8 | NONE |
|------------------------------------------------------------|
| Note: Board can be installed with either standard or burst |
| cache. Both types cannot be present. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP5 | JP6 |
|------------------+--------------------+--------------------|
| 256KB (A) | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 256KB (B) | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 512KB | pins 2 & 3 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 1MB | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | JP2 | JP3 |
|------------------+--------------------+--------------------|
| 3.3v/5v mixed | pins 1 & 2 closed | pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3.3v | pins 2 & 3 closed | pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | Clock speed | JP26 | JP27 | JP30 | JP31 |
|----------+-------------+---------+---------+-------+-------|
| 75MHz | 50MHz | Closed | Closed | 1 & 2 | 1 & 2 |
|----------+-------------+---------+---------+-------+-------|
| 90MHz | 60MHz | Closed | Open | 1 & 2 | 1 & 2 |
|----------+-------------+---------+---------+-------+-------|
| 100MHz | 66MHz | Open | Closed | 1 & 2 | 1 & 2 |
|----------+-------------+---------+---------+-------+-------|
| 120MHz | 60MHz | Closed | Open | 2 & 3 | 1 & 2 |
|----------+-------------+---------+---------+-------+-------|
| 133MHz | 66MHz | Open | Closed | 2 & 3 | 1 & 2 |
|----------+-------------+---------+---------+-------+-------|
| 150MHz | 50MHz | Closed | Closed | 1 & 2 | 2 & 3 |
|----------+-------------+---------+---------+-------+-------|
| 150MHz | 60MHz | Closed | Open | 2 & 3 | 2 & 3 |
|----------+-------------+---------+---------+-------+-------|
| 166MHz | 66MHz | Open | Closed | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU VOLTAGE CONFIGURATION |
|------------------------------------------------------------|
| Voltage | JP38 | JP39 | JP40 |
|---------------+---------------+---------------+------------|
| 3.3v | Closed | Open | Open |
|---------------+---------------+---------------+------------|
| 3.45v - 3.6v | Open | Closed | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CONFIGURATION |
|------------------------------------------------------------|
| » DMA | JP13 | JP14 |
|------------------+--------------------+--------------------|
| | DMA 1 | pins 2 & 3 closed | pins 2 & 3 closed |
|---+--------------+--------------------+--------------------|
| » | DMA 3 | pins 1 & 2 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PS/2 MOUSE CONFIGURATION |
|------------------------------------------------------------|
| » Setting | JP20 | JP21 | JP22 | JP23 | JP24 |
|----------------+---------+--------+--------+-------+-------|
| » | Enabled | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 | 1 & 2 |
|----+-----------+---------+--------+--------+-------+-------|
| » | Disabled | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 | 2 & 3 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
