# OLIVETTI
M300-02 (BA013)
M300-02F (BA013)
Processor 80386SX
Processor Speed 16MHz (M300-02)
25MHz (M300-02F)
Chip Set Unidentified
Video Chip Set Western Digital
Maximum Onboard 10MB
Memory
Maximum Video Unidentified
Memory
Cache None
BIOS Unidentified
Dimensions 254mm x 218mm
I/O Options Floppy drive interface, IDE interface,
parallel port, PS/2 mouse port, serial port,
feature connector, VGA port, riser slot
NPU Options 80387SX
IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| VGA port | CN1 | Feature connector | CN5 |
|-----------------+----------+--------------------+----------|
| Parallel port | CN2 | IDE interface | CN6 |
|-----------------+----------+--------------------+----------|
| Serial port | CN3 | Floppy drive | CN7 |
| | | interface | |
|-----------------+----------+--------------------+----------|
| PS/2 mouse port | CN4 | Riser slot | SL1 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------+-----------+-------------------|
| | Password enabled | P2 | Pins 2 & 3 closed |
|---+------------------------+-----------+-------------------|
| | Password disabled | P2 | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|-----------------+-------------------+----------------------|
| 2MB | 2MB | None |
|-----------------+-------------------+----------------------|
| 4MB | 2MB | (2) 1M x 9 |
|-----------------+-------------------+----------------------|
| 10MB | 2MB | (2) 4M x 9 |
|------------------------------------------------------------|
| Note: Bank 0 is factory installed and is not configurable. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VIDEO MEMORY CONFIGURATION |
|------------------------------------------------------------|
| Note: The size and chip type of the video memory is |
| unidentified. |
+------------------------------------------------------------+

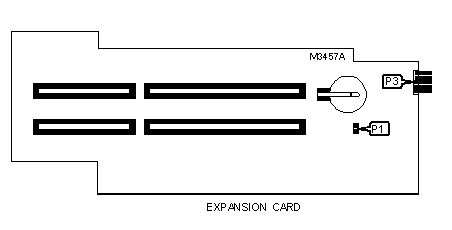

IMG IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location |
|-------------------------------+----------------------------|
| Console connector | P3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-----------+-------------|
| | Battery installed | P1 | Closed |
|---+------------------------------+-----------+-------------|
| | Battery not installed | P1 | Open |
+------------------------------------------------------------+
