# MICRONICS COMPUTERS, INC.
M4P
Processor 80486SX/80486DX/80486DX2
Processor Speed 25/33/50(internal)/66(internal)MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 128MB
Memory
Maximum Video None
Memory
Cache 128/256KB
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options 32-bit PCI slots (3), floppy drive interface,
IDE interface, parallel port, serial ports
(2)
NPU Options None

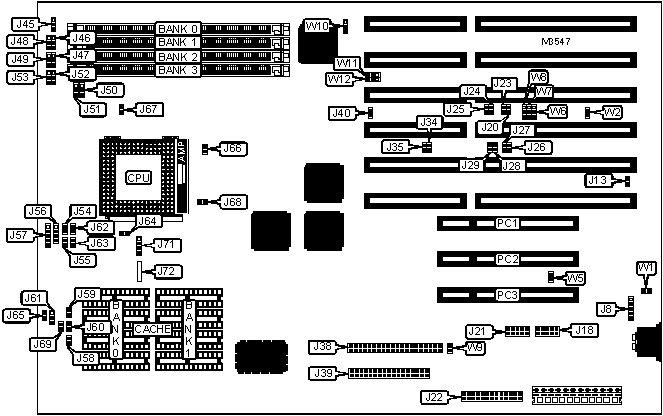

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------------+----------+---------------+----------|
| Auxiliary keyboard | J8 | Reset switch | J55 |
| connector | | | |
|----------------------+----------+---------------+----------|
| Serial port 1 | J18 | Speaker | J56 |
|----------------------+----------+---------------+----------|
| Serial port 2 | J21 | Power LED & | J57 |
| | | keylock | |
|----------------------+----------+---------------+----------|
| Parallel port | J22 | Turbo LED | J62 |
|----------------------+----------+---------------+----------|
| IDE interface | J38 | Turbo switch | J63 |
|----------------------+----------+---------------+----------|
| Floppy drive | J39 | 32-bit PCI | PC1 - |
| interface | | slots | PC3 |
|----------------------+----------+---------------+----------|
| IDE interface LED | J54 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|---------------------------------------+-------+------------|
| | IRQ5 used by PCI | J27 | Closed |
|---+-----------------------------------+-------+------------|
| | IRQ5 available for ISA peripheral | J27 | Open |
|---+-----------------------------------+-------+------------|
| | IRQ11 used by PCI | J28 | Closed |
|---+-----------------------------------+-------+------------|
| | IRQ11 available for ISA | J28 | Open |
| | peripheral | | |
|---+-----------------------------------+-------+------------|
| | IRQ15 used by PCI | J29 | Closed |
|---+-----------------------------------+-------+------------|
| | IRQ15 available for ISA | J29 | Open |
| | peripheral | | |
|---+-----------------------------------+-------+------------|
| | PS/2 mouse enabled | J34 | Closed |
|---+-----------------------------------+-------+------------|
| | PS/2 mouse disabled | J34 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J46 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J47 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J48 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J49 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J50 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J51 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J59 | Closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J60 | Open |
|---+-----------------------------------+-------+------------|
| | Cache type select write through | J61 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Cache type select write back | J61 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J64 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J65 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J66 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J67 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J68 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J69 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | J72 | Open |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | W1 | Open |
|---+-----------------------------------+-------+------------|
| | Flash BIOS write protect disabled | W2 | Closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS write protect enabled | W2 | Open |
|---+-----------------------------------+-------+------------|
| » | Monitor type select color | W5 | Closed |
|---+-----------------------------------+-------+------------|
| | Monitor type select monochrome | W5 | Open |
|---+-----------------------------------+-------+------------|
| | Parallel port IRQ select IRQ7 | W8 | Pins 1 & 2 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Parallel port IRQ select IRQ5 | W8 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| » | Factory configured - do not alter | W9 | Open |
|---+-----------------------------------+-------+------------|
| | Flash BIOS normal operation | W10 | Pins 2 & 3 |
| | | | closed |
|---+-----------------------------------+-------+------------|
| | Flash BIOS recovery mode | W10 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (1) 256K x | None | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (1) 512K x | None | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (1) 256K x | (1) 256K x | None | None |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (1) 512K x | (1) 256K x | None | None |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 3MB | (1) 256K x | (1) 256K x | (1) 256K x | None |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 3MB | (1) 256K x | (1) 512K x | None | None |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 1M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 512K x | (1) 256K x | (1) 256K x | None |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 512K x | (1) 512K x | None | None |
| | 36 | 36 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (1) 256K x | (1) 256K x | (1) 256K x | (1) 256K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 5MB | (1) 1M x 36 | (1) 256K x | None | None |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 5MB | (1) 512K x | (1) 256K x | (1) 256K x | (1) 256K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 6MB | (1) 512K x | (1) 512K x | (1) 512K x | None |
| | 36 | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 6MB | (1) 512K x | (1) 1M x 36 | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 7MB | (1) 1M x 36 | (1) 256K x | (1) 256K x | (1) 256K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 7MB | (1) 256K x | (1) 512K x | (1) 512K x | (1) 512K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 2M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 512K x | (1) 512K x | None |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 36 | (1) 1M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 512K x | (1) 512K x | (1) 512K x | (1) 512K x |
| | 36 | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 9MB | (1) 2M x 36 | (1) 256K x | None | None |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 9MB | (1) 256K x | (1) 1M x 36 | (1) 1M x | None |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 10MB | (1) 1M x 36 | (1) 512K x | (1) 512K x | (1) 512K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 10MB | (1) 512K x | (1) 1M x 36 | (1) 1M x | None |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 10MB | (1) 512K x | (1) 2M x 36 | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 11MB | (1) 2M x 36 | (1) 256K x | (1) 256K x | (1) 256K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 2M x 36 | (1) 512K x | (1) 512K x | None |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 2M x 36 | (1) 1M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 12MB | (1) 1M x 36 | (1) 2M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 13MB | (1) 256K x | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 14MB | (1) 2M x 36 | (1) 512K x | (1) 512K x | (1) 512K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 14MB | (1) 512K x | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 4M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 1M x 36 | (1) 1M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 36 | (1) 2M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 17MB | (1) 4M x 36 | (1) 256K x | None | None |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 17MB | (1) 256K x | (1) 2M x 36 | (1) 2M x | None |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 17MB | (1) 256K x | (1) 4M x 36 | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 18MB | (1) 4M x 36 | (1) 256K x | (1) 256K x | None |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 18MB | (1) 4M x 36 | (1) 512K x | None | None |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 18MB | (1) 512K x | (1) 2M x 36 | (1) 2M x | None |
| | 36 | | 36 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 18MB | (1) 512K x | (1) 4M x 36 | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 19MB | (1) 4M x 36 | (1) 256K x | (1) 256K x | (1) 256K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 4M x 36 | (1) 512K x | (1) 512K x | None |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 4M x 36 | (1) 1M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 20MB | (1) 1M x 36 | (1) 4M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 22MB | (1) 4M x 36 | (1) 512K x | (1) 512K x | (1) 512K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 36 | (1) 4M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 25MB | (1) 256K x | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 26MB | (1) 512K x | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 4M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 28MB | (1) 1M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 8M x 36 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 2M x 36 | (1) 2M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 36 | (1) 4M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 33MB | (1) 8M x 36 | (1) 256K x | None | None |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 33MB | (1) 256K x | (1) 4M x 36 | (1) 4M x | None |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 33MB | (1) 256K x | (1) 8M x 36 | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 34MB | (1) 8M x 36 | (1) 256K x | (1) 256K x | None |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 34MB | (1) 8M x 36 | (1) 512K x | None | None |
| | | 36 | | |
|------+-------------+-------------+------------+------------|
| 34MB | (1) 512K x | (1) 4M x 36 | (1) 4M x | None |
| | 36 | | 36 | |
|------+-------------+-------------+------------+------------|
| 34MB | (1) 512K x | (1) 8M x 36 | None | None |
| | 36 | | | |
|------+-------------+-------------+------------+------------|
| 35MB | (1) 8M x 36 | (1) 256K x | (1) 256K x | (1) 256K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 8M x 36 | (1) 512K x | (1) 512K x | None |
| | | 36 | 36 | |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 8M x 36 | (1) 1M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 36MB | (1) 1M x 36 | (1) 8M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 38MB | (1) 8M x 36 | (1) 512K x | (1) 512K x | (1) 512K x |
| | | 36 | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 8M x 36 | (1) 1M x 36 | (1) 1M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 8M x 36 | (1) 2M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 2M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 2M x 36 | (1) 8M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 44MB | (1) 8M x 36 | (1) 1M x 36 | (1) 1M x | (1) 1M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 8M x 36 | (1) 2M x 36 | (1) 2M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
|------+-------------+-------------+------------+------------|
| 48MB | (1) 4M x 36 | (1) 8M x 36 | None | None |
|------+-------------+-------------+------------+------------|
| 49MB | (1) 256K x | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 50MB | (1) 512K x | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | 36 | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 52MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 56MB | (1) 8M x 36 | (1) 2M x 36 | (1) 2M x | (1) 2M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 56MB | (1) 2M x 36 | (1) 4M x 36 | (1) 4M x | (1) 4M x |
| | | | 36 | 36 |
|------+-------------+-------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 4M x 36 | (1) 4M x | None |
| | | | 36 | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 8M x 36 | (1) 8M x | None | None |
| | | 36 | | |
|-------+-------------+------------+------------+------------|
| 64MB | (1) 4M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 65MB | (1) 256K x | (1) 8M x | (1) 8M x | None |
| | 36 | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 66MB | (1) 512K x | (1) 8M x | (1) 8M x | None |
| | 36 | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 68MB | (1) 1M x 36 | (1) 8M x | (1) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 72MB | (1) 2M x 36 | (1) 8M x | (1) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 8M x 36 | (1) 4M x | (1) 4M x | (1) 4M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 80MB | (1) 4M x 36 | (1) 8M x | (1) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 96MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | None |
| | | 36 | 36 | |
|-------+-------------+------------+------------+------------|
| 97MB | (1) 256K x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 36 | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 98MB | (1) 512K x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 36 | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 100MB | (1) 1M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 104MB | (1) 2M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 112MB | (1) 4M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
|-------+-------------+------------+------------+------------|
| 128MB | (1) 8M x 36 | (1) 8M x | (1) 8M x | (1) 8M x |
| | | 36 | 36 | 36 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 128KB | (4) 32K x 8 | None |
|------------------+--------------------+--------------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J52 | J53 | J58 |
|---------+-------------------+-------------------+----------|
| 128KB | Pins 1 & 2 closed | Pins 2 & 3 closed | Open |
|---------+-------------------+-------------------+----------|
| 256KB | Pins 2 & 3 closed | Pins 1 & 2 closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
| Speed | J40 | J45 |
|-------------------+-------------------+--------------------|
| 25MHz | Open | Pins 2 & 3 closed |
|-------------------+-------------------+--------------------|
| 33MHz | Closed | Pins 1 & 2 closed |
|-------------------+-------------------+--------------------|
| 50iMHz | Open | Pins 2 & 3 closed |
|-------------------+-------------------+--------------------|
| 66iMHz | Closed | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE SELECTION |
|------------------------------------------------------------|
| Type | J71 |
|----------------------------+-------------------------------|
| 80486SX | Pins 2 & 3 closed |
|----------------------------+-------------------------------|
| 80486DX | Pins 1 & 2, 3 & 4 closed |
|----------------------------+-------------------------------|
| 80486DX2 | Pins 1 & 2, 3 & 4 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | W6 | W7 |
|------------------+--------------------+--------------------|
| 1 | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 3 | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| IDE DMA CHANNEL SELECTION |
|------------------------------------------------------------|
| Channel | W11 | W12 |
|------------------+--------------------+--------------------|
| 6 | Pins 1 & 2 closed | Pins 1 & 2 closed |
|------------------+--------------------+--------------------|
| 7 | Pins 2 & 3 closed | Pins 2 & 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIRQ SELECTION |
|------------------------------------------------------------|
|DIRQ | J13 | J20 | J23 | J24 | J25 | J26 | J35 |
|-----+-------+-------+-------+-------+-------+-------+------|
| 3 | Open | Open | Open | Open |Closed | Open | Open |
|-----+-------+-------+-------+-------+-------+-------+------|
| 4 | Open | Open | Open |Closed | Open | Open | Open |
|-----+-------+-------+-------+-------+-------+-------+------|
| 5 | Open | Open | Open | Open | Open |Closed | Open |
|-----+-------+-------+-------+-------+-------+-------+------|
| 6 | Open | Open |Closed | Open | Open | Open | Open |
|-----+-------+-------+-------+-------+-------+-------+------|
| 7 | Open |Closed | Open | Open | Open | Open | Open |
|-----+-------+-------+-------+-------+-------+-------+------|
| 10 |Closed | Open | Open | Open | Open | Open | Open |
|-----+-------+-------+-------+-------+-------+-------+------|
| 14 | Open | Open | Open | Open | Open | Open |Closed|
+------------------------------------------------------------+
