# MEMOREX TELEX CORPORATION
7065
Processor 80386SX
Processor Speed 16MHz
Chip Set Unidentified
Video Chip Set None
Maximum Onboard 8MB
Memory
Maximum Video None
Memory
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, parallel port, serial
ports (2)
NPU Options 80387SX

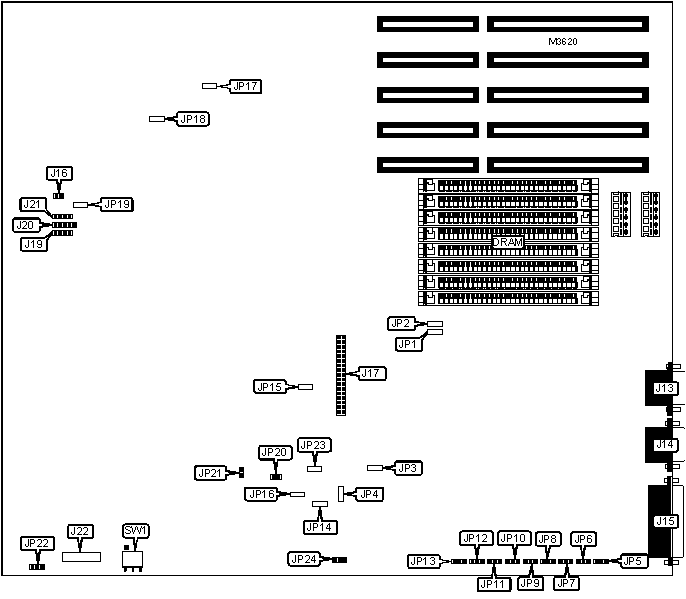

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Serial port 2 | J13 | Speaker | J19 |
|-------------------+----------+------------------+----------|
| Serial port 1 | J14 | Power LED & | J20 |
| | | keylock | |
|-------------------+----------+------------------+----------|
| Parallel port | J15 | External battery | J21 |
|-------------------+----------+------------------+----------|
| Reset switch | J16 | Keyboard | J22 |
| | | connector | |
|-------------------+----------+------------------+----------|
| Floppy drive | J17 | | |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | JP1 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP2 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Parallel port IRQ select IRQ7 | JP5 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Parallel port IRQ select IRQ5 | JP5 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Serial port 2 IRQ select IRQ3 | JP6 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Serial port 2 IRQ select IRQ4 | JP6 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Serial port 1 IRQ select IRQ4 | JP7 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Serial port 1 IRQ select IRQ3 | JP7 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Parallel port address select | JP8 | Pins 2 & 3 |
| | 378h | | closed |
|---+---------------------------------+-------+--------------|
| | Parallel port address select | JP8 | Pins 1 & 2 |
| | 278h | | closed |
|---+---------------------------------+-------+--------------|
| » | Serial port 2 address select | JP9 | Pins 1 & 2 |
| | 2F8h | | closed |
|---+---------------------------------+-------+--------------|
| | Serial port 2 address select | JP9 | Pins 2 & 3 |
| | 3F8h | | closed |
|---+---------------------------------+-------+--------------|
| » | Serial port 1 address select | JP10 | Pins 2 & 3 |
| | 3F8h | | closed |
|---+---------------------------------+-------+--------------|
| | Serial port 1 address select | JP10 | Pins 1 & 2 |
| | 2F8h | | closed |
|---+---------------------------------+-------+--------------|
| » | IDE interface not installed | JP11 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | IDE interface installed | JP11 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Floppy drive interface enabled | JP12 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Floppy drive interface disabled | JP12 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Floppy drive address select | JP13 | Pins 2 & 3 |
| | 3FXh | | closed |
|---+---------------------------------+-------+--------------|
| | Floppy drive address select | JP13 | Pins 1 & 2 |
| | 37Xh | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP14 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP15 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP16 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP17 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP18 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP19 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP22 | Pins 2 & 3 |
| | alter (8042 test select) | | closed |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP23 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | NPU not installed | JP24 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | NPU installed | JP24 | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Monitor type select monochrome | SW1 | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Monitor type select color | SW1 | Pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | None |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | None |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------------------------------------------------|
| Note: The location of banks 0 & 1 are unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| I/O EXPANSION SLOT SPEED SELECTION |
|------------------------------------------------------------|
| Speed | JP20 | JP21 |
|-------------------+--------------------+-------------------|
| 8MHz | Closed | Open |
|-------------------+--------------------+-------------------|
| 10MHz | Open | Closed |
+------------------------------------------------------------+
