# MOTOROLA, INC.
ATLAS 603, ATLAS 603E, ATLAS 604
Processor Motorola PowerPC 603/PowerPC 603e/PowerPC 604
Processor Speed Unidentified
NPU Options N/A
Chipset Intel
SCSI Chipset NCR
Maximum Onboard Unidentified
Memory
Cache Unidentified
BIOS Unidentified
I/O Options 32-bit PCI slots (3), cache slot, PS/2
keyboard port, PS/2 mouse port, floppy drive
interface, IDE interface, SCSI interface,
parallel port, serial ports (2)
Dimensions 330 x 218mm
IMG IMG 1
+------------------------------------------------------------+

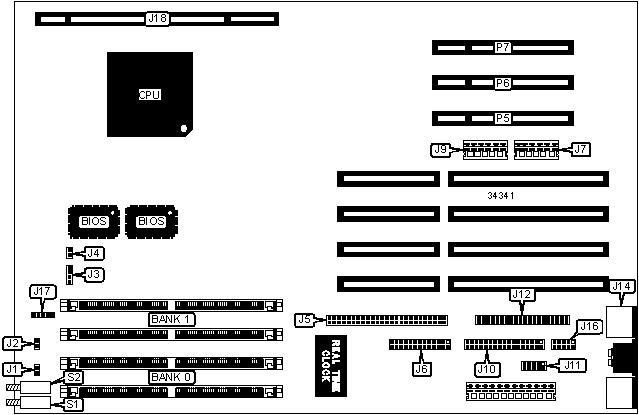

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|----------------------+-------+---------------------+-------|
| Header for Reset and | J1 | Serial port 2 | J11 |
| Abort switches | | | |
|----------------------+-------+---------------------+-------|
| IDE/SCSI interface | J2 | IDE interface | J12 |
| LED | | | |
|----------------------+-------+---------------------+-------|
| Speaker | J3 | PS/2 mouse | J14 |
| | | interface | |
|----------------------+-------+---------------------+-------|
| Chassis fan power | J4 | Serial port 1 | J16 |
|----------------------+-------+---------------------+-------|
| SCSI interface | J5 | Power LED & keylock | J17 |
|----------------------+-------+---------------------+-------|
| Parallel port | J6 | Cache slot | J18 |
|----------------------+-------+---------------------+-------|
| 3.3VDC power in | J7 | 32-bit PCI slots 3 | P5 - |
| | | through 1 | P7 |
|----------------------+-------+---------------------+-------|
| 3.3VDC power in | J9 | Abort switch | S1 |
|----------------------+-------+---------------------+-------|
| Floppy drive | J10 | Reset switch | S2 |
| interface | | | |
|------------------------------------------------------------|
| Note:S1 and S2 may not be present on all models. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| The DRAM configuration is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|-------+---------+---------+--------------------------------|
| BEAT | Yellow | On | CPU is executing an |
| | | | instruction |
|-------+---------+---------+--------------------------------|
| BEAT | Yellow | Off | CPU is idle |
|-------+---------+---------+--------------------------------|
| DSK | Green | On | IDE or SCSI bus is active |
|-------+---------+---------+--------------------------------|
| DSK | Green | Off | IDE and SCSI busses are idle |
|-------+---------+---------+--------------------------------|
| PWR | Green | On | Board is receiving +5VDC |
|-------+---------+---------+--------------------------------|
| PWR | Green | Off | Board is not receiving +5VDC |
|------------------------------------------------------------|
| Note:The exact locations of the LEDs are |
| unidentified. |
+------------------------------------------------------------+
