# MICRO-STAR INTERNATIONAL CO., LTD.
MS-6113
Device Type Mainboard
Processor Pentium II
Processor Speed 200/233/266/300/333MHz
Chip Set Intel
Video Chip Set None
Maximum Onboard 768MB (EDO & SDRAM supported)
Memory
Maximum Video None
Memory
Cache 256/512KB (located on Pentium II CPU)
BIOS Unidentified
Dimensions 330mm x 218mm
I/O Options Ethernet 10BaseT connector, game/MIDI port,
parallel port, PS/2 mouse port, serial ports
(2), USB connectors (2), AGP slot, line in,
speaker out, microphone in, wavetable
connector
NPU Options None

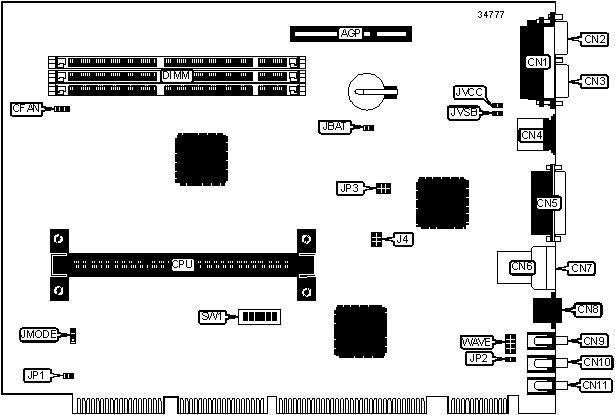

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| AGP slot | AGP | USB connector 1 | CN6 |
|-----------------+----------+--------------------+----------|
| CPU fan power | CFAN | USB connector 2 | CN7 |
|-----------------+----------+--------------------+----------|
| Parallel port | CN1 | Ethernet 10BaseT | CN8 |
| | | connector | |
|-----------------+----------+--------------------+----------|
| Serial port 2 | CN2 | Microphone in | CN9 |
|-----------------+----------+--------------------+----------|
| Serial port 1 | CN3 | Line in | CN10 |
|-----------------+----------+--------------------+----------|
| PS/2 mouse port | CN4 | Speaker out | CN11 |
|-----------------+----------+--------------------+----------|
| Game/MIDI port | CN5 | Wavetable | WAVE |
| | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|-------------------------------------+-------+--------------|
| » | Factory configured - do not | J4 | Unidentified |
| | alter | | |
|---+---------------------------------+-------+--------------|
| » | CMOS memory normal operation | JBAT | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | CMOS memory clear | JBAT | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| » | Flash BIOS voltage select 12v | JMODE | Pins 1 & 2 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Flash BIOS voltage select 5v | JMODE | Pins 2 & 3 |
| | | | closed |
|---+---------------------------------+-------+--------------|
| | Power on mode select boot up by | JP1 | Closed |
| | switch | | |
|---+---------------------------------+-------+--------------|
| | Power on mode select immediate | JP1 | Open |
| | boot up | | |
|---+---------------------------------+-------+--------------|
| | Speaker amplify enabled | JP2 | Closed |
|---+---------------------------------+-------+--------------|
| | Speaker amplify disabled | JP2 | Open |
|---+---------------------------------+-------+--------------|
| » | Factory configured - do not | JP3 | Unidentified |
| | alter | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 8MB | (1) 1M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 2M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 4M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 40MB | (1) 2M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 48MB | (1) 4M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 48MB | (1) 2M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 56MB | (1) 4M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 8M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 64MB | (1) 4M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 72MB | (1) 8M x 64 | (1) 1M x 64 | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 |
|------------+---------------+---------------+---------------|
| 72MB | (1) 4M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 80MB | (1) 8M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 80MB | (1) 4M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 88MB | (1) 8M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 96MB | (1) 8M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 96MB | (1) 4M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 104MB | (1) 8M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 112MB | (1) 8M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 16M x 64 | None | None |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 128MB | (1) 8M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 136MB | (1) 16M x 64 | (1) 1M x 64 | None |
|------------+---------------+---------------+---------------|
| 136MB | (1) 8M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 1M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 144MB | (1) 16M x 64 | (1) 2M x 64 | None |
|------------+---------------+---------------+---------------|
| 144MB | (1) 8M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 152MB | (1) 16M x 64 | (1) 2M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 2M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 160MB | (1) 16M x 64 | (1) 4M x 64 | None |
|------------+---------------+---------------+---------------|
| 160MB | (1) 8M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 168MB | (1) 16M x 64 | (1) 4M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 176MB | (1) 16M x 64 | (1) 4M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 4M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 192MB | (1) 16M x 64 | (1) 8M x 64 | None |
|------------+---------------+---------------+---------------|
| 192MB | (1) 8M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 200MB | (1) 16M x 64 | (1) 8M x 64 | (1) 1M x 64 |
|------------+---------------+---------------+---------------|
| 208MB | (1) 16M x 64 | (1) 8M x 64 | (1) 2M x 64 |
|------------+---------------+---------------+---------------|
| 224MB | (1) 16M x 64 | (1) 8M x 64 | (1) 4M x 64 |
|------------+---------------+---------------+---------------|
| 256MB | (1) 16M x 64 | (1) 8M x 64 | (1) 8M x 64 |
|------------+---------------+---------------+---------------|
| 384MB | (1) 16M x 64 | (1) 16M x 64 | (1) 16M x 64 |
|------------+---------------+---------------+---------------|
| 512MB | (1) 32M x 64 | (1) 32M x 64 | None |
|------------+---------------+---------------+---------------|
| 768MB | (1) 32M x 64 | (1) 32M x 64 | (1) 32M x 64 |
|------------------------------------------------------------|
| Note: Board accepts EDO & SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU BUS SPEED SELECTION |
|------------------------------------------------------------|
| Speed | SW1/5 | SW1/6 |
|--------------------+-------------------+-------------------|
| 66.8MHz | Off | Off |
|--------------------+-------------------+-------------------|
| 68.5MHz | Off | On |
|--------------------+-------------------+-------------------|
| 75MHz | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU MULTIPLIER SELECTION |
|------------------------------------------------------------|
| Multiplier | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
|------------+-----------+-----------+-----------+-----------|
| 2.5x | On | Off | On | On |
|------------+-----------+-----------+-----------+-----------|
| 3x | On | On | Off | On |
|------------+-----------+-----------+-----------+-----------|
| 3.5x | On | Off | Off | On |
|------------+-----------+-----------+-----------+-----------|
| 4x | On | On | On | Off |
|------------+-----------+-----------+-----------+-----------|
| 4.5x | On | Off | On | Off |
|------------+-----------+-----------+-----------+-----------|
| 5x | On | On | Off | Off |
|------------+-----------+-----------+-----------+-----------|
| 5.5x | On | Off | Off | Off |
|------------+-----------+-----------+-----------+-----------|
| 6x | Off | On | On | On |
|------------+-----------+-----------+-----------+-----------|
| 6.5x | Off | Off | On | On |
|------------+-----------+-----------+-----------+-----------|
| 7x | Off | On | Off | On |
|------------+-----------+-----------+-----------+-----------|
| 7.5x | Off | Off | Off | On |
|------------+-----------+-----------+-----------+-----------|
| 8x | Off | On | On | Off |
+------------------------------------------------------------+
+------------------------------------------------------------+
| KEYBOARD POWER ON SELECTION |
|------------------------------------------------------------|
| Setting | JVCC | JVSB |
|--------------------+-------------------+-------------------|
| Enabled | Open | Closed |
|--------------------+-------------------+-------------------|
| Disabled | Closed | Open |
+------------------------------------------------------------+
