# PACKARD BELL
286X PWB-2149 (FORCE 1/AXCEL 1+/
PB286N/LEGEND IV/PACK-MATE III)
Processor 80286
Processor Speed 12/16MHz
Chip Set TI
Max. Onboard 4MB
DRAM
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options Parallel port, serial ports (2), PS/2 mouse
port, floppy drive interface, IDE interface
NPU Options 80287

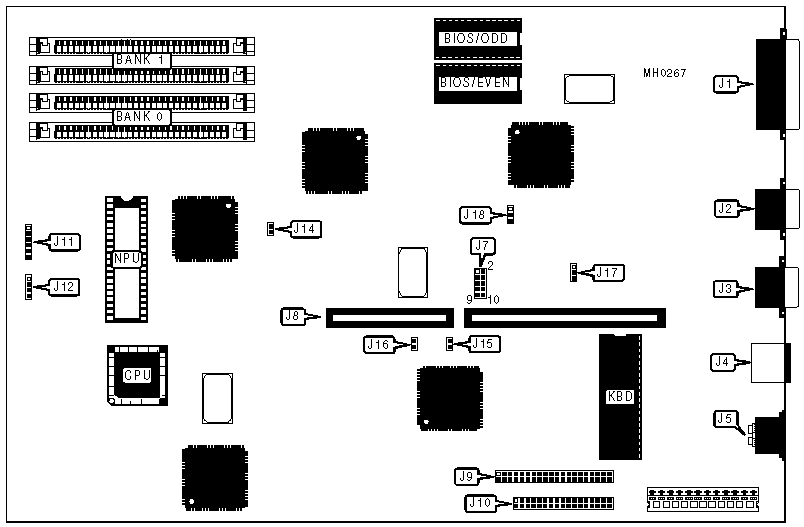

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|------------------+----------+------------------+-----------|
| Parallel port | J1 | Reset switch | J11/pin 1 |
|------------------+----------+------------------+-----------|
| Serial port | J2 | Turbo switch | J11/pin 2 |
| (COM2) | | | |
|------------------+----------+------------------+-----------|
| Serial port | J3 | Power ready | J11/pin 3 |
| (COM1) | | | |
|------------------+----------+------------------+-----------|
| PS/2 mouse port | J4 | IDE LED | J11/pin 4 |
|------------------+----------+------------------+-----------|
| Keyboard | J5 | Turbo LED | J11/pin 5 |
|------------------+----------+------------------+-----------|
| Expansion slot | J8 | Ground | J11/pin 6 |
| card | | | |
|------------------+----------+------------------+-----------|
| IDE interface | J9 | External battery | J12 |
|------------------+----------+------------------+-----------|
| Floppy interface | J10 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|-------------------------------------+--------+-------------|
| » | Monitor type select color | J7 | pins 1 & 2 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | Monitor type select monochrome | J7 | pins 1 & 2 |
| | | | open |
|---+---------------------------------+--------+-------------|
| » | Floppy drive enabled | J7 | pins 3 & 4 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | Floppy drive disabled | J7 | pins 3 & 4 |
| | | | open |
|---+---------------------------------+--------+-------------|
| » | IDE enabled | J7 | pins 5 & 6 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | IDE disabled | J7 | pins 5 & 6 |
| | | | open |
|---+---------------------------------+--------+-------------|
| » | COM1 (J3) enabled | J7 | pins 7 & 8 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | COM1 (J3) disabled | J7 | pins 7 & 8 |
| | | | open |
|---+---------------------------------+--------+-------------|
| » | COM2 (J2) enabled | J7 | pins 9 & 10 |
| | | | closed |
|---+---------------------------------+--------+-------------|
| | COM2 (J2) disabled | J7 | pins 9 & 10 |
| | | | open |
|---+---------------------------------+--------+-------------|
| » | DRAM select 0 wait states | J14 | Closed |
|---+---------------------------------+--------+-------------|
| | DRAM select 1 wait state | J14 | Open |
|---+---------------------------------+--------+-------------|
| » | DRAM module type select 256K x | J15 | Closed |
| | 9 | | |
|---+---------------------------------+--------+-------------|
| | DRAM module type select 1M x 9 | J15 | Open |
|---+---------------------------------+--------+-------------|
| » | 384KB relocation enabled | J16 | Open |
|---+---------------------------------+--------+-------------|
| | 384KB relocation disabled | J16 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (2) 256K x 9 | (2) 256K x 9 |
|------------------+--------------------+--------------------|
| 2MB | (2) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (2) 1M x 9 | (2) 1M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PARALLEL PORT IRQ CONFIGURATION |
|------------------------------------------------------------|
| IRQ | J17 | J18 |
|------------------+--------------------+--------------------|
| LPT1 at IRQ7 | pins 1 & 2 closed | pins 2 & 3 closed |
|------------------+--------------------+--------------------|
| LPT2 at IRQ5 | pins 2 & 3 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
