80386 WRITE BACK CACHE
Processor 80386DX
Processor Speed 33/40MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 256KB
BIOS AMI
Dimensions 355mm x 304mm
I/O Options 32-bit external memory card slot
NPU Options 80387/3167

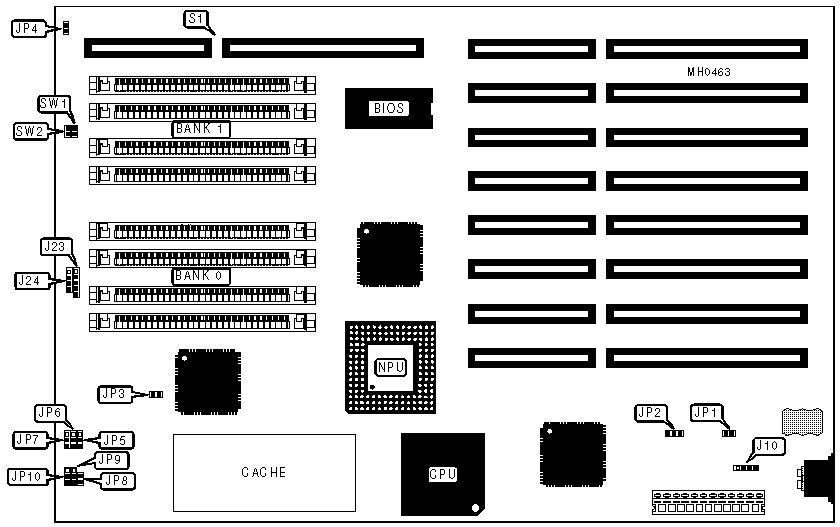

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|--------------+----------+-----------------------+----------|
| Turbo LED | JP4 | Power LED & keylock | J23 |
|--------------+----------+-----------------------+----------|
| Reset switch | SW1 | Speaker | J24 |
|--------------+----------+-----------------------+----------|
| Turbo switch | SW2 | 32-bit external | S1 |
| | | memory card | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Battery select internal | J10 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Battery select external | J10 | Closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP1 | Open |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP2 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP2 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Bus speed select ATCLK/6 | JP3 | Open |
|---+--------------------------------+--------+--------------|
| | Bus speed select ATCLK/8 | JP3 | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 1MB | (4) 256K x | NONE | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 2MB | (4) 256K x | (4) 256K x | NONE | NONE |
| | 9 | 9 | | |
|------+-------------+-------------+------------+------------|
| 4MB | (4) 1M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 5MB | (4) 256K x | (4) 1 M x 9 | NONE | NONE |
| | 9 | | | |
|------+-------------+-------------+------------+------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 12MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 16MB | (4) 4M x 9 | NONE | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 20MB | (4) 4M x 9 | (4) 1M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 24MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 28MB | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 | NONE | NONE |
|------+-------------+-------------+------------+------------|
| 36MB | (4) 4M x 9 | (4) 1M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 40MB | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 48MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | NONE |
|------+-------------+-------------+------------+------------|
| 52MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 1M x 9 |
|------+-------------+-------------+------------+------------|
| 64MB | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|-------------+---------------+---------------+--------------|
| 32KB | (4) 8K x 8 | NONE | 2K x 9 |
|-------------+---------------+---------------+--------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | 4K x 9 |
|-------------+---------------+---------------+--------------|
| 128KB | (4) 32K x 8 | NONE | 8K x 9 |
|-------------+---------------+---------------+--------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | 16K x 9 |
|------------------------------------------------------------|
| Note:The location of cache chips is unidentified. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP5 | JP6 | JP7 | JP8 | JP9 | JP10 |
|--------+--------+--------+--------+--------+-------+-------|
| 32KB | 1 & 2 | 1 & 2 | 1 & 2 | Open | 2 & 3 | 2 & 3 |
|--------+--------+--------+--------+--------+-------+-------|
| 64KB | 2 & 3 | 1 & 2 | 1 & 2 | Open | 2 & 3 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 128KB | 2 & 3 | 1 & 2 | 2 & 3 | Closed | 2 & 3 | 1 & 2 |
|--------+--------+--------+--------+--------+-------+-------|
| 256KB | 2 & 3 | 2 & 3 | 2 & 3 | Closed | 1 & 2 | 1 & 2 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
