# REPLY CORPORATION
PS/2 MODEL 70
Processor 80486SX/80487SX/80486DX/80486DX2
Processor 33/66(internal)MHz
Speed
Chip Set Galaxy
Max. Onboard 32MB
DRAM
Cache None
BIOS Reply
Dimensions 330mm x 218mm
I/O Options Parallel port, PS/2 mouse port, serial port, VGA
port
NPU Options None

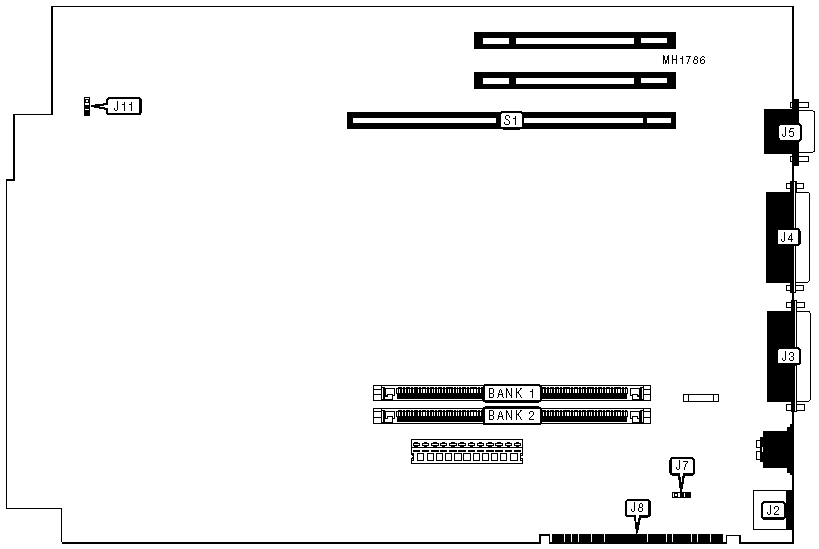

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-----------------+----------+--------------------+----------|
| PS/2 mouse port | J2 | Power supply | J8 |
| | | connector | |
|-----------------+----------+--------------------+----------|
| VGA port | J3 | Speaker | J11 |
|-----------------+----------+--------------------+----------|
| Parallel port | J4 | MCA feature | S1 |
| | | connector | |
|-----------------+----------+--------------------+----------|
| Serial port | J5 | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|----------------------------------+--------+----------------|
| ยป | CMOS memory normal operation | J7 | pins 2 & 3 |
| | | | closed |
|---+------------------------------+--------+----------------|
| | CMOS memory clear | J7 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 1 | Bank 2 |
|------------------+--------------------+--------------------|
| 4MB | (2) 4M x 9 | (2) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (2) 8M x 9 | (2) 8M x 9 |
+------------------------------------------------------------+
