# PC WARE INTERNATIONAL, INC.
MA405DC
Processor 80486SX/80487SX/80486DX
Processor Speed 25/33/40/50MHz
Chip Set ACC Micro
Max. Onboard DRAM 32MB
Cache 32/64/128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options None

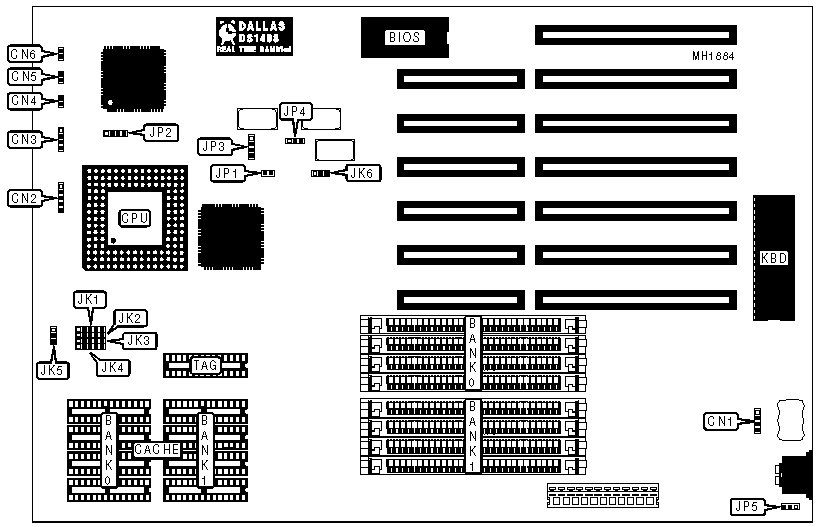

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+----------+----------------+----------|
| External battery | CN1 | Turbo switch | CN4 |
|---------------------+----------+----------------+----------|
| Power LED & keylock | CN2 | Reset switch | CN5 |
|---------------------+----------+----------------+----------|
| Speaker | CN3 | Turbo LED | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Cache enabled | JP1 | Closed |
|---+--------------------------------+--------+--------------|
| | Cache disabled | JP1 | Open |
|---+--------------------------------+--------+--------------|
| » | 16mhz Oscillator not installed | JP4 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | 16MHz Oscillator installed | JP4 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| » | Monitor type select color | JP5 | pins 2 & 3 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | Monitor type select monochrome | JP5 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 32KB | (4) 8K x 8 | NONE | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 32K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JK1 | JK2 | JK3 | JK4 | JK5 | JK6 |
|-------+----------+------+------+---------+--------+--------|
| 32KB | 1 & 2, 3 | 1 & | 1 & | 1 & 2, | pins 1 | pins 1 |
| | & 4 | 2, 3 | 2, 3 | 3 & 4 | & 2 | & 2 |
| | | & 4 | & 4 | | | |
|-------+----------+------+------+---------+--------+--------|
| 64KB | 1 & 2, 3 | 2 & | 1 & | 1 & 2, | pins 1 | pins 1 |
| | & 4 | 3, 4 | 2, 3 | 3 & 4 | & 2 | & 2 |
| | | & 5 | & 4 | | | |
|-------+----------+------+------+---------+--------+--------|
| 128KB | 2 & 3, 4 | 1 & | 1 & | 1 & 2, | pins 1 | pins 1 |
| | & 5 | 2, 4 | 2, 3 | 3 & 4 | & 2 | & 2 |
| | | & 5 | & 4 | | | |
|-------+----------+------+------+---------+--------+--------|
| 256KB | 2 & 3, 4 | 2 & | 2 & | Closed | pins 1 | pins 2 |
| | & 5 | 3, 4 | 3, 4 | | & 2 | & 3 |
| | | & 5 | & 5 | | | |
|------------------------------------------------------------|
| Note:Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JP2 | JP3 |
|----------+-------------------+-----------------------------|
| 80486SX | pins 2 & 3 closed | pins 2 & 3 closed |
|----------+-------------------+-----------------------------|
| 80487SX | pins 1 & 2 closed | pins 1 & 2 and 3 & 4 closed |
|----------+-------------------+-----------------------------|
| 80486DX | pins 3 & 4 closed | pins 1 & 2 and 3 & 4 closed |
+------------------------------------------------------------+
