# QDI COMPUTER, INC.
P6I440BX/D
Device Type Mainboard
Processor Pentium II
Processor Speed 233/266/300/333/350/400/450MHz
Chip Set Intel 440BX
Maximum Onboard 1GB (SDRAM supported)
Memory
Cache 256/512KB (located on the Pentium II CPU)
BIOS Award
Dimensions 305mm x 310mm
I/O Options 32-bit PCI slots (4), floppy drive interface,
green PC connector, IDE interfaces (2),
parallel port, PS/2 mouse port, serial ports
(2), IR connector, USB connectors (2), ATX
power connector, AGP slot, RAID slot, wake on
modem connector
IMG IMG 1
+------------------------------------------------------------+

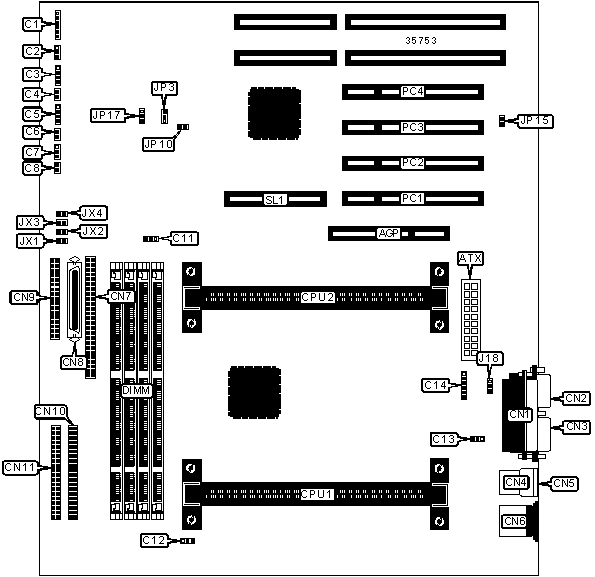

| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| AGP slot | AGP | Parallel port | CN1 |
|-------------------+----------+------------------+----------|
| ATX power | ATX | Serial port | CN2 |
| connector | | | |
|-------------------+----------+------------------+----------|
| IR connector | C1 | Serial port | CN3 |
|-------------------+----------+------------------+----------|
| Bak fan power | C2 | USB connector 1 | CN4 |
|-------------------+----------+------------------+----------|
| IDE interface LED | C3 | USB connector 2 | CN5 |
|-------------------+----------+------------------+----------|
| Reset switch | C4 | PS/2 mouse port | CN6 |
|-------------------+----------+------------------+----------|
| Speaker | C5 | SCSI interface | CN7 |
|-------------------+----------+------------------+----------|
| Power LED & | C6 | Ultra Wide SCSI | CN8 |
| keylock | | interface | |
|-------------------+----------+------------------+----------|
| Green PC LED | C7 | Floppy drive | CN9 |
| | | interface | |
|-------------------+----------+------------------+----------|
| Green PC | C8 | IDE interface | CN10 |
| connector | | | |
|-------------------+----------+------------------+----------|
| CPU fan power | C11 | IDE interface | CN11 |
|-------------------+----------+------------------+----------|
| Chassis fan power | C12 | Chassis | J18 |
| | | intrusion | |
| | | connector | |
|-------------------+----------+------------------+----------|
| Wake on modem | C13 | 32-bit PCI slots | PC1 – |
| connector | | | PC4 |
|-------------------+----------+------------------+----------|
| 1/2 ATX power | C14 | RAID slot | SL1 |
| connector | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| » | CMOS memory normal operation | JP3 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CMOS memory clear | JP3 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| » | On board LAN enabled | JP10 | Closed |
|---+------------------------------+-------+-----------------|
| | On board LAN disabled | JP10 | Open |
|---+------------------------------+-------+-----------------|
| » | On board SCSI enabled | JP15 | Closed |
|---+------------------------------+-------+-----------------|
| | On board SCSI disabled | JP15 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|------+-------------+-------------+------------+------------|
| 8MB | (1) 1M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 2M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 16MB | (1) 1M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 2M x 64 | (1) 1M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 24MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | None |
| | | | 64 | |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 4M x 64 | None | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 2M x 64 | (1) 2M x 64 | None | None |
|------+-------------+-------------+------------+------------|
| 32MB | (1) 1M x 64 | (1) 1M x 64 | (1) 1M x | (1) 1M x |
| | | | 64 | 64 |
|------+-------------+-------------+------------+------------|
| 40MB | (1) 4M x 64 | (1) 1M x 64 | None | None |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIMM CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
|--------+------------+------------+------------+------------|
| 48MB | (1) 4M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 48MB | (1) 2M x | (1) 2M x | (1) 2M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 64MB | (1) 2M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 64MB | (1) 8M x | None | None | None |
| | 64 | | | |
|--------+------------+------------+------------+------------|
| 64MB | (1) 4M x | (1) 4M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 72MB | (1) 8M x | (1) 1M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 80MB | (1) 8M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 96MB | (1) 8M x | (1) 4M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 96MB | (1) 4M x | (1) 4M x | (1) 4M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 128MB | (1) 16M x | None | None | None |
| | 64 | | | |
|--------+------------+------------+------------+------------|
| 128MB | (1) 8M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 128MB | (1) 4M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 136MB | (1) 16M x | (1) 1M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 144MB | (1) 16M x | (1) 2M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 152MB | (1) 16M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 160MB | (1) 16M x | (1) 4M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 176MB | (1) 16M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 192MB | (1) 16M x | (1) 8M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 192MB | (1) 8M x | (1) 8M x | (1) 8M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 224MB | (1) 16M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 256MB | (1) 32M x | None | None | None |
| | 64 | | | |
|--------+------------+------------+------------+------------|
| 256MB | (1) 16M x | (1) 16M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 256MB | (1) 8M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 272MB | (1) 16M x | (1) 16M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 280MB | (1) 32M x | (1) 1M x | (1) 1M x | (1) 1M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 304MB | (1) 32M x | (1) 2M x | (1) 2M x | (1) 2M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 320MB | (1) 16M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 352MB | (1) 32M x | (1) 4M x | (1) 4M x | (1) 4M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 384MB | (1) 16M x | (1) 16M x | (1) 16M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 448MB | (1) 32M x | (1) 8M x | (1) 8M x | (1) 8M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 512MB | (1) 32M x | (1) 32M x | None | None |
| | 64 | 64 | | |
|--------+------------+------------+------------+------------|
| 512MB | (1) 16M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 640MB | (1) 32M x | (1) 16M x | (1) 16M x | (1) 16M x |
| | 64 | 64 | 64 | 64 |
|--------+------------+------------+------------+------------|
| 768MB | (1) 32M x | (1) 32M x | (1) 32M x | None |
| | 64 | 64 | 64 | |
|--------+------------+------------+------------+------------|
| 1024MB | (1) 32M x | (1) 32M x | (1) 32M x | (1) 32M x |
| | 64 | 64 | 64 | 64 |
|------------------------------------------------------------|
| Note: Board accepts SDRAM memory. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Note: 256KB/512KB cache is located on the Pentium II CPU. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED SELECTION |
|------------------------------------------------------------|
|CPU speed|Clock speed|Multiplier| JX1 | JX2 | JX3 | JX4 |
|---------+-----------+----------+------+------+------+------|
| 233MHz | 66MHz | 3.5x | Open | Open |Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 266MHz | 66MHz | 4x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 300MHz | 66MHz | 4.5x | Open |Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 333MHz | 66MHz | 5x |Closed| Open | Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 350MHz | 100MHz | 3.5x | Open | Open |Closed|Closed|
|---------+-----------+----------+------+------+------+------|
| 400MHz | 100MHz | 4x |Closed|Closed| Open |Closed|
|---------+-----------+----------+------+------+------+------|
| 450MHz | 100MHz | 4.5x | Open |Closed| Open |Closed|
+------------------------------------------------------------+
+------------------------------------------------------------+
| SCSI TERMINATION SELECTION |
|------------------------------------------------------------|
| Setting | JP17 |
|-----------------------------------+------------------------|
| » | Auto termination enabled | Pins 2 & 3 closed |
|---+-------------------------------+------------------------|
| | Auto termination disabled | Open |
+------------------------------------------------------------+
