# SOYO COMPUTER CO., LTD.
386DX BOARD
Processor 80386DX
Processor Speed 33/40MHz
Chip Set ETEQ
Max. Onboard DRAM 16MB
Cache 64/128/256KB
BIOS AMI
Dimensions 330mm x 218mm
I/O Options None
NPU Options 80387/3167

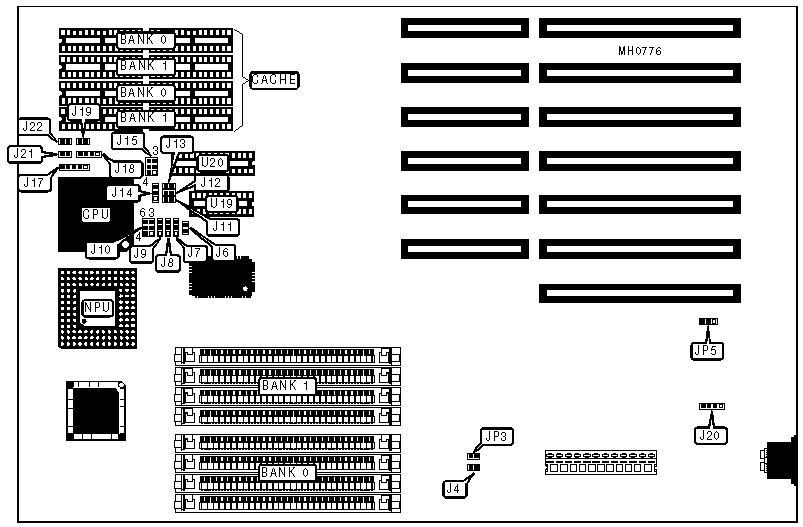

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|-------------------+----------+------------------+----------|
| Power LED & | J17 | External battery | J20 |
| keylock | | | |
|-------------------+----------+------------------+----------|
| Speaker | J18 | Turbo switch | J21 |
|-------------------+----------+------------------+----------|
| Reset switch | J19 | Turbo LED | J22 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|------------------------------------+--------+--------------|
| » | Monitor type select monochrome | JP3 | Open |
|---+--------------------------------+--------+--------------|
| | Monitor type select color | JP3 | Closed |
|---+--------------------------------+--------+--------------|
| » | CMOS memory normal operation | JP5 | pins 1 & 2 |
| | | | closed |
|---+--------------------------------+--------+--------------|
| | CMOS memory clear | JP5 | pins 2 & 3 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 17MB | (4) 256K x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | NONE | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | J4 | J6 | J7 | J8 | J9 | J10 |
|--------+--------+---------+--------+--------+-------+------|
| 64KB | Open | Open | 1 & 2 | 1 & 2 | 2 & 3 | Open |
|--------+--------+---------+--------+--------+-------+------|
| 128KB | Open | Closed | 1 & 2 | 2 & 3 | 2 & 3 | Open |
|--------+--------+---------+--------+--------+-------+------|
| 256KB | Open | Closed | 2 & 3 | 2 & 3 | 2 & 3 | Open |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION (CON’T) |
|------------------------------------------------------------|
| Size | J11 | J12 | J13 | J14 | J15 |
|----------+----------+----------+---------+--------+--------|
| 64KB | Closed | Open | Open | 1 & 2 | 1 & 2 |
|----------+----------+----------+---------+--------+--------|
| 128KB | Closed | Open | Closed | 1 & 2 | 4 & 5 |
|----------+----------+----------+---------+--------+--------|
| 256KB | Closed | Closed | Closed | 1 & 2 | 5 & 6 |
|------------------------------------------------------------|
| Note: Pins designated should be in the closed position. |
+------------------------------------------------------------+
