# SHUTTLE COMPUTER INTERNATIONAL, INC.
HOT-403H
Processor 80486SX/80487SX/80486DX/80486DX2
Processor Speed 25/33/50(internal)/50/66(internal)MHz
Chip Set OPTI
Max. Onboard DRAM 32MB
Cache 64/128/256KB
BIOS AMI
Dimensions 240mm x 220mm
I/O Options None
NPU Options None

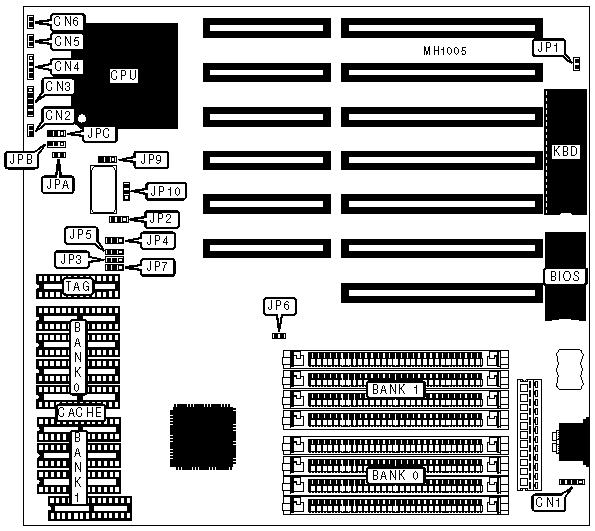

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|---------------------+-----------+---------------+----------|
| External battery | CN1 | Speaker | CN4 |
|---------------------+-----------+---------------+----------|
| Turbo LED | CN2 | Turbo switch | CN5 |
|---------------------+-----------+---------------+----------|
| Power LED & keylock | CN3 | Reset switch | CN6 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Battery type select internal | CN1 | pins 2 & 3 |
| | | | closed |
|---+----------------------------------+--------+------------|
| | Batter type select external | CN1 | Closed |
|---+----------------------------------+--------+------------|
| » | Monitor type select color | JP1 | Closed |
|---+----------------------------------+--------+------------|
| | Monitor type select monochrome | JP1 | Open |
|---+----------------------------------+--------+------------|
| » | CPU speed select iOSC/2 (See CPU | JP2 | pins 2 & 3 |
| | SPEED table below) | | closed |
|---+----------------------------------+--------+------------|
| | CPU speed select iOSC/1 (See CPU | JP2 | pins 1 & 2 |
| | SPEED table below) | | closed |
|---+----------------------------------+--------+------------|
| » | Bus speed select ATCLK/6 | JP6 | Closed |
|---+----------------------------------+--------+------------|
| | Bus speed select ATCLK/4 | JP6 | Open |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 |
|------------------+--------------------+--------------------|
| 1MB | (4) 256K x 9 | NONE |
|------------------+--------------------+--------------------|
| 2MB | (4) 256K x 9 | (4) 256K x 9 |
|------------------+--------------------+--------------------|
| 4MB | (4) 1M x 9 | NONE |
|------------------+--------------------+--------------------|
| 5MB | (4) 256K x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 8MB | (4) 1M x 9 | (4) 1M x 9 |
|------------------+--------------------+--------------------|
| 16MB | (4) 4M x 9 | NONE |
|------------------+--------------------+--------------------|
| 20MB | (4) 1M x 9 | (4) 4M x 9 |
|------------------+--------------------+--------------------|
| 32MB | (4) 4M x 9 | (4) 4M x 9 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE CONFIGURATION |
|------------------------------------------------------------|
| Size | Bank 0 | Bank 1 | TAG |
|------------+---------------+---------------+---------------|
| 64KB | (4) 8K x 8 | (4) 8K x 8 | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 128KB | (4) 32K x 8 | None | (1) 8K x 8 |
|------------+---------------+---------------+---------------|
| 256KB | (4) 32K x 8 | (4) 32K x 8 | (1) 32K x 8 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CACHE JUMPER CONFIGURATION |
|------------------------------------------------------------|
| Size | JP3 | JP4 | JP5 | JP7 |
|-------+-------------+------------+------------+------------|
| 64KB | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 | pins 2 & 3 |
| | closed | closed | closed | closed |
|-------+-------------+------------+------------+------------|
| 128KB | pins 2 & 3 | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 |
| | closed | closed | closed | closed |
|-------+-------------+------------+------------+------------|
| 256KB | pins 1 & 2 | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU TYPE CONFIGURATION |
|------------------------------------------------------------|
| Type | JPA | JPB | JPC |
|-----------+--------+-------------------+-------------------|
| 80486SX | Open | pins 1 & 2 closed | Open |
|-----------+--------+-------------------+-------------------|
| 80487SX | Closed | pins 2 & 3 closed | pins 2 & 3 closed |
|-----------+--------+-------------------+-------------------|
| 80486DX | Closed | pins 2 & 3 closed | pins 1 & 2 closed |
|-----------+--------+-------------------+-------------------|
| 80486DX2 | Closed | pins 2 & 3 closed | pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CPU SPEED CONFIGURATION |
|------------------------------------------------------------|
| Speed | JP2 | JP9 | JP10 |
|--------+-----------------+----------------+----------------|
| 25MHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 33MHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 50iMHz | pins 2 & 3 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 50MHz | pins 1 & 2 | pins 1 & 2 | pins 2 & 3 |
| | closed | closed | closed |
|--------+-----------------+----------------+----------------|
| 66iMHz | pins 2 & 3 | pins 2 & 3 | pins 1 & 2 |
| | closed | closed | closed |
+------------------------------------------------------------+
