# TULIP COMPUTERS
dc COMPACT (TC38)
Processor 80386SX
Processor 16MHz
Speed
Chip Set Intel
Max. Onboard 17MB
DRAM
Cache None
BIOS Phoenix
Dimensions 330mm x 218mm
I/O Options Floppy drive interface, IDE interface, parallel
port, riser card, serial ports (2), VGA feature
connector, VGA port
NPU Options 80387SX

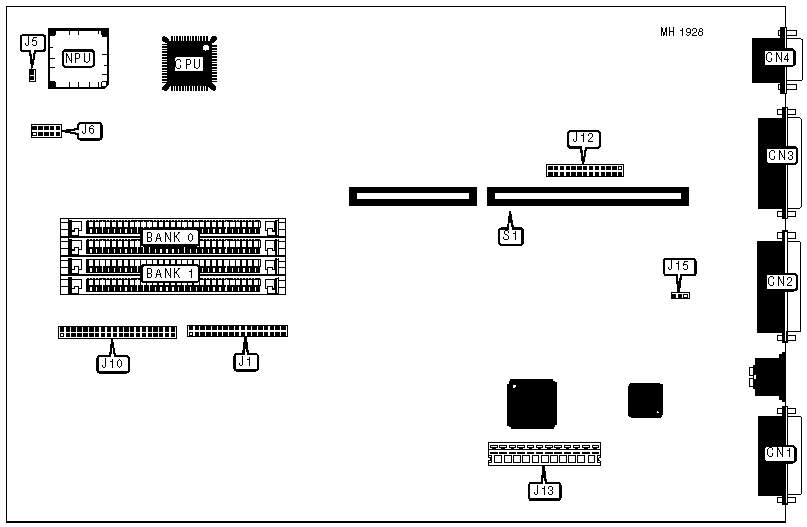

IMG IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Purpose | Location | Purpose | Location |
|----------------+----------+---------------------+----------|
| VGA port | CN1 | Flat cable LED | J6 |
| | | Speaker &batteries | |
|----------------+----------+---------------------+----------|
| Parallel port | CN2 | IDE interface | J10 |
|----------------+----------+---------------------+----------|
| Serial port | CN3 | VGA feature | J12 |
| (COM1) | | connector | |
|----------------+----------+---------------------+----------|
| Serial port | CN4 | Riser Card Slot | S1 |
| (COM2) | | | |
|----------------+----------+---------------------+----------|
| Floppy drive | J1 | | |
| interface | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Jumper | Position |
|--------------------------------------+--------+------------|
| » | Normal batteries installed | J5 | Open |
|---+----------------------------------+--------+------------|
| | Rechargeable batteries installed | J5 | Closed |
|---+----------------------------------+--------+------------|
| » | Parallel port unidirectional | J15 | pins 2 & 3 |
| | (printer) | | closed |
|---+----------------------------------+--------+------------|
| | Parallel port bidirectional | J15 | pins 1 & 2 |
| | | | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DRAM CONFIGURATION |
|------------------------------------------------------------|
| Expansion from: | Expansion to: | Bank 0 | Bank 1 |
|-----------------+---------------+-------------+------------|
| 1MB | 1MB | NONE | NONE |
|-----------------+---------------+-------------+------------|
| 1MB | 3MB | (2) 1M x 9 | NONE |
|-----------------+---------------+-------------+------------|
| 1MB | 5MB | (2) 1M x 9 | (2) 1M x 9 |
|-----------------+---------------+-------------+------------|
| 1MB | 9MB | (2) 4M x 9 | NONE |
|-----------------+---------------+-------------+------------|
| 1MB | 17MB | (2) 4M x 9 | (2) 4M x 9 |
|------------------------------------------------------------|
| Note:1MB is factory installed and is not configurable. |
+------------------------------------------------------------+
